Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Big Block Chevy

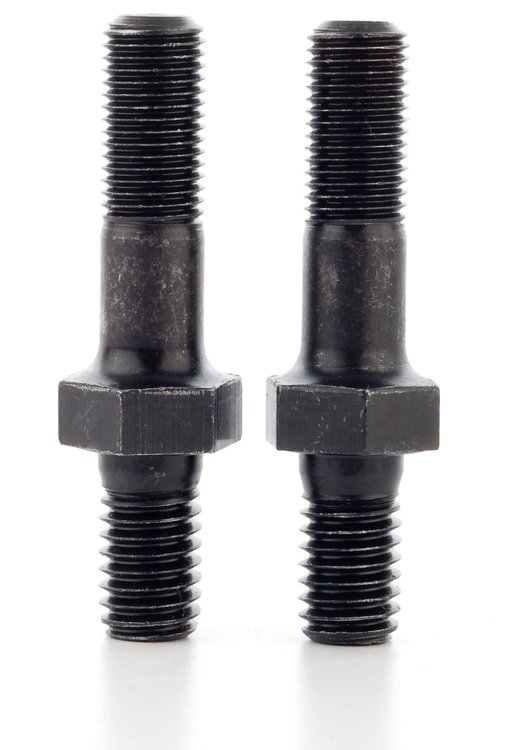

- Rocker Arm Studs
- 7/16"-20 top and 7/16"-14 bottom
- 2/pkg
- Made in the USA
Dimensions - 2.580" O.A.L.
- 1.775" stud height
- .8125" thread top
- .625" thread bottom and 11/16" hex
JEGS heavy duty rocker arm studs are precision made from 190,000 psi tensile strength alloy steel and finished in black oxide coating. Features large radii for reduced flex and increased strength. Designed for use with roller rocker arms and/or stud girdles. Not for use with OE type self-locking rocker arm nuts. Available in packages of 16, 2, or 1.
Part TypeRocker Arm Stud
Product LineJEGS Rocker Arm Studs
BrandJEGS
Package Height0.7
Package Width1.3
Package Length3.0
Weight0.2 PG
Part CategoryPerformance Parts
Base Thread Size (In.)7/16-14
Guideplate Locator ShankNo
Rocker Arm Nut Thread Size (In.)7/16"-20
Part FitmentUniversal
Rocker Arm Nut Thread Length0.813 in (20.7 mm)
Effective Stud Length1.775 in (45.085 mm)
Base Thread Length0.625 in (15.875 mm)
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
