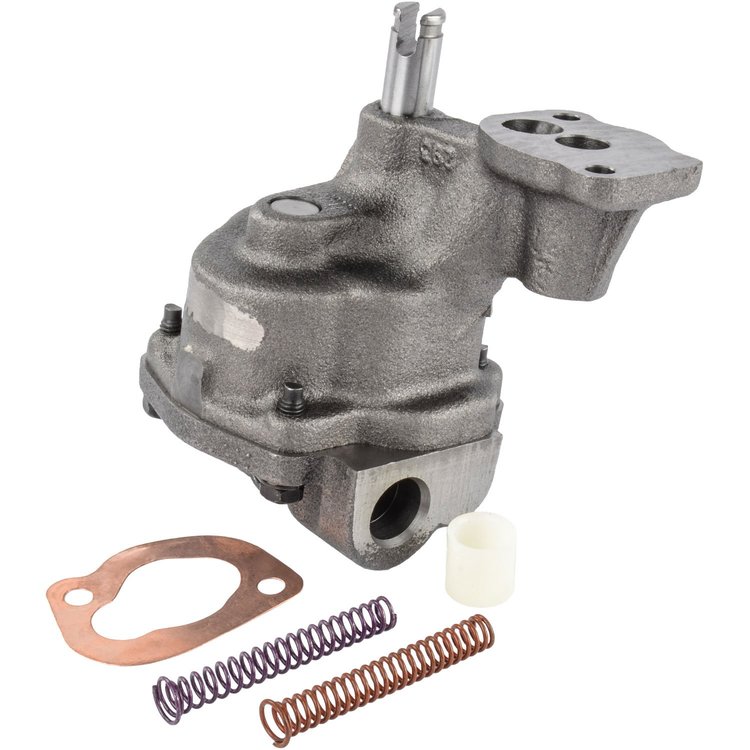

Oil Pump Adjustable for Street, Strip, Race Applications [Small Block Chevy]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-23501

Oil Pump Adjustable for Street, Strip, Race Applications [Small Block Chevy]

$9499$106.99You Save$12.00
4 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Small Block Chevy Oil Pumps
Oil Pump
  • Small Block Chevy
  • Adjustable for Street, Strip, Race Applications
    Includes:
  • (3) Quick-Change Relief Valve Oil Pressure Springs
  • (1) Copper Oil Pump Gasket

  • Fits small block chevy engines such as 283, 305, 307, 327, 350, 383 (stroker), 400, and others using the popular platform
  • Includes the following quick-change relief valve oil pressure springs: 50-55 psi (green) - the oil pump is shipped with this spring pre-installed, 65-70 psi (orange), 80-90 psi (yellow), and also includes copper oil pump gasket
  • Precision machined for tighter tolerances which equals less pressure loss
  • Features an exact mesh gear set to housing bore, yielding the highest idle psi
  • Made in usa with high quality components and assembly

    • Includes quick-change relief valve oil pressure springs:

    • 50-55 psi (Black) - The Oil Pump is Shipped with this Spring pre-Installed
    • 60-65 psi (Purple)
    • 70-80 psi (Red)
    • Also includes Copper Oil Pump Gasket 555-23622

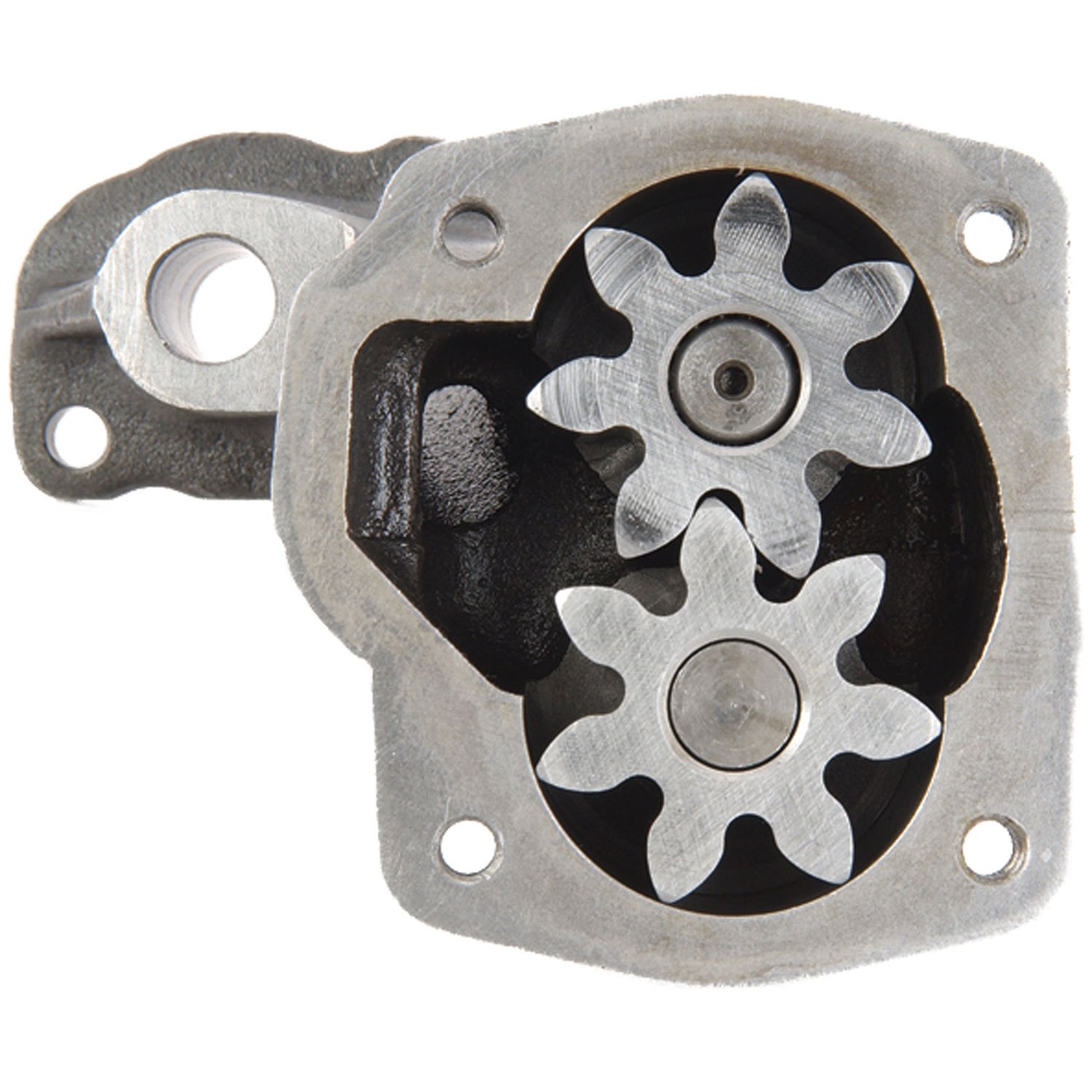

    Internal View
    		Exploded View

    Click to Enlarge

    Click to Enlarge
    Part TypeOil Pump
    BrandJEGS
    Package Height4.1
    Package Width4.2
    Package Length6.0
    Weight3.5 PG
    Part CategoryReplacement Parts
    High-Pressure Oil Pump Spring IncludedYes
    Hardened Driveshaft RecommendedNo
    External Oil Pump Pulley IncludedNo
    Pickup IncludedNo
    Oil Pump Driveshaft IncludedNo
    Oil Pump StyleWet sump
    Oil Pump VolumeHigh-volume
    Oil Pump PressureAdjustable-pressure
    Gaskets IncludedYes
    Pickup Inlet Diameter0.625 in (15.9 mm)
    Oil Pump MaterialIron
    External Oil Pump Mounting Brackets IncludedNo
    External Oil Pump Belt IncludedNo
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
