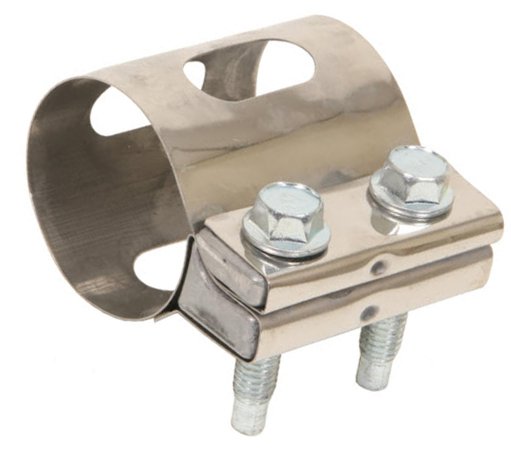

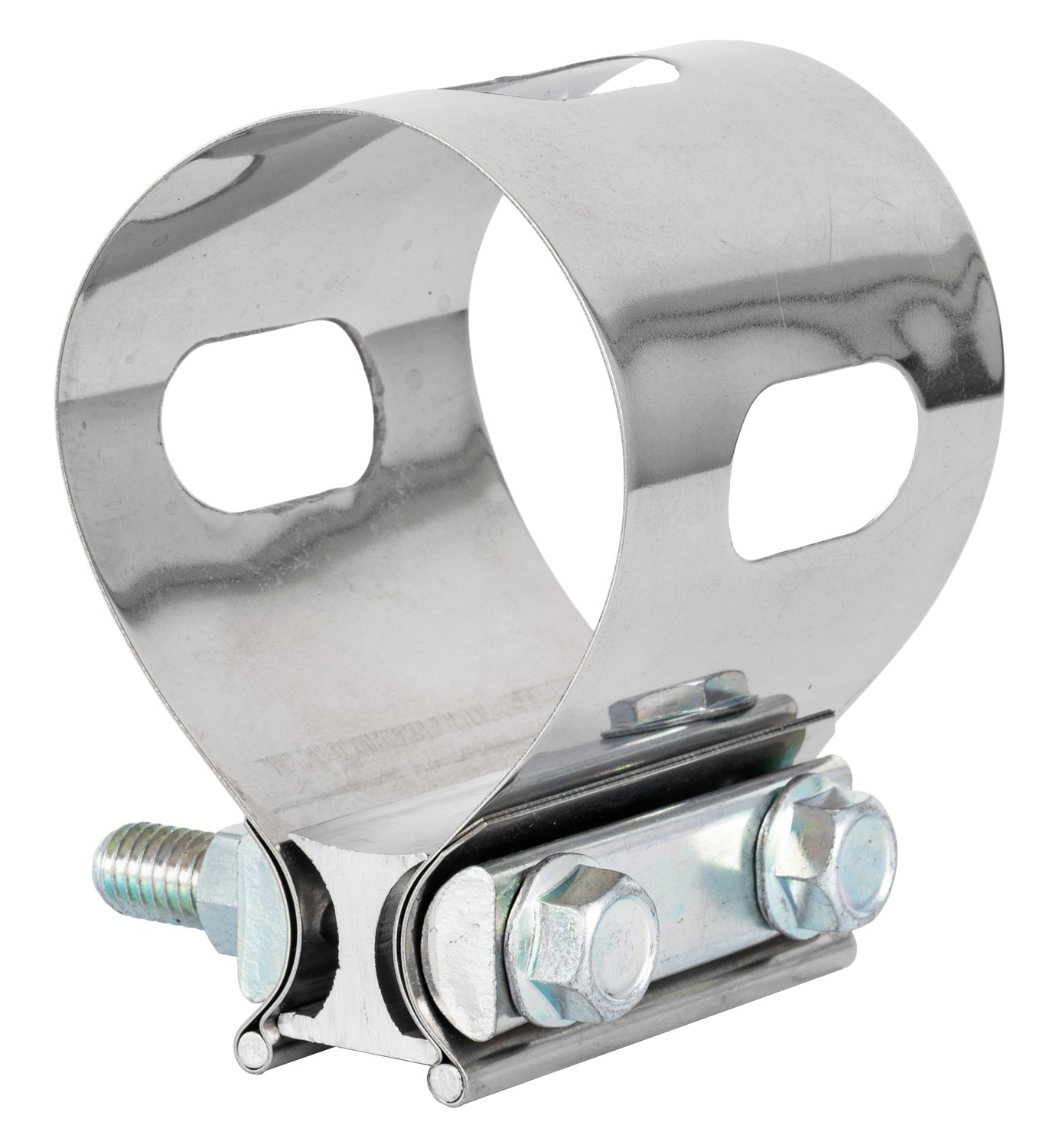

JEGS 555-30849 is a 2.500 in. exhaust butt joint welding clamp that holds two square-cut lengths of 2.500 in. outside diameter exhaust tubing in position while you tack weld the joint. It looks and installs like a butt joint band clamp, but the stainless steel band is cut with welding windows so the seam can be tacked with the clamp still on the pipe. Mock up the system, set your clearance and angles, tack through the windows, then remove the clamp for full access to finish weld the joint.

JEGS 555-30849 2.500 in. Stainless Steel Exhaust Butt Joint Welding Clamp Features:

• Fits 2.500 in. outside diameter exhaust tubing
• 3 in. clamp length spans the joint and holds both pipe ends
• Welding windows in the band allow the joint to be tack welded in the installed position
• Band-style butt joint design draws two pipe ends together without belling or expanding either pipe
• Holds mocked-up sections at the clearance and angle you set so the tack weld locks in the fit
• Removes after tacking for unobstructed access to finish weld the full seam
• Stainless steel construction stands up to exhaust heat, moisture, and road salt
• Polished finish
• Reusable from joint to joint and project to project

JEGS 555-30849 2.500 in. Stainless Steel Exhaust Butt Joint Welding Clamp Notes:

• Both pipe ends must be the same 2.500 in. outside diameter and cut square
• Butt the pipe ends together and center the band over the seam before tightening
• Tack weld only through the windows, then remove the clamp before completing the full weld
• Intended as a welding fixture, not as a permanent exhaust joint clamp or hanger
