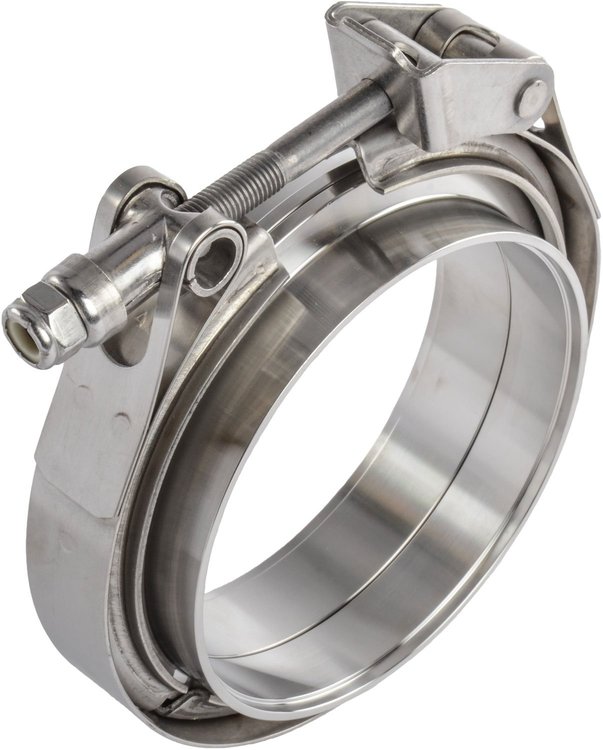

Stainless Steel Quick Release V-Band Clamp & Flanges 3 in.

Name: Stainless Steel Quick Release V-Band Clamp & Flanges 3 in.
Brand: JEGS
SKU: 555-30857
Price: 40.99 USD
Availability: InStock

^$40⁹⁹$44.29You Save$3.30

More than 10 available

Ships Today

Lowest Price Guarantee

Quick Release V-Band Clamp with Stainless Steel Flanges

Quick Release V-Band Clamp & Flanges

Fits 3 in. O.D. Tube

304 Stainless Steel

Includes:

(1) SS V-Band Clamp
(1) SS Male V-Band Flange
(1) SS Female V-Band Flange

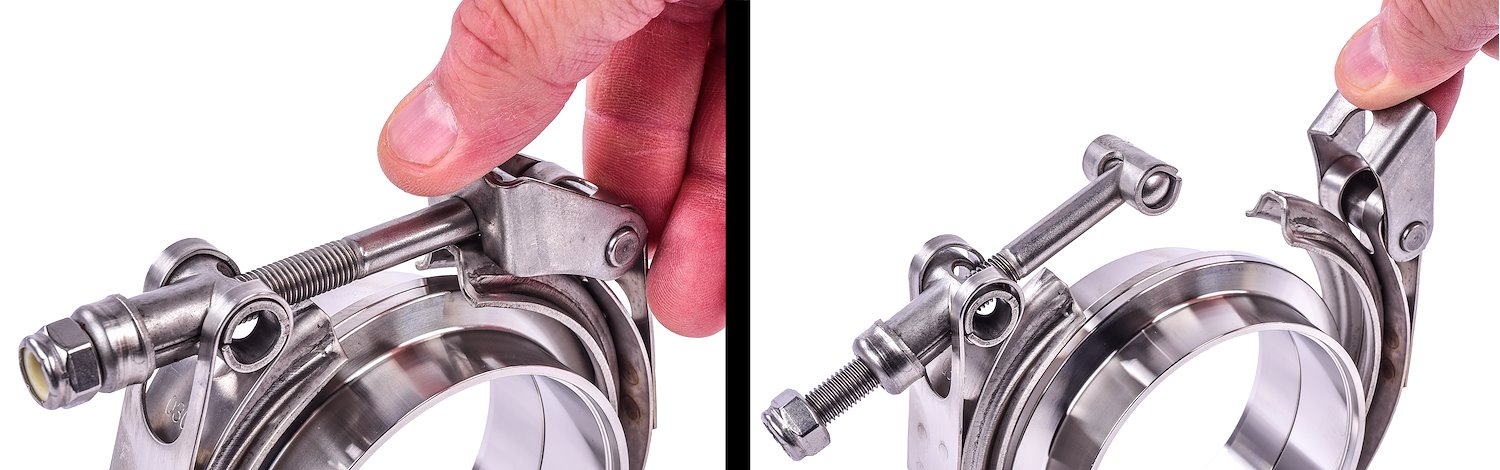

Features a quick release t-bolt style clamping mechanism to ensure a tight, leak-free seal
Male/female interlocking style flanges utilize a interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation
Butt-weld side of flanges are cnc machined with a counterbore to allow the matching tube size material to slip into the v-band flange and be welded in place with the proper alignment
Includes (1) ss v-band clamp, (1) ss male v-band flange, and (1) ss female v-band flange
Constructed from 304 stainless steel for strength and long life

This Jegs 304 Stainless Steel Quick Release V-Band Clamp features a Quick Release T-Bolt style clamping mechanism for quick easy removal and along with our Stainless Steel "Male/Female" V-Band Flanges that utilize a interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation. The butt-weld side of our V-Band Flanges are CNC machined with a counter-bore to allow the matching tube size material to slip into the V-Band Flange and be welded in place with the proper alignment. Flange Dimensions: 3 in I.D. with .125 in. recess for tube fitment & overall assembled width of 1.5625 in.

Easy-to-Use Clamps for a Leak-Free Seal

JEGS 304 Stainless Steel V-Band Clamps and Flanges are ideal for use on vehicles that undergo frequent maintenance and power-adder applications where exhaust pressure is much higher than normally-aspirated vehicles. These easy-to-use items are sold separately and the V-band clamps are also available with precision CNC-machined stainless steel or aluminum flanges. Welding is required.
