Exhaust Butt Joint Welding Clamp
  • Universal Application
  • Fits 3 in. Outside Diameter Exhaust Tubing
  • 3 in. Clamp Length
  • Welding Windows Allow Tack Welding In The Installed Position
  • Butt Joint Band-Style Design
  • Removes For Full Access To Fi

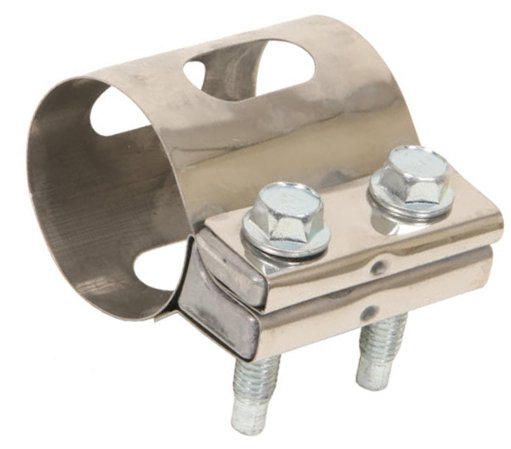

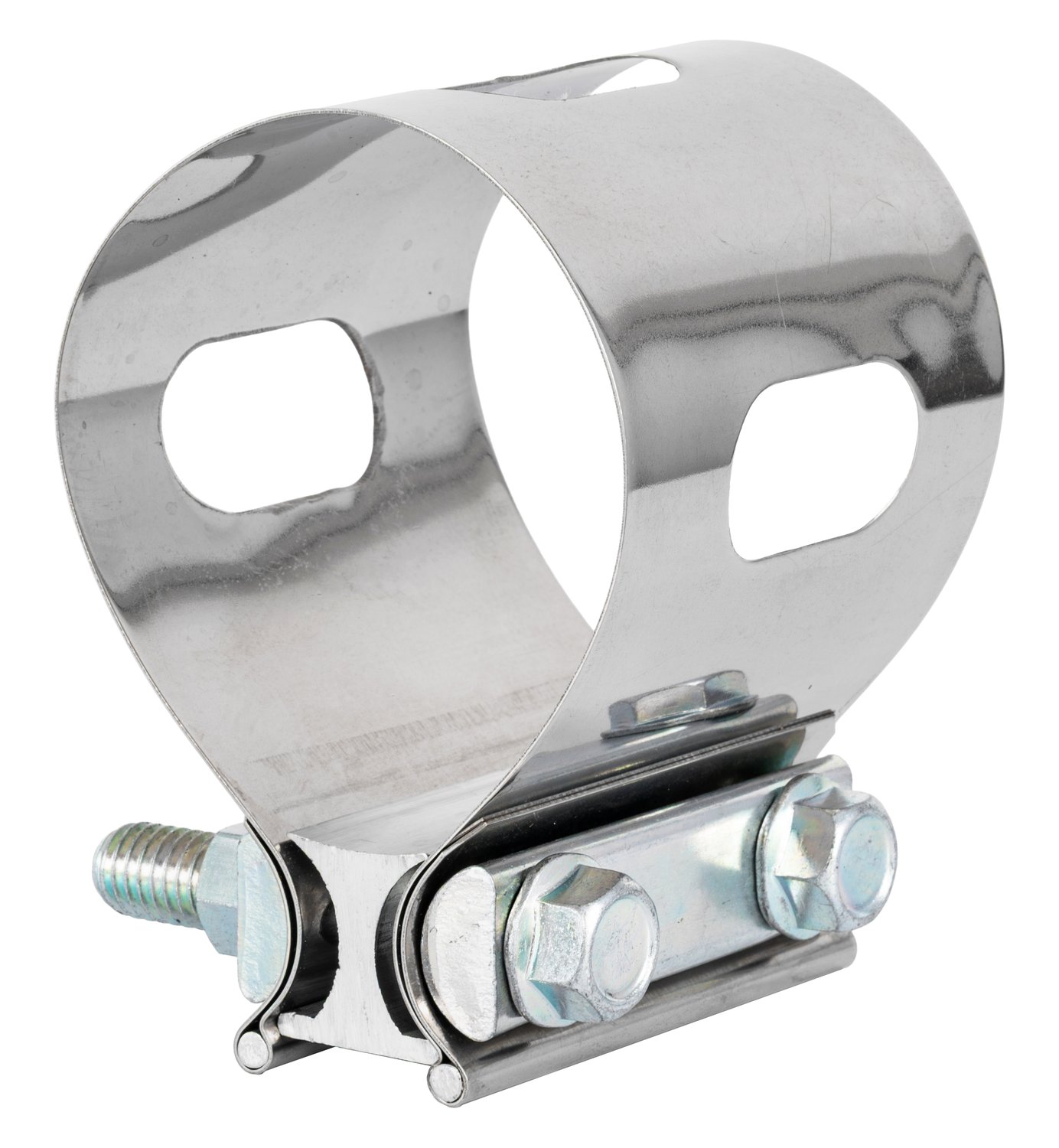

    JEGS 555-30860 is a 3 in. exhaust butt joint welding clamp that holds two square-cut lengths of 3 in. outside diameter exhaust tubing in position while you tack weld the joint. It looks and installs like a butt joint band clamp, but the stainless steel band is cut with welding windows so the seam can be tacked with the clamp still on the pipe. Mock up the system, set your clearance and angles, tack through the windows, then remove the clamp for full access to finish weld the joint.

    JEGS 555-30860 3 in. Stainless Steel Exhaust Butt Joint Welding Clamp Features:

    • Fits 3 in. outside diameter exhaust tubing
    • 3 in. clamp length spans the joint and holds both pipe ends
    • Welding windows in the band allow the joint to be tack welded in the installed position
    • Band-style butt joint design draws two pipe ends together without belling or expanding either pipe
    • Holds mocked-up sections at the clearance and angle you set so the tack weld locks in the fit
    • Removes after tacking for unobstructed access to finish weld the full seam
    • Stainless steel construction stands up to exhaust heat, moisture, and road salt
    • Polished finish
    • Reusable from joint to joint and project to project

    JEGS 555-30860 3 in. Stainless Steel Exhaust Butt Joint Welding Clamp Notes:

    • Both pipe ends must be the same 3 in. outside diameter and cut square
    • Butt the pipe ends together and center the band over the seam before tightening
    • Tack weld only through the windows, then remove the clamp before completing the full weld
    • Intended as a welding fixture, not as a permanent exhaust joint clamp or hanger
  • Part TypeExhaust Welding Clamp
    BrandJEGS
    Package Height3.35
    Package Width3.65
    Package Length4.5
    Weight0.95 PG
    Part CategoryAccessories
    Clamp FinishPolished
    Clamp MaterialStainless Steel
    Clamp Length3 in.
    Clamp Width3.000 in.
    Pipe Diameter3 in.
    QuantitySold Individually
    Part FitmentUniversal
    Clamp StyleButt Joint Welding Clamp
    Package Qty1
    Package TypeEA
