Vehicle Info NeededJEGSPART NUMBER: 555-30863

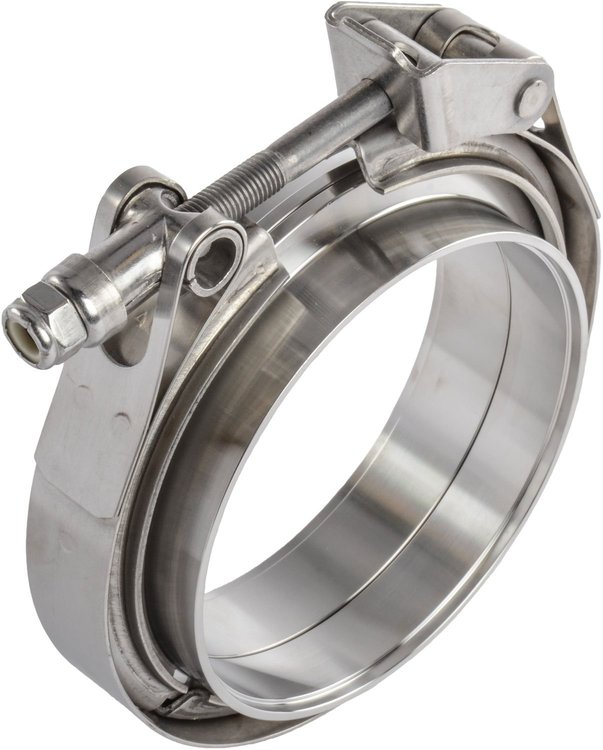

Stainless Steel Quick Release V-Band Clamp & Flanges 4 in.
$4499$48.59You Save$3.60
More than 10 available
Ships Today
Lowest Price GuaranteeQuick Release V-Band Clamp with Stainless Steel Flanges
- Quick Release V-Band Clamp & Flanges
- 4 in. OD Tube
- 304 Stainless Steel
Includes: - (1) SS V-Band Clamp
- (1) SS Male V-Band Flange
- (1) SS Female V-Band Flange

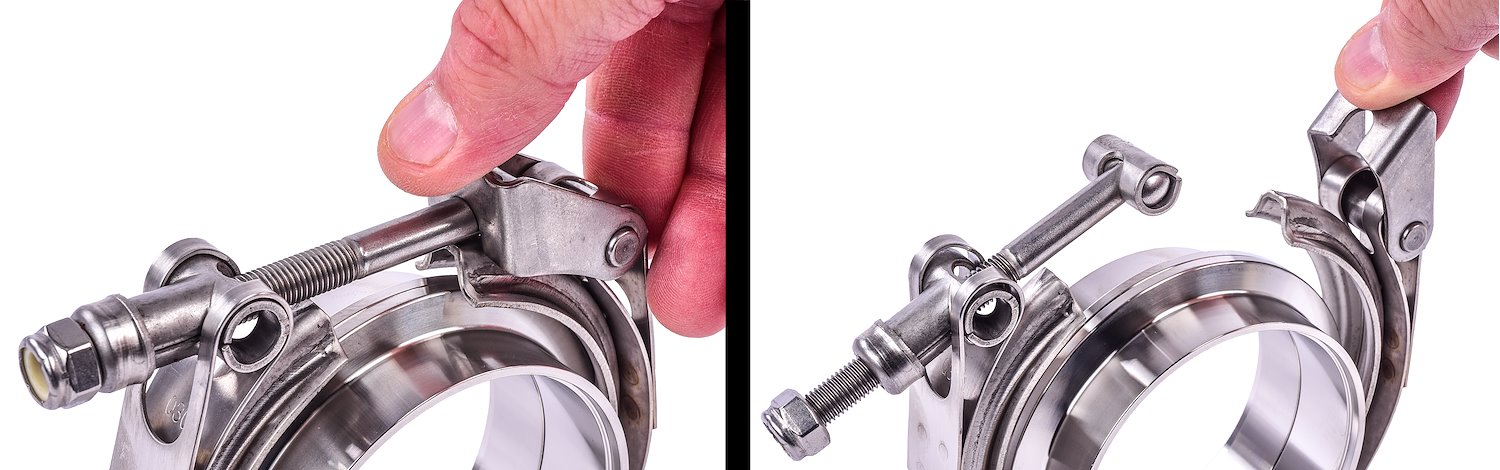

- Features a quick release t-bolt style clamping mechanism to ensure a tight, leak-free seal
- Male/female interlocking style flanges utilize a interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation
- Butt-weld side of flanges are cnc machined with a counterbore to allow the matching tube size material to slip into the v-band flange and be welded in place with the proper alignment
- Includes (1) ss v-band clamp, (1) ss male v-band flange, and (1) ss female v-band flange
- Constructed from 304 stainless steel for strength and long life
This Jegs 304 Stainless Steel Quick Release V-Band Clamp features a Quick Release T-Bolt style clamping mechanism for quick easy removal and along with our Stainless Steel "Male/Female" V-Band Flanges that utilize a interlocking seating surface to ensure a leak-free seal without the need for a gasket and provides an easy way to align the flanges during installation. The butt-weld side of our V-Band Flanges are CNC machined with a counter-bore to allow the matching tube size material to slip into the V-Band Flange and be welded in place with the proper alignment. Flange Dimensions: 4 in I.D. with .125 in. recess for tube fitment & overall assembled width of 1.5625 in.
Part TypeV-Band Clamp
BrandJEGS
Package Height2.0
Package Width6.0
Package Length6.0
Weight1.75 PG
Part CategoryPerformance Parts
Clamp FinishPolished
Clamp MaterialStainless Steel
Pipe Diameter4 in (101.6 mm)
Part FitmentUniversal
Clamp StyleV-band
Package Qty1
Package TypeEA
