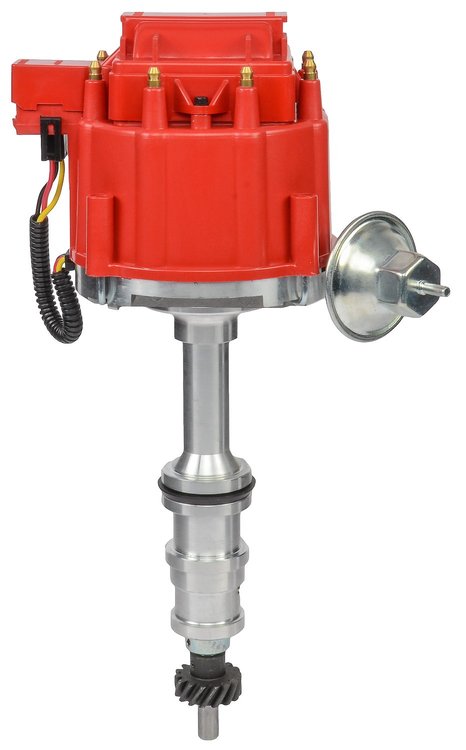

HEI Distributor for Ford FE Big Block 332-428 V8 Engines [Red Cap]

Name: HEI Distributor for Ford FE Big Block 332-428 V8 Engines [Red Cap]
Brand: JEGS
SKU: 555-40026
Price: 161.99 USD
Availability: InStock

^$161⁹⁹$178.99You Save$17.00

More than 10 available

Ships Today

Lowest Price Guarantee

Big Block Ford

HEI Distributor

Fits Ford FE Big Blocks

1958-1959 332

1958-1966 352

1968-1976 360

1961-1971 390

1962-1963 406

1966-1967 410

1963-1970 427/428

.467 Shaft Diameter

Adjustable Vacuum Advance

65,000 Volt Coil

Steel Gear

JEGS 555-40026 HEI Distributor Features:

Fits Ford FE Big Block 332, 352, 360, 390, 406, 410, 427 and 428 V8 Engines
Switch from an old breaker-point distributor to a GM Style High-Energy Ignition (HEI) Distributor
Easy drop-in installation using the 1-wire hook-up
The 65,000-volt coil provides a hot spark for maximum performance using solid brass terminals
Magnetic style pickup
Premium RED HEI (GM style High Energy Ignition) style cap with male brass terminals
High-quality CNC aluminum body provides years of trouble-free operation
Fully compatible with flat tappet and hydraulic roller cams

Firing order: click here

JEGS 555-40026 HEI Distributor Notes:

Designed for Carbureted Applications Only
No external ignition box required
Use Howards 466-94450 Bronze distributor gear for roller camshafts. Sold separately
To protect ignition system components, always disconnect all vehicle power sources before performing welding on applications equipped with an HEI distributor. Electrical surges from welding can damage sensitive ignition electronics.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Distributors with Power, Reliability, and Simplicity

The GM HEI (High Energy Ignition) distributor is a self-contained, high-performance ignition system developed by General Motors in the mid-1970s. Known for its reliability, high voltage output, and simplified design, the HEI integrates the ignition coil directly into the distributor cap, reducing wiring complexity and eliminating the need for an external coil or external module. It delivers a stronger and more consistent spark across the RPM range.

The JEGS High-Performance HEI Street Spark Distributors are a popular upgrade for classic muscle cars, hot rods, & classic trucks, and are available for multiple Ford Engines.

Click your favorite brand to view JEGS High-Performance HEI Street Spark Distributors for other engine manufacturers, AMC, Buick, Chevy, Olds, Pontiac, Jeep, or Mopar Engines

Part TypeDistributor

Product LineJEGS High-Performance HEI Street Spark Distributors for Ford Engines

BrandJEGS

Package Height7.3

Package Width10.4

Package Length16.1

Weight6.61 PG

Part CategoryPerformance Parts

Computer-Controlled CompatibleNo

Trigger StyleMagnetic

Housing FinishNatural

Housing MaterialAluminum
