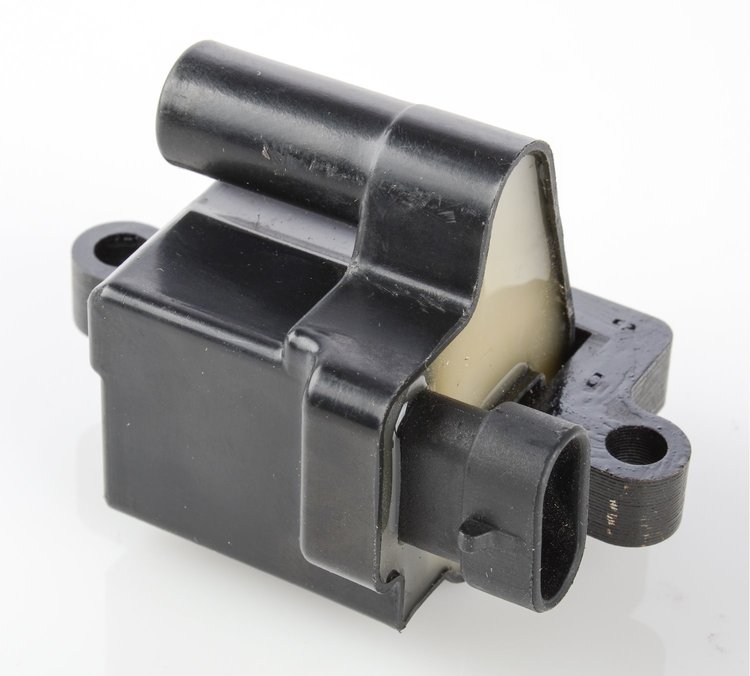

GM LS Ignition Coil for 1999-2007 4.8L/5.3L/6.0L, 2001-2009 8.1L Truck Engines [Square type]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-40164

GM LS Ignition Coil for 1999-2007 4.8L/5.3L/6.0L, 2001-2009 8.1L Truck Engines [Square type]

$4969$53.99You Save$4.30
More than 10 available
ShippingShips on Nov 02, 2026
Lowest PriceLowest Price Guarantee

GM LS Ignition Coils
GM LS Ignition Coil
  • 1999-2007 4.8L/5.3L/6.0L Light Duty Truck Engines
  • 2003-2007 Medium Duty 8.1L
  • GM 1st Design
  • Replaces Delco D581(Mitsubishi Square Coils)
  • Sold Individually

    Fits These GM LS Truck Engines:

    • GM First Design: Square Mitsubishi style
    • 1999-2007 4.8L Vin: V
    • 1999-2007 5.3L Vin: T
    • 2002-2007 5.3L V8 Flex Fuel Vin: Z
    • 2003-2004 5.3L Vin: P
    • 1999-2007 6.0L Vin: N, U
    • 2001-2009 8.1L Vin: E, G

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

      • High-Voltage for More Performance

      JEGS High-Output Ignition Coils offer higher voltage and more energy than OEM coils. These coils are ideal for use in high-performance, supercharged, turbocharged, and nitrous engines. Each coil is produced from high-quality for durability and reliabilty.

    Part TypeIgnition Coil
    Product LineJEGS High-Output GM LS Ignition Coils
    BrandJEGS
    Package Height2.32 in (58.928 mm)
    Package Width3.7
    Package Length4.3
    Weight0.7 PG
    Part CategoryPerformance Parts
    Carb Eo NumberN/A
    Primary Resistance1.050 ohms
    Coil Wire AttachmentFemale/Socket
    Coil StyleE-core
    QuantitySold individually
    Ballast Resistor IncludedNo
    Maximum VoltageN/A
    Turns Ratio71:01:00
    Peak CurrentN/A
    Coil ShapeSquare
    Mounting Bracket IncludedNo
    Inductance6.5 mH
    Coil ColorBlack
    Coil Wire IncludedNo
    Spark Duration2,900 uS
    Secondary Resistance7.45K ohms
    Part FitmentDirect Fit
    Coil Internal ConstructionEpoxy
    DiameterN/A
    Package Qty1
    Package TypeEA
