Made in USA

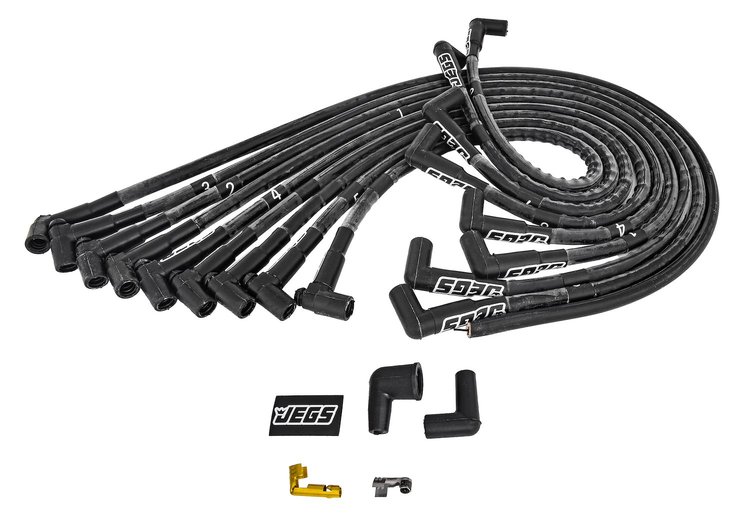

8mm Hi-Temp Sleeved Spark Plug Wire Set for Big Block Chevy 396, 402 & 454 w/HEI, Under Header w/90-degree Boots [Black]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-40289

8mm Hi-Temp Sleeved Spark Plug Wire Set for Big Block Chevy 396, 402 & 454 w/HEI, Under Header w/90-degree Boots [Black]

$12899$151.99You Save$23.00
7 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Big Block Chevy
Hi-Temp Spark Plug Wire Set
  • Fits Big Block Chevy 396-454 w/HEI Distributor
  • 8 mm Black
  • Hi-Temp Sleeved
  • Under Header Design
  • 90-degree HEI Distributor Female Boots
  • 90-degree Spark Plug Boots
  • Spiral Core for RFI/EMI Suppression Wire

    JEGS 555-40289 Hi-Temp Sleeved Spark Plug Wire Set

    • Under Header design with 90-degree spark plug boots for Big Block Chevy applications w/HEI Distributor
    • 8 mm diameter wire with 350 ohms of resistance per foot

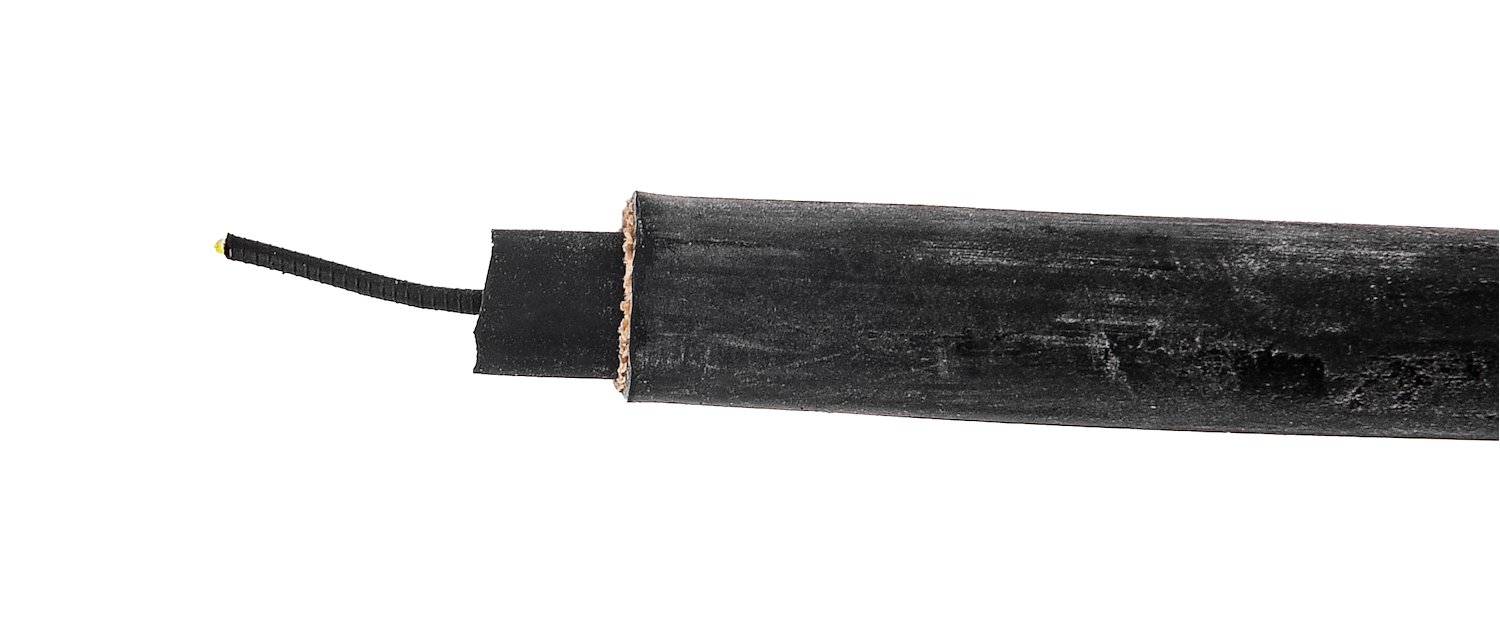

    • The Spiral Core RFI/EMI suppression element wire provides the highest level of radio noise suppression
    • Snap-Lock stainless steel terminals stay connected under extreme vibration conditions
    • Fold-over crimping won't vibrate loose and prevents misfires
    • Hi-Temp silicone boots
    • Hi-Temp Silicone Fiberglass Reinforced Heat Sleeving
      • Extends spark plug wire life
      • Offers improved dielectric strength for added resistance to outside pulses
      • Protects against exhaust header heat, chaffing, and contaminants such as oil, fuel, and coolant
      • Each wire is sleeved from the distributor boot to the spark plug boot with JEGS logoed shrink sleeves at each end to complete the wire-to-boot sealing
    • Complete, ready to install with cylinder numbered wires to make installation easier
    • Includes Coil wire for external mount coil (Wire is cut to length and requires installation of the terminal end)
    • Extended Life Spark Plug Wires

      JEGS Performance 8 mm Hi-Temp Spark Plug Wires manufactured with a unique silicone-fiberglass exterior sleeving. This sleeving provides extended wire life and improved dielectric strength and resistance to outside electrical pulses while protecting the wire against heat, chafing, and contaminants. Available in Black, Blue, and Red Colors.

    Part TypeSpark Plug Wire
    Product LineJEGS 8.0mm Hi-Temp Sleeved Spark Plug Wire Sets
    BrandJEGS
    Package Height3.7
    Package Width9.5
    Package Length9.5
    Weight2.96 PG
    Part CategoryPerformance Parts
    Wires RoutedUnder header
    Spark Plug Wire Diameter (Mm)8
    Coil Boot IncludedYes
    AssembledYes
    Spark Plug Boot EndsEight 90 degree
    Coil Boot MaterialSilicone
    Spark Plug Boot ColorBlack
    Distributor Terminal EndsMale/HEI
    Distributor Boot ColorBlack
    Spark Plug End Terminal TypeSnap Lock
    Rfi SuppressionYes
    Boot Type90 Degree
    Distributor Boot MaterialSilicone
    Wire ColorBlack
    QuantitySold as a set
    Coil Boot ColorBlack
    Spark Plug Wire Resistance350 ohms/ft.
    Coil Wire Boot Ends90 degree
    Spark Plug Boot MaterialHi Temp Silicone
    SleevedYes
    Coil Wire IncludedYes
    Noise Suppression TypeYes
    Conductor StyleSpiral core
    Part FitmentSemi Universal
    Package Qty1
    Package TypeEA
