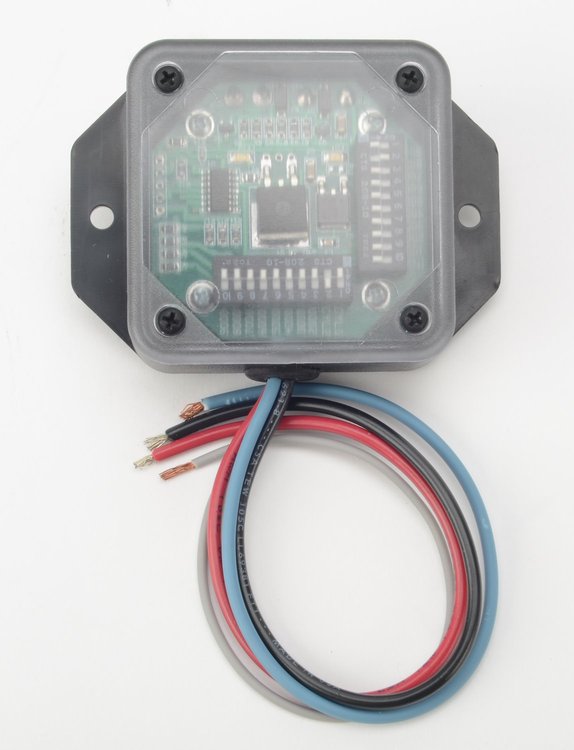

RPM-Activated Switch with LED Indicators

Name: RPM-Activated Switch with LED Indicators
Brand: JEGS
SKU: 555-40820
Price: 59.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

RPM-Activated Switch

LED Indicators

Shared Specifications for All Switches

2.5" L x 2.5" W x 0.90" H
For 4, 6, and 8-cylinder engines
Compatible with accessories up to 3 amps (relay required to control circuits over 3 amps)
Choose "Open" to turn on or "Closed" to shut off accessory at desired RPM (40824 offers second setting)
RPM Range: 2,000 to 9,900
Overcurrent protection

Note: Most late model engines that don't have a distributor or have multiple coils will need a tach adapter for use with this RPM switch.

BrandJEGS
Package Height3.4
Package Width3.5
Package Length3.8
Weight0.3 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
