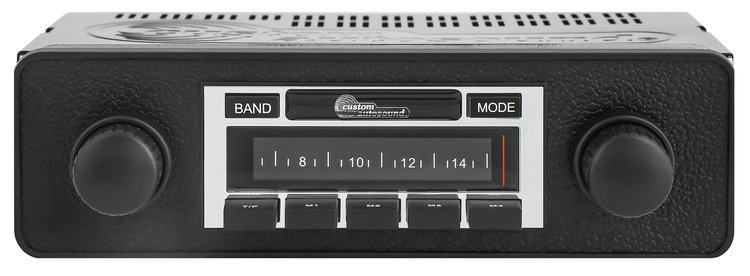

![Classic 630 Series Radio for 1968-1979 Volkswagen Transporter (Bus) [Bluetooth Compatible]](https://www.jegs.com/images/mini_750/500/555/555-48228.jpg)
JEGSPART NUMBER: 555-48228
Classic 630 Series Radio for 1968-1979 Volkswagen Transporter (Bus) [Bluetooth Compatible]
$30299$333.99You Save$31.00
Volkswagen
630 Radio1968-1979 Volkswagen Transporter (Bus) Chrome Bezel Black Knobs AM-FM Stereo 300 Watt 25 Pre-Sets AUX Input (6) RCA Pre-outs USB Port Original Factory Look Bluetooth Compatible
JEGS 555-48228 Classic 630 Series Radio
Bring your classic VW Bus audio system into the 21st Century with features that are designed to work with today's technology, including multiple audio sources and controls, clear FM stereo reception, and add-on amplifier capability for powerful sound. Along with all the new capabilities, these units slide directly into the original radio dash opening without modification for easy installation.
Bluetooth Compatible. Requires wireless controller sold separately. SEE ITEMS YOU NEED
JEGS 555-48227 Classic 630 Model Features:
- 300 Watts (75w per channel) of Peak Power (52x4 RMS)
- AM/FM reception with RDS (Radio Data System) tuner for clear station reception and song/artist/station display and 25 Station Pre-Sets (10 AM, 15 FM)
- Rear RCA auxiliary input (cable included)
- The DSP EQ allows a selection of 5 equalizer options (FLAT/CLASSIC/POP/ROCK/OFF)
- Essential functions include (BASS/MID/TREBLE), Left/Right balance, and Front/Rear (4-way) fader provides custom sound control
- 6 volt, 4-Channel Front/Rear RCA Pre-outs enable an amplified speaker system if desired
- Connect a CD player and control it directly through the radio
- iPod Playback and control capable with the included iPod dock
- USB Port playback for MP3/WMA/FLAC/WAV with alpha-numeric display
- The display is easy to read with a black background and 7 selectable LCD colors (WHITE/RED/GREEN/BLUE/CYAN/YELLOW/PINK) with dimmer control to match several instrument clusters
- The loudness compensation feature enhances low-volume listening
- Last Volume Memory
- Digital Clock
- Switchable frequency selector zones: USA (default) EURO/JAP/AUS/RUS
- Power Antenna Lead
JEGS 555-48227 Classic 630 Series Radio Notes:
- See Instructions TAB Below for Full List of Specifications
Part TypeRadio
BrandJEGS
Package Height3.0
Package Width8.0
Package Length8.0
Weight4.0 PG
Part CategoryAccessories
Fm S/N Ratio67dB
Fm If Frequency10.7MHz%
Tuner TypePLL (Phase-Locked Loop)
Fm T.H.D0.80%
Audio Thd (Total Harmonic Distortion1%
Audio System PowerMax 300 Watts
Chassis Dimensions7.750 in (200mm) W x 2 in (50mm) H x 5 .75 in (150mm) D
Radio Model630 Series
Power Supply12VDC Negative Ground
Fm Frequency Range87.5-107.9 MHz
Audio Response30Hz-I8KHz
Stand-By Current<2mA
Am Frequency Range530-1710KHz
Fm Quieting Sensitivity4uV
Usb Port Phone Charging CapableYes
Am If Frequency450KHz
Speaker Impedance2-8 ohm
Fm Separation35dB
Fm Capture Ratio1.5dB
Fm Usable Sensitivity12.5dBf
Am S/N Ratio50dB
QuantitySold Individually
Am Selectivity25dB
Am Sensitivity20uV
Audio Output Channels45 X 4
Audio Output Impedance4ohm per speaker
Fm Sensitivity2.6V
Rms Watts Per Channel52 watts
Part FitmentDirect Fit
Vendor Part NumberCAM-VWBL-630
Package Qty1
Package TypeEA
