Height Dimensions Click Here

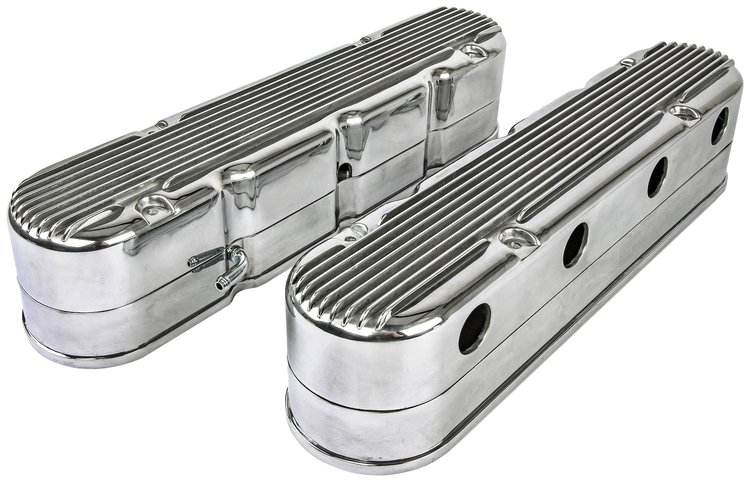

JEGS 5001075 polished valve covers are designed to work with the two most common LS style Delco ignition coils (D510C & D580). We recommend 555-40160K2 or 555-40166K

Note: Will NOT work with Corvette belt alignment

Covers Fit these LS Engines:

• 4.8 L / 293 c.i.
• 5.3 L / 325 c.i.
• 5.7 L / 346 c.i.
• 6.0 L / 364 c.i.
• 6.2 L / 376 c.i.
• 7.0 L / 427 c.i.

Includes:

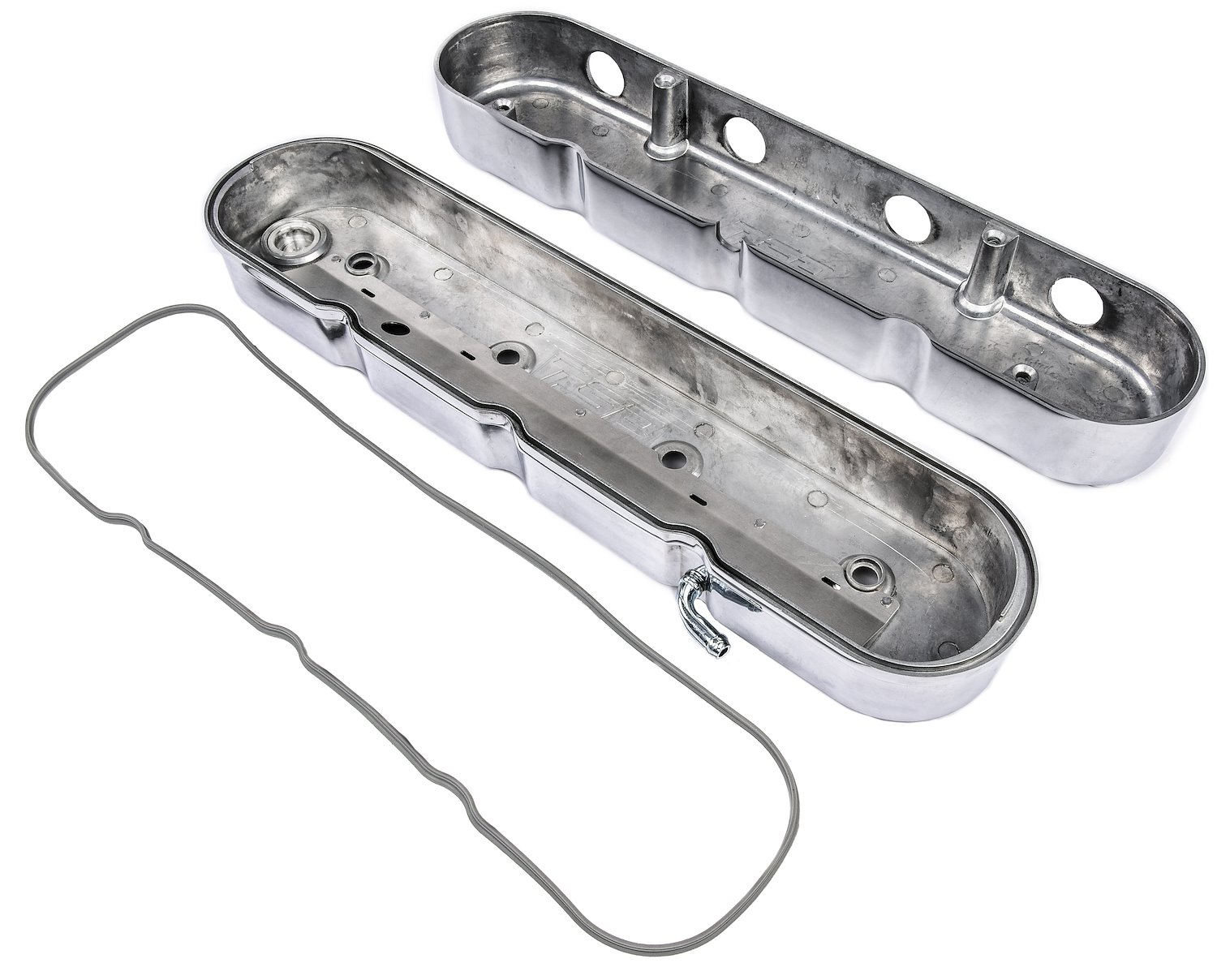

• (2) Aluminum lower valve covers
• (2) Aluminum upper coil covers
• (8) 1/4 in.-20 x 2 3/16 in. L stainless steel coil cover mounting bolts with 1/4 in. 12-point flange head
• (8) 1/4 in. I.D. x 5/8 in. O.D. x .085 thick, coil cover mounting bolt rubber washers
• (16) 1/4 in.-20 x 1 1/4 in. L stainless steel coil attaching bolts with 3/8 in. 6-point hex flange head
• (16) 1/4 in. I.D. x 1/2 in. O.D. x 9/16 in. L black plastic coil spacers
• (8) 6mm x 1.0mm x 83mm L stainless steel lower valve cover bolts with 9mm hex head
• (8) 1/4 in. I.D. x .782 in. O.D. x .076 in. thick steel lower valve cover flat washers
• (8) 1/4 in. I.D. x .470 in. O.D. x 2 5/8 in. L aluminum lower valve cover spacers with rubber grommets
• (2) Low-Profile Oil Fill Caps
• (1) JEGS valve cover gasket set of 2 555-210870
