![Black Aluminum Valve Covers for GM LS Engines [Tall]](https://www.jegs.com/images/mini_750/500/555/555-501080.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-501080

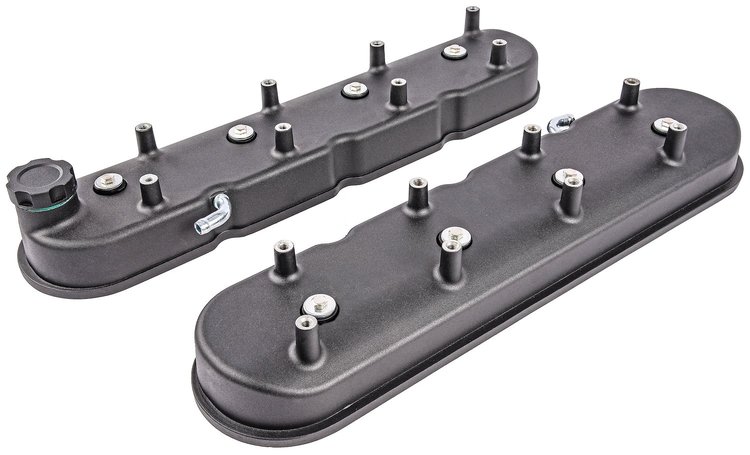

Black Aluminum Valve Covers for GM LS Engines [Tall]
$21999$241.99You Save$22.00
4 left in stock
Ships Today
Lowest Price GuaranteeGM Gen III/IV LS
Valve CoversGM LS Engines Center Bolt Mounting Tall Height Coil Mounts Black Finish Cast AluminumIncludes
- (1) Billet Oil Fill Cap
- (2) Valve Cover Gaskets
- (2) Breather Fittings

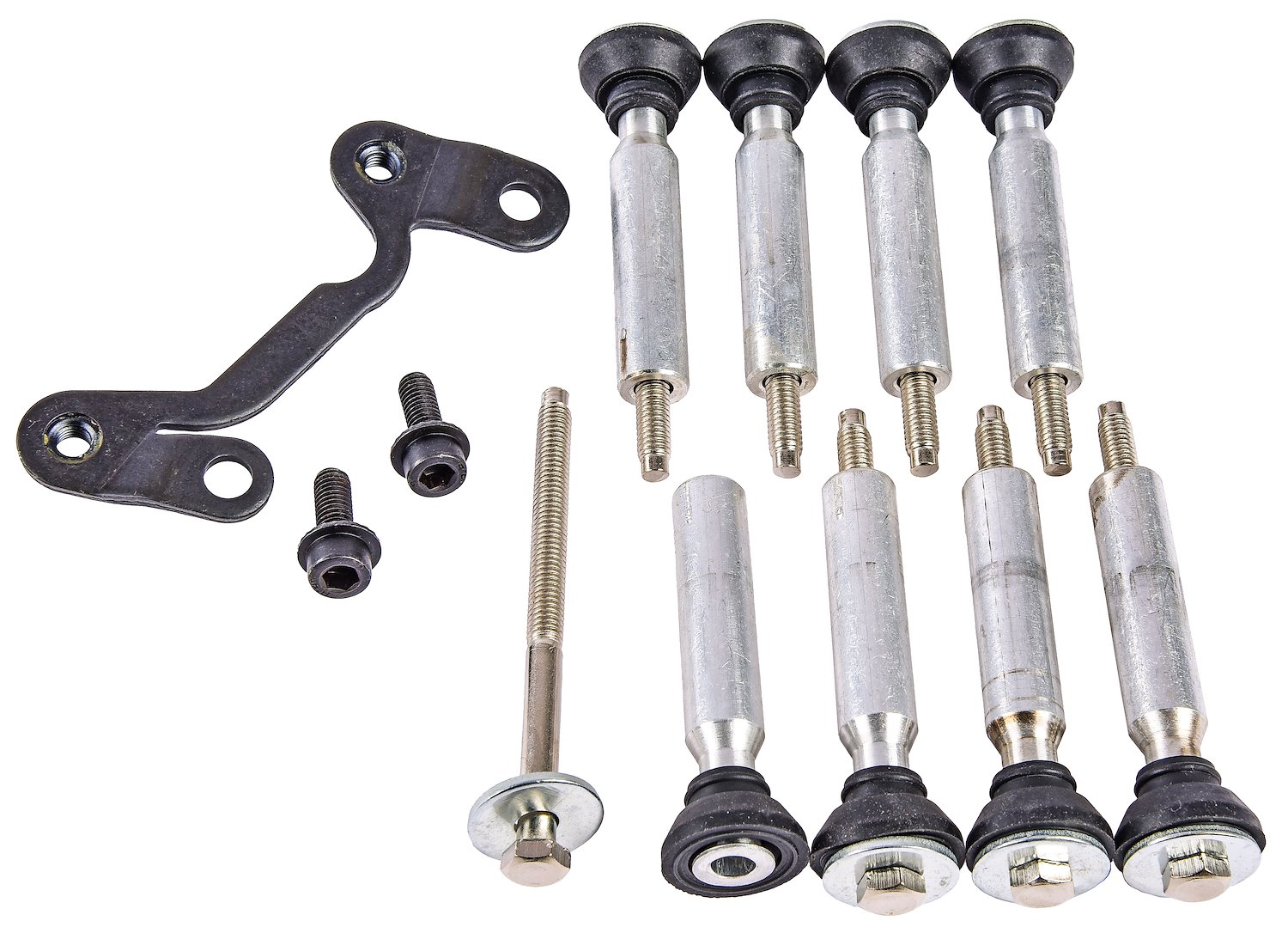

- Mounting Hardware
The JEGS 501080 cast aluminum valve cover is designed with extra height to allow for high lift or large body aftermarket rocker assemblies. The black finish adds a touch of personalization to your engine bay.
Features
- Coil mounting post thread size: M6-1.0
- Extra height: 0.54 in.
- Screw-on billet oil fill cap
- One-piece o-ring style gaskets
- Baffled
- This valve covers fit LS1, LS2, LS3, LS6, and LS7 engines
- Coil mounting post spacing: 72 mm [Fits Delco 510C-style ignition coils]
- Includes offset coil bracket [To address possible interference with a top-mounted alternator]
Note: Reuse the coil mounting hardware from your original valve covers, new coil mounting hardware is NOT included with this set.
Part TypeValve Cover
BrandJEGS
Package Height3.4
Package Width11.2
Package Length20.3
Weight8.46 PG
Part CategoryPerformance Parts
Holes Per Cover4
Breather TubeYes
Oil Cap ShapeOctagon
Valve Cover MaterialCast aluminum
Valve Cover FinishBlack powder-coated
Interior Height (Flange To Top)1.625 in.
QuantitySold as a pair.
Mounting Hardware IncludedYes
Valve Cover Fastener StyleBolt
Fastener MaterialSteel
Engine Make/SizeGM Gen III/IV LS
Oil Cap AttachmentScrew-in
Gaskets IncludedYes
Top StylePlain
Oil Cap MaterialAluminum
Breathers IncludedNo
Oil Cap FinishBlack
Valve Cover Height2.75 in (69.9 mm)
Part FitmentSemi Universal
Valve Cover Mounting StyleCenter Bolt
Oil Filler Cap IncludedYes
Valve Cover StyleTall
Oil Cap Top StylePlain
Package Qty1
Package TypeEA
