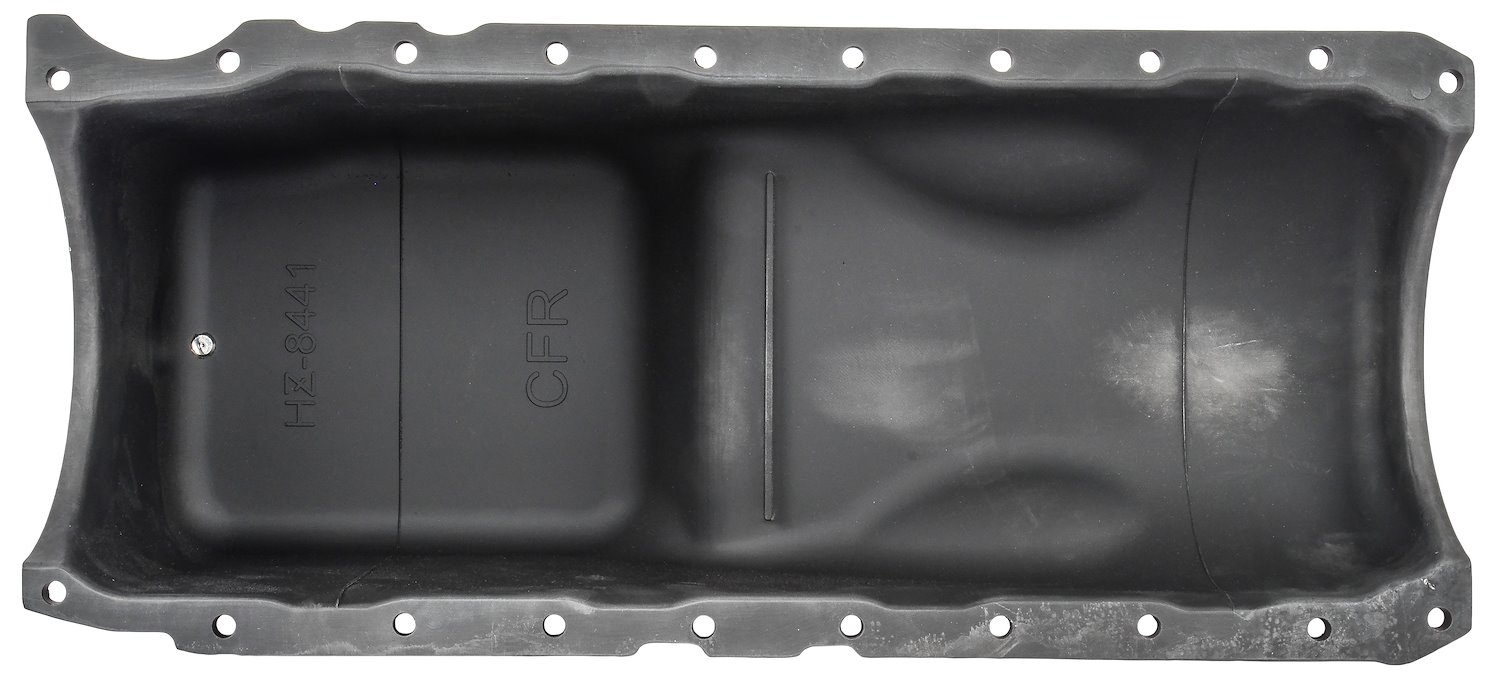

Finned Aluminum Oil Pan for 1991-2000 Big Block Chevy Gen V & VI (Passenger Side Dipstick)
Product Discontinued
JEGSPART NUMBER: 555-502104

Finned Aluminum Oil Pan for 1991-2000 Big Block Chevy Gen V & VI (Passenger Side Dipstick)

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Big Block Chevy
Finned Aluminum Oil Pan
  • 1991-2000 Big Block Chevy Gen V & VI
    (Passenger Side Dipstick)
  • 5 Quart Capacity
  • Powdercoated Black

    Includes:
  • (1) Drain Plug
  • (28) Mounting Bolts & Washers

    JEGS Oil Pan Dimensions Chart

    Features:

    • Black Powder Coated Aluminum for Durabiltiy
    • Cooling Fins to help with Heat Dissipation
    • Accepts Stock Oil Pump 555-23508 & High Volume Oil Pump 555-23509
    • Accepts Stock Factory Oil Pump Pickup Tube 555-50216
    • Part TypeOil Pan
    BrandJEGS
    Package Height9.5
    Package Width12.0
    Package Length25.0
    Weight9.0 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity5 quarts
    Hardware IncludedYes
    Dipstick ProvisionYes
    Sump StyleWet
    Pickup IncludedNo
    Drain Plug Thread Size (In.)1/2-20
    Maximum Stroke With Oe Rod4 in (101.6 mm)
    Oil Pan Depth8.25 in (209.6 mm)
    Rear Main Seal Style1-piece
    Sump LocationRear
    Crank Scraper IncludedNo
    Windage Tray IncludedNo
    Dipstick LocationPassenger
    Kicked OutNo
    FinishBlack
    Stroker ClearancedNo
    Package Qty1
    Package TypeEA
