![Street & Strip II Oil Pan for 1965-1990 Big Block Chevy [2-Piece Rear Main, Black Finish]](https://www.jegs.com/images/mini_750/500/555/555-502126.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-502126

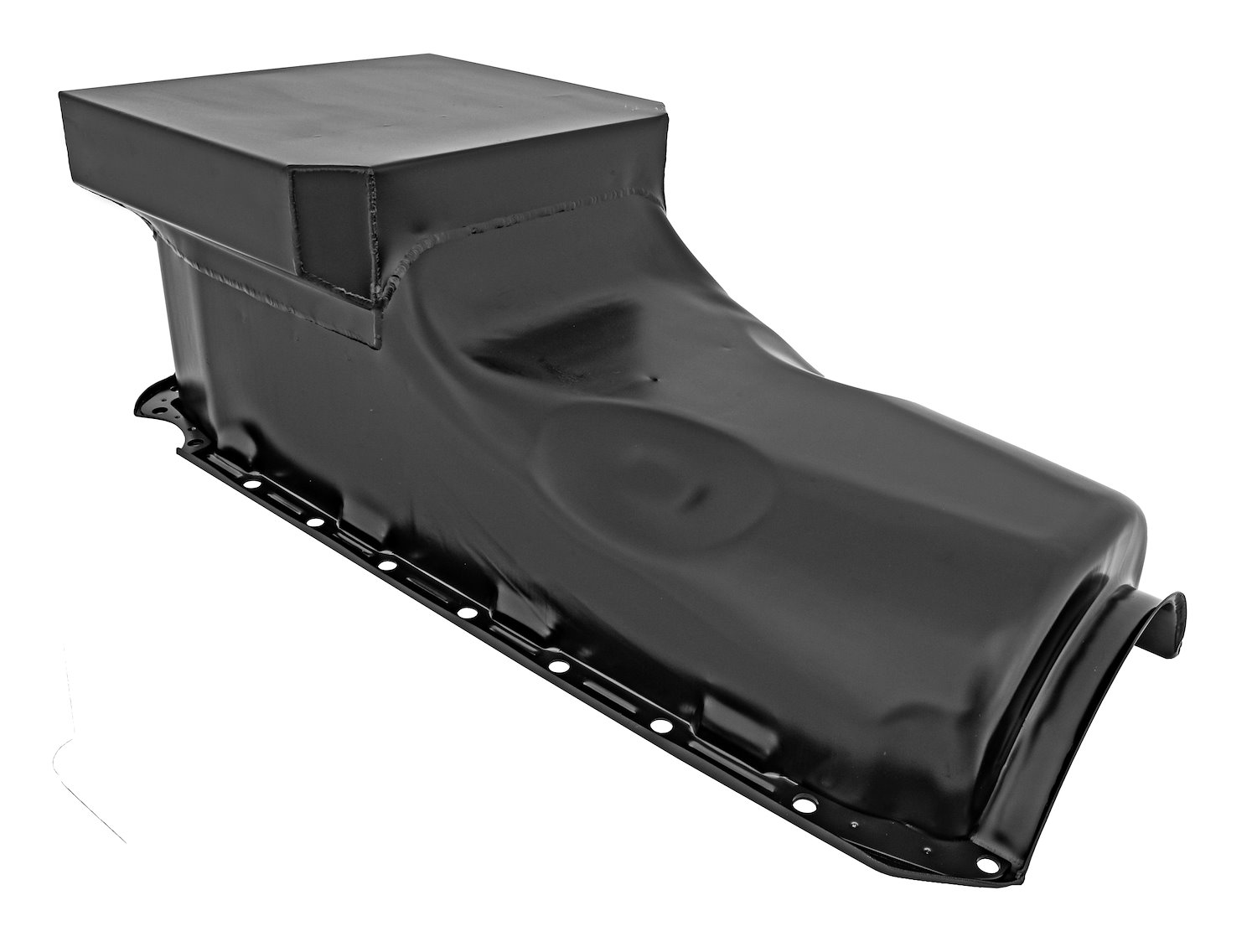

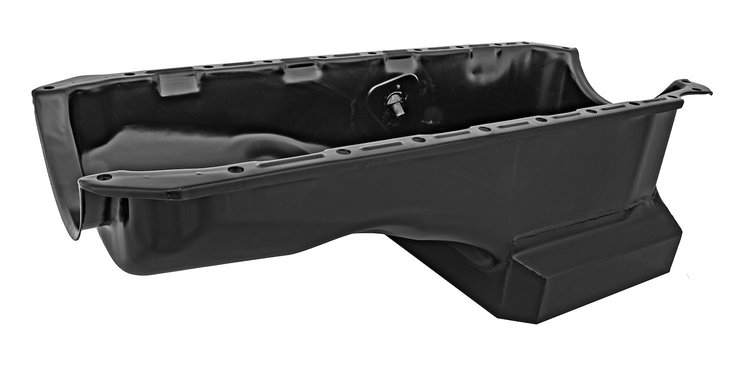

Street & Strip II Oil Pan for 1965-1990 Big Block Chevy [2-Piece Rear Main, Black Finish]
$16699$183.99You Save$17.00
6 left in stock
Ships Tomorrow
Lowest Price GuaranteeBig Block Chevy
Street & Strip II Oil Pan1965-1990 Big Block Chevy Mark IV Pan-Mounted Press-In Dip Stick Capacity: 7 qt. Plus Filter 2-Piece Rear Main Seal Rear Sump Steel Black Finish Sold Individually
JEGS 555-502126 Big Block Chevy Features:
- Ideal for street or strip applications
- Low-profile design for more ground clearance
- Oil control baffles reduce windage for HP gains
JEGS 555-502126 Big Block Chevy Oil Pan Notes:
- Designed to work with JEGS 555-502082 oil pump pickup (Sold separately)
- Does not fit 1962-1967 Chevrolet Chevy II
- Does not fit Chevelle Models with steering behind the cross-member
Part TypeOil Pan
BrandJEGS
Package Height8.9
Package Width10.9
Package Length25.4
Weight11.1 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Sump StyleWet
Pickup IncludedNo
QuantitySold individually
Oil Pan FinishBlack Powder Coat
Drain Plug IncludedYes
Engine Make/SizeChevy Big Block
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4.5 in (114.3 mm)
Gaskets IncludedNo
Oil Pan Depth8.375 in (212.7 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Engine ManufacturerChevrolet
Windage Tray IncludedNo
Oil Pan StyleStreet/Strip
Dipstick LocationPassenger Side
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedNo
Package Qty1
Package TypeEA
