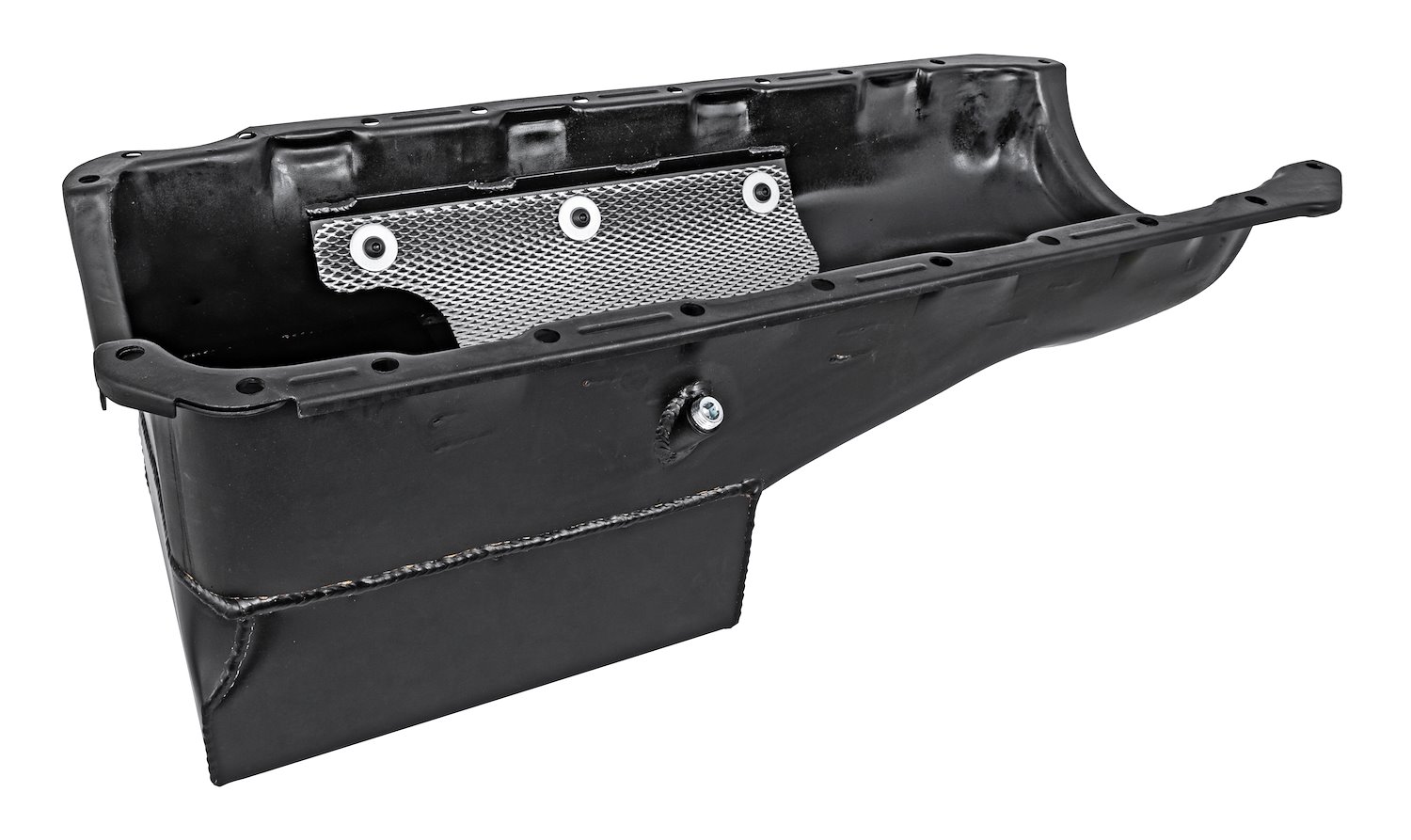

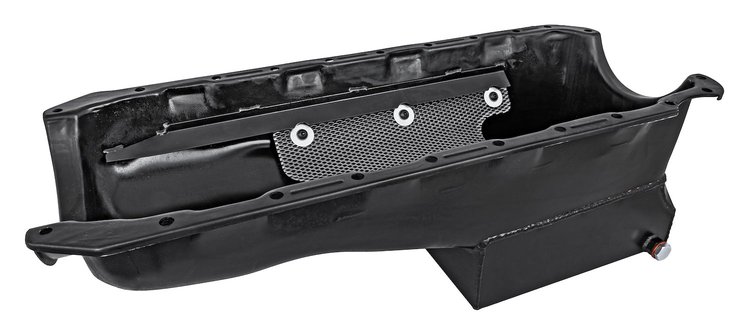

Street & Strip Oil Pan for 1965-1990 Big Block Chevy
InfoVehicle Info Needed
JEGSPART NUMBER: 555-50231

Street & Strip Oil Pan for 1965-1990 Big Block Chevy

$34999$377.99You Save$28.00
10 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Big Block Chevy
Street & Strip Oil Pan
  • 1965-1990 Big Block Chevy
  • 2-Piece Rear Main
  • Pan-Mounted Screw-In Dipstick
  • Fits Camaro & Chevelle (F-Body & A-Body)
  • 6-Quart Capacity Plus Filter

    JEGS 555-50231 Street & Strip Oil Pan Features:

    • Reinforced Pan Rails
    • Built-In Baffling
    • Trap Doors
    • Unidirectional Windage Screen
    • Crank Scraper
    • Magnetic Drain Plug
    • Accepts up to 4.250" stroke with steel rods
    • Passenger side drain plug
    • Use with Oil Pump Pickup Tubes 555-50245 & 555-50246

    JEGS 555-50231 Street & Strip Oil Pan Note:

    • Part TypeOil Pan
    BrandJEGS
    Package Height10.5
    Package Width15.4
    Package Length29.2
    Weight14.0 PG
    Part CategoryPerformance Parts
    Oil Pan Capacity6 quarts
    UsageStreet/Performance
    Hardware IncludedNo
    Dipstick ProvisionNo
    Maximum Stroke4.25 in (107.95 mm)
    Sump StyleWet
    Drain Plug Thread Size (In.)1/2-20
    Oil Pump Driveshaft IncludedNo
    QuantitySold individually
    Oil Pan FinishBlack painted
    Dipstick IncludedNo
    Engine Make/SizeChevy Big Block
    Oil Pump IncludedNo
    Oil Pan MaterialSteel
    Maximum Stroke With Oe Rod4.25 in (107.95 mm)
    Gaskets IncludedNo
    Oil Pan Depth8.25 in (209.6 mm)
    Rear Main Seal Style2-piece
    Sump LocationRear
    Crank Scraper IncludedYes
    Dipstick LocationPassenger side
    Part FitmentSemi Universal
    Kicked OutNo
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
