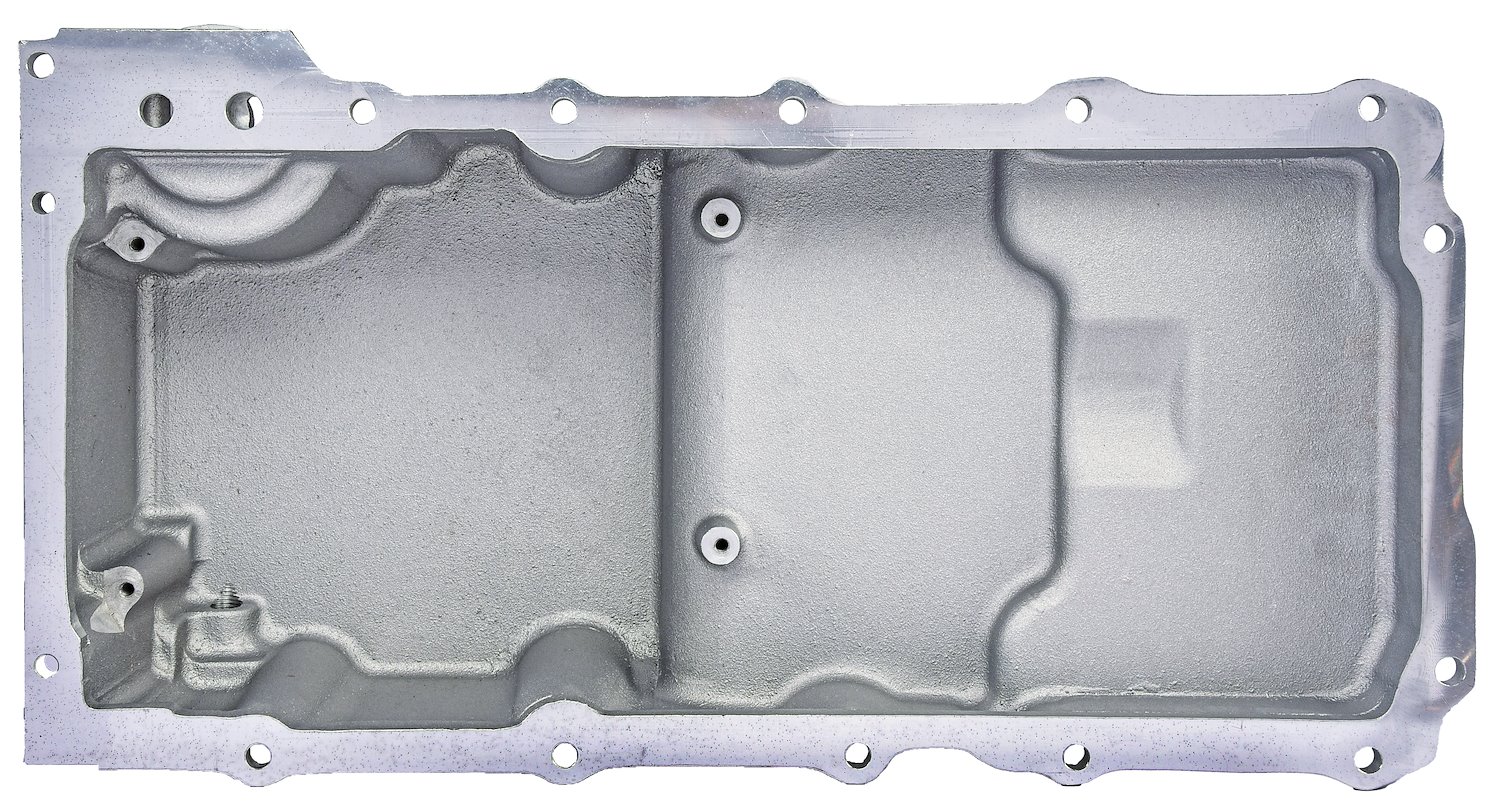

JEGS 555-50275 GM LS Retrofit Oil Pan Features:

• Desired for LS Engine Swaps
• Designed for Additional Chassis Clearance
• A Perfect Choice when More Engine-to-Chassis Clearance is Required Near the Front Half of the Oil Pan
• Cast Aluminum with Thick Ridges for Extra Strength
• Engineered for Clearance with OEM Fitment

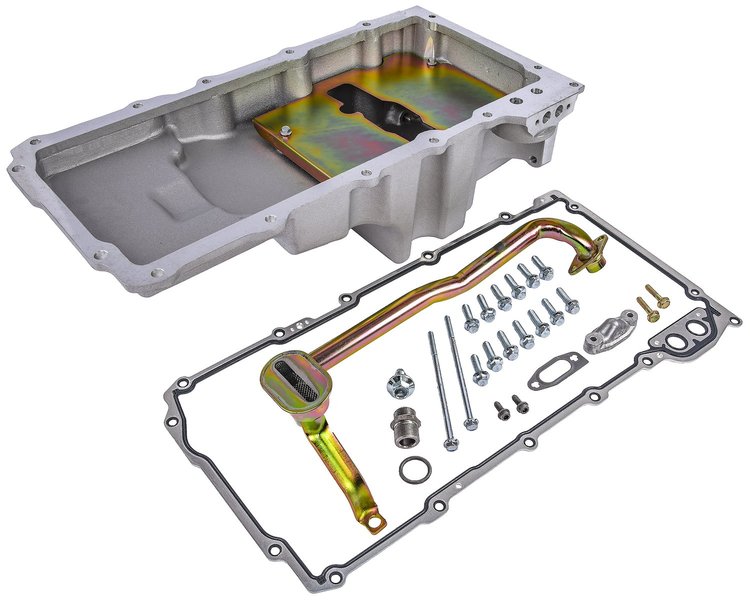

• Include Gasket, Sump Baffle, Pickup Tube, Oil Filter Stud, Oil Passage Cover Plus Drain Plug & Hardware

JEGS 555-50275 GM LS Retrofit Oil Pan Engine Swap Fitment:

• 1964-1972 GM A-Body
• 1967-1969, 1982-1992 Chevy Camaro & Pontiac Firebird
• 1968-1974 Chevy Nova, Buick Apollo, Pontiac Ventura, & Oldsmobile Omega
• 1978-1987 GM G-Body

JEGS 555-50275 GM LS Retrofit Oil Pan Note:

• This Pan was Designed to Allow for Additional Engine-to-Chassis Clearance in the Front Half of the Oil Pan. See the Illustration above for Dimensions.
• Pan is designed to accept 22mm x 1.250 in. thread oil filters used on 2007 & later LS series engines. We recommend JEGS oil filter
>
• Engineered for Clearance with OEM Fitment
• Include Gasket, Sump Baffle, Pickup Tube, Oil Filter Stud, Oil Passage Cover Plus Drain Plug & Hardware

JEGS 555-50275 GM LS Retrofit Oil Pan Engine Swap Fitment:

• 1964-1972 GM A-Body
• 1967-1969, 1982-1992 Chevy Camaro & Pontiac Firebird
• 1968-1974 Chevy Nova, Buick Apollo, Pontiac Ventura, & Oldsmobile Omega
• 1978-1987 GM G-Body

JEGS 555-50275 GM LS Retrofit Oil Pan Note:

• This Pan was Designed to Allow for Additional Engine-to-Chassis Clearance in the Front Half of the Oil Pan. See the Illustration above for Dimensions.
• Pan is designed to accept 22mm x 1.250 in. thread oil filters used on 2007 & later LS series engines. We recommend JEGS oil filter 555-JG113
• Maximum Stoke: 4 in.
• Not intended for dry sump engines
• If a full-length windage tray must be modified. The front quarter of the tray must be removed prior to installation.
• A 1998-2002 GM F-Body windage tray is designed to be used with this oil pan, 12558253, sold separately
