Retrofit Oil Pan for GM LS Series Turbo Engine Swaps with 1/2 NPT Turbo Oil Drain Back Ports [Cast Aluminum, Satin]

Name: Retrofit Oil Pan for GM LS Series Turbo Engine Swaps with 1/2 NPT Turbo Oil Drain Back Ports [Cast Aluminum, Satin]
Brand: JEGS
SKU: 555-50278
Price: 291.99 USD
Availability: InStock

^$291⁹⁹$395.99You Save$104.00

More than 10 available

Ships Tomorrow

Lowest Price Guarantee

Turbo Oil Pans

Retrofit Oil Pan

GM LS Series Turbo Engine Swaps

Designed for Additional Chassis Clearance

5.7 qt Capacity + Filter

Cast Aluminum

Satin Finish

Includes Two 1/2 in. NPT Turbo Oil Drain Ports

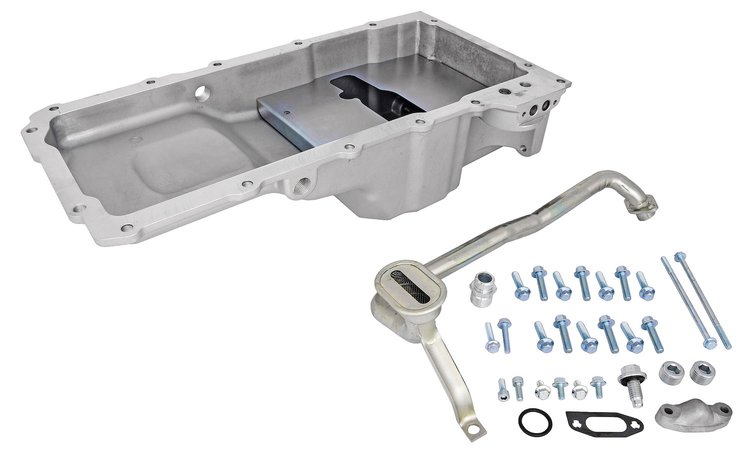

JEGS 555-50278 GM LS Retrofit Oil Pan for Turbo Engine Swaps Includes:

(1) Oil Pickup Tube
(1) Oil PickUp Tube Rubber O-ring
(2) Oil Pick-Up Tube Bolts: M6-1.0 x 16 mm (.629 in.) UHL with 5 mm Allen Head
(1) Oil Sump Baffle
(4) Oil Sump Baffle Bolts: 1/4 in.-20 x .500 in. UHL with 3/8 in. Hex Head
(1) Oil Passage Cover
(2) Oil Passage Cover Bolts: M6-1.0 x 28 mm (1.102 in.) UHL with 10 mm Hex Head
(1) Oil Passage Cover Gasket
(1) Oil Filter Stud
(1) Drain Plug: M12-1.75 x 25 mm (1 in.) UHL with 15 mm Hex Head
(2) 1/2 in. NPT Pipe Plugs
(12) Pan Bolts: M8-1.25 x 30 mm (1.181 in.) UHL with 10 mm Hex Head
(2) Oil Pan Bolts: M6-1.0 x 135 mm (5.315 in.) UHL with 10 mm Hex Head

JEGS 555-50278 GM LS Retrofit Oil Pan for Turbo Engine Swaps Features:

The Perfect Choice for GM LS Turbo Engine Swaps
Includes Two Turbo Oil Drain Back Ports
Cast Aluminum with Thick Ridges for Extra Strength
Engineered for Additional Frame Clearance with OEM Fitment
Retains Stock Oil Filter Location

Engine Swap Fitment:

1967-1969 Chevrolet Camaro & Pontiac Firebird
1968-1974 Buick Apollo, Chevrolet Nova, Oldsmobile Omega, and Pontiac Ventura
1982-1992 Chevrolet Camaro and Pontiac Firebird
1978-1987 GM G-Body
1964-1972 GM A-Body

Note: This Pan was Designed to Allow for Additional Engine-to-Chassis Clearance in the Front Half of the Oil Pan. See the Illustration above for Dimensions.

Retrofit Oil Pan Kits for Your LS Swap

Tested and proven for versatility, JEGS GM LS Oil Pans will eliminate any fitment issues that may arise during your engine swap. Made to simplify installation, these cast aluminum oil pans are designed with a stock-style oil filter mount and a sump depth that will clear most chassis as well as the ground without modification.

Part TypeOil Pan

Product LineJEGS GM LS Series Oil Pans

BrandJEGS

Package Height6.9

Package Width12.6

Package Length23.3

Weight14.05 PG

Oil Pan Capacity5 3/4 quarts

Drain Plug Thread SizeM12-1.750

UsageStreet/Strip

Hardware IncludedYes

Sump StyleWet
