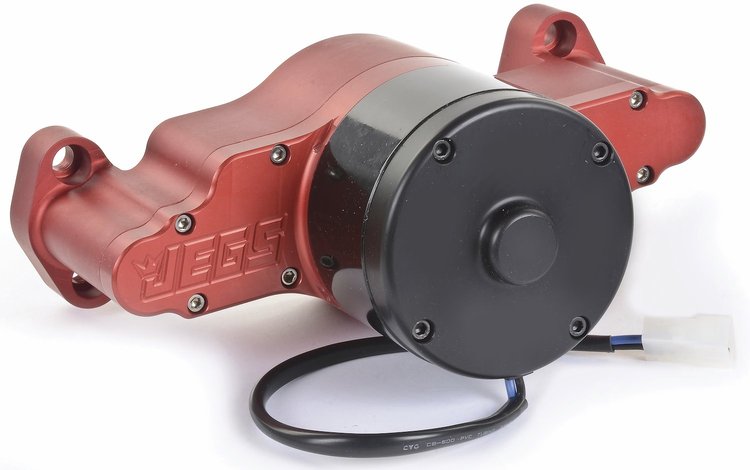

![Electric Water Pump for Small Block Chevy [50 GPM, Red Anodized]](https://www.jegs.com/images/mini_750/500/555/555-50902.jpg)
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Note: Requires use of JEGS o-ring style hose adapter. These red-anodized aluminum hose adapters are sold separately and available in 1 1/2 in. O.D. 555-50906-2 & 1 3/4 in. O.D. 555-50907-2 sizes.

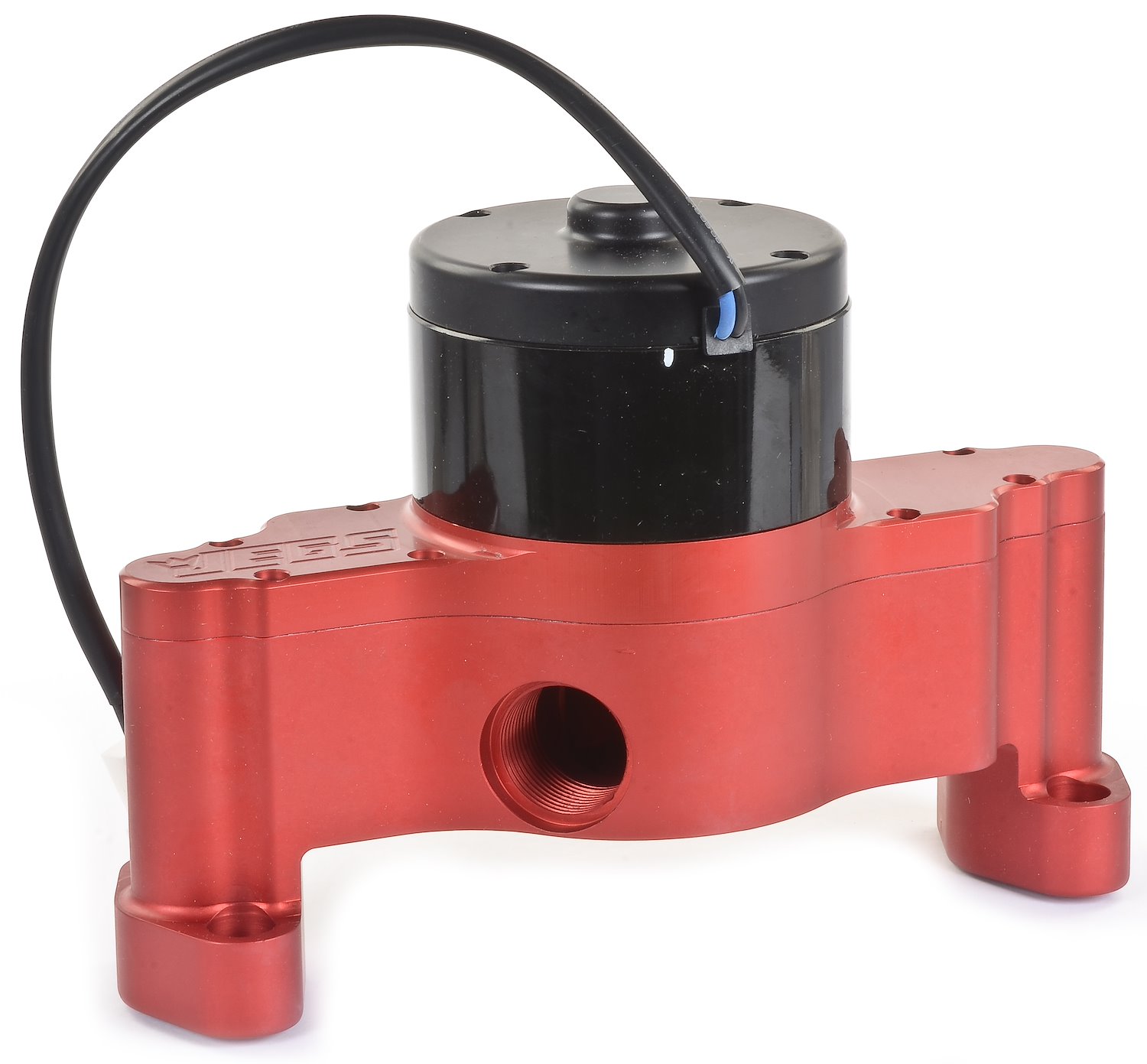

JEGS 50902 Water Pump Features:
- Only 7 3/4 lbs.
- Heavy-duty epoxy-coated 12-volt electric motor
- Draws only 6 Amps
- Billet aluminum 6061 impeller is anodized to resist corrosion
- Stainless steel motor shaft with jacketed seal
- Machined with O-rings for tight block sealing (no gaskets needed)
Includes:
- (1) 14 Gauge Wiring Harness with fuse holder and 20 amp fuse
- (4) Stainless Steel Socket Head Mounting Bolts: 3/8 in.-16 x 1 in. UHL, with 8 mm Allen Head
- (1) 1/8 in. NPT Pipe Plug
- Installation Instructions
50 GPM Billet Water Pumps That Outperform The Competition
JEGS Electric Water Pumps are CNC-machined from billet aluminum and look as impressive as they perform. Our pumps have a unique design that delivers 50 GPM (Gallons Per Minute) of coolant flow that outperforms any other in its price range. If you are looking for the perfect high-performance racing pump that can perform continuously on the street, look no further. Available in black, blue, red, and clear anodized finishes.
