![Electric Water Pump for Small Block Chevy [50 GPM, Blue Anodized]](https://www.jegs.com/images/mini_750/500/555/555-50903.jpg)
Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

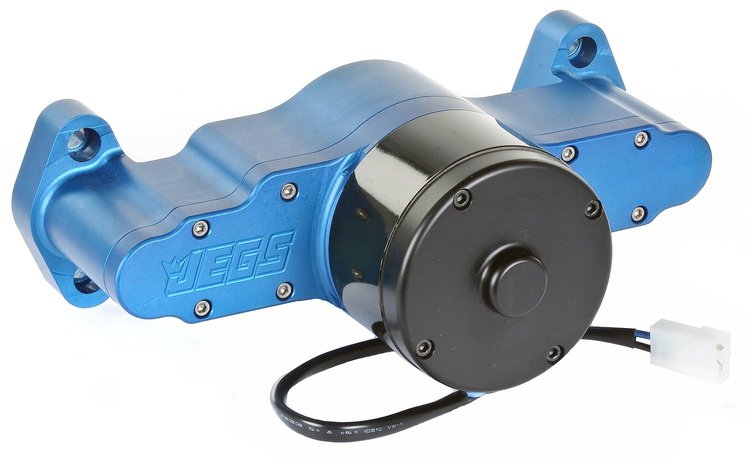

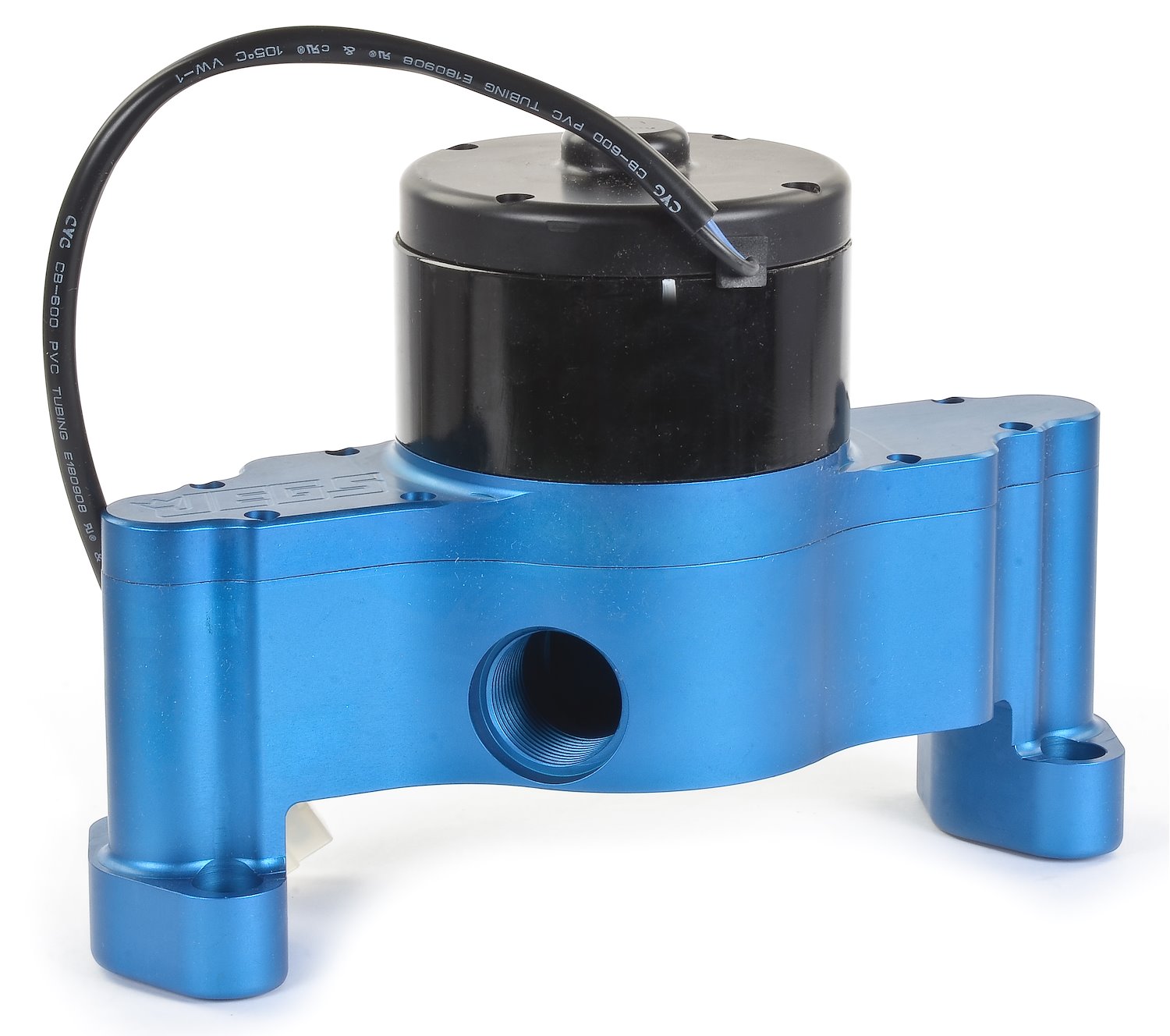

Small Block Chevy Pump
Electric Water PumpSmall Block Chevy 50 GPM (Gallons Per Minute) Flow Rate 6 Amps Heavy-Duty Motor Billet Aluminum Blue Anodized Finish
Note: Requires use of JEGS o-ring style hose adapter. These blue-anodized aluminum hose adapters are sold separately and available in 1 1/2 in. O.D. 555-50906-3 & 1 3/4 in. O.D. 555-50907-3 sizes.
JEGS 50917 Water Pump Features:
- Only 7-3/4 lbs.
- Heavy-duty electric 12-volt motor is epoxy coated
- Draws only 6 Amps
- Billet aluminum 6061 impeller is anodized to resist corrosion
- Stainless steel motor shaft with jacketed seal
- Machined with O-rings for tight block sealing (no gaskets needed)
Includes:
- (1) 14 Gauge Wiring Harness with fuse holder and 20 amp fuse
- (4) Stainless Steel Socket Head Mounting Bolts: 3/8 in.-16 x 1 in. UHL, with 8 mm Allen Head
- (1) 1/8 in. NPT Pipe Plug
- Installation Instructions
Part TypeWater Pump
BrandJEGS
Package Height5.2
Package Width9.2
Package Length11.9
Weight8.3 PG
Weight7.75 lb (3.515 kg)
Part CategoryPerformance Parts
Inlet Hose SizeN/A
Hose Adapter IncludedNo
Pilot DiameterN/A
Hose Adapter Thread Size1-1/4"-12
Overall Depth7 in (177.8 mm)
Water Pump RotationN/A
MaterialAluminum
Engine Make/SizeChevy Small Block (262-400)
Pump FlowN/A
Hose Adapter RequiredYes
TypeElectric
Amp Draw6.00 amps
StyleStreet/High-Performance
Part FitmentSemi Universal
Flow Rate @ 12 Volts (Gpm)50 GPM
Inlet Hose AttachmentMale threads
FinishBlue Anodized
Package Qty1
Package TypeEA
