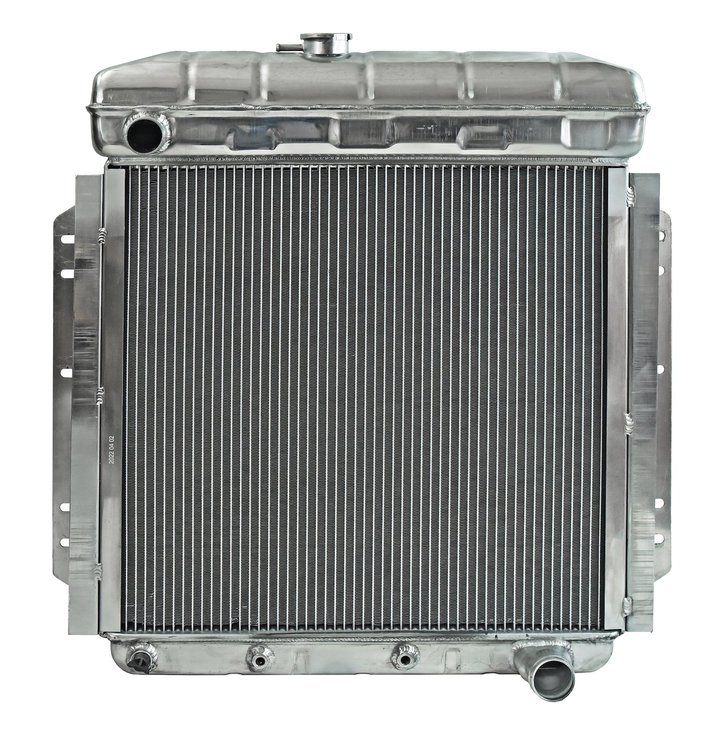

JEGS 555-511400 Aluminum Radiator for Chevy Engine Conversion Features:

• Designed to Fit 1953-1956 Ford Pickup with Chevrolet V8 Engine Conversion
• Direct Replacement Bolt-in Radiator, "Looks Like the Original"
• Original Style Stamped Tanks and Mounting Brackets
• Inlet and Outlet Attached for Specific Engine Conversion
• Made with High-Quality 100-percent Aluminum and Fully Tig Welded
• Downflow Design
• Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
• Core Width: 22 3/4 in.
• Core Height: 19 3/4 in.
• Core Thickness: 2 3/4 in.
• Overall Dimensions at Widest Point
  • Overall Width: 26 1/4 in.
  • Overall Height: 28 in.
  • Overall Thickness: 4 in.
• Inlet Size: 1 1/2 in. Diameter
• Inlet Location: Left/Driver Side Upper
• Outlet Size: 1 3/4 in. Diameter
• Outlet Location: Right/Passenger Side Lower
• Built-in Transmission Cooler
• The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference.

JEGS 555-511400 Aluminum Radiator for Chevy Engine Conversion Notes:

• Will Work with Automatic or Manual Transmission Applications
