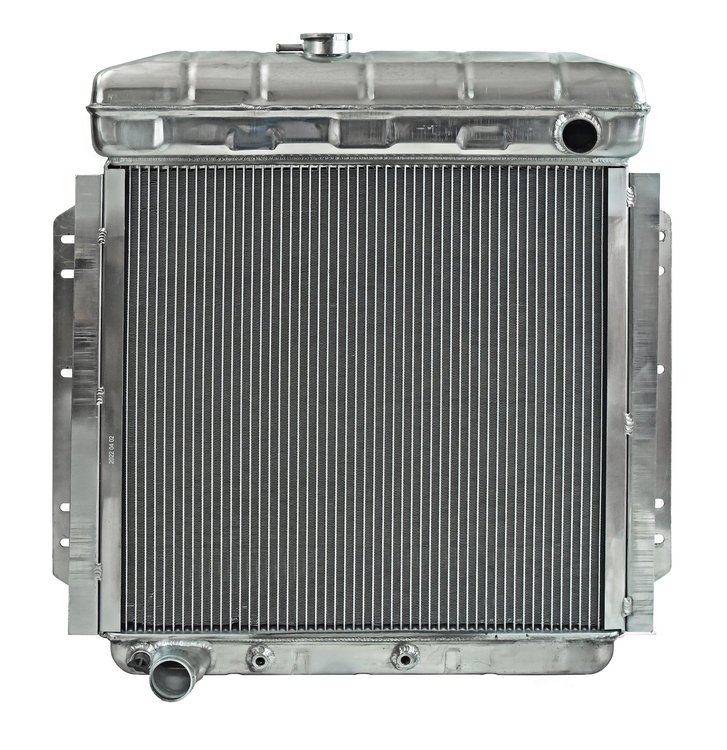

Aluminum Radiator for 1953-1956 Ford Pickup With Ford V8 Engine Conversion

Name: Aluminum Radiator for 1953-1956 Ford Pickup With Ford V8 Engine Conversion
Brand: JEGS
SKU: 555-511402
Price: 334.99 USD
Availability: InStock

^$334⁹⁹$368.99You Save$34.00

Ships on Sep 04, 2026

Lowest Price Guarantee

Ford Pickup w/Ford V8 Engine

Aluminum Radiator

Fits 1953-1956 Ford Pickup w/Ford V8 Engine Conversion

Direct Fitment

2-Row 1 1/8 in. Wide High Flow Tubes

Aluminum Construction

Semi-Polished Finish

JEGS 555-511402 Aluminum Radiator for Ford Engine Conversion Features:

Designed to Fit 1953-1956 Ford Pickup Truck w/Ford V8 Engine Conversion
Direct Replacement Bolt-in Radiator, "Looks Like the Original"
Original Style Stamped Tanks and Mounting Brackets
Inlet and Outlet Attached for Specific Engine Conversion
Made with High-Quality 100-percent Aluminum and Fully Tig Welded
Downflow Design

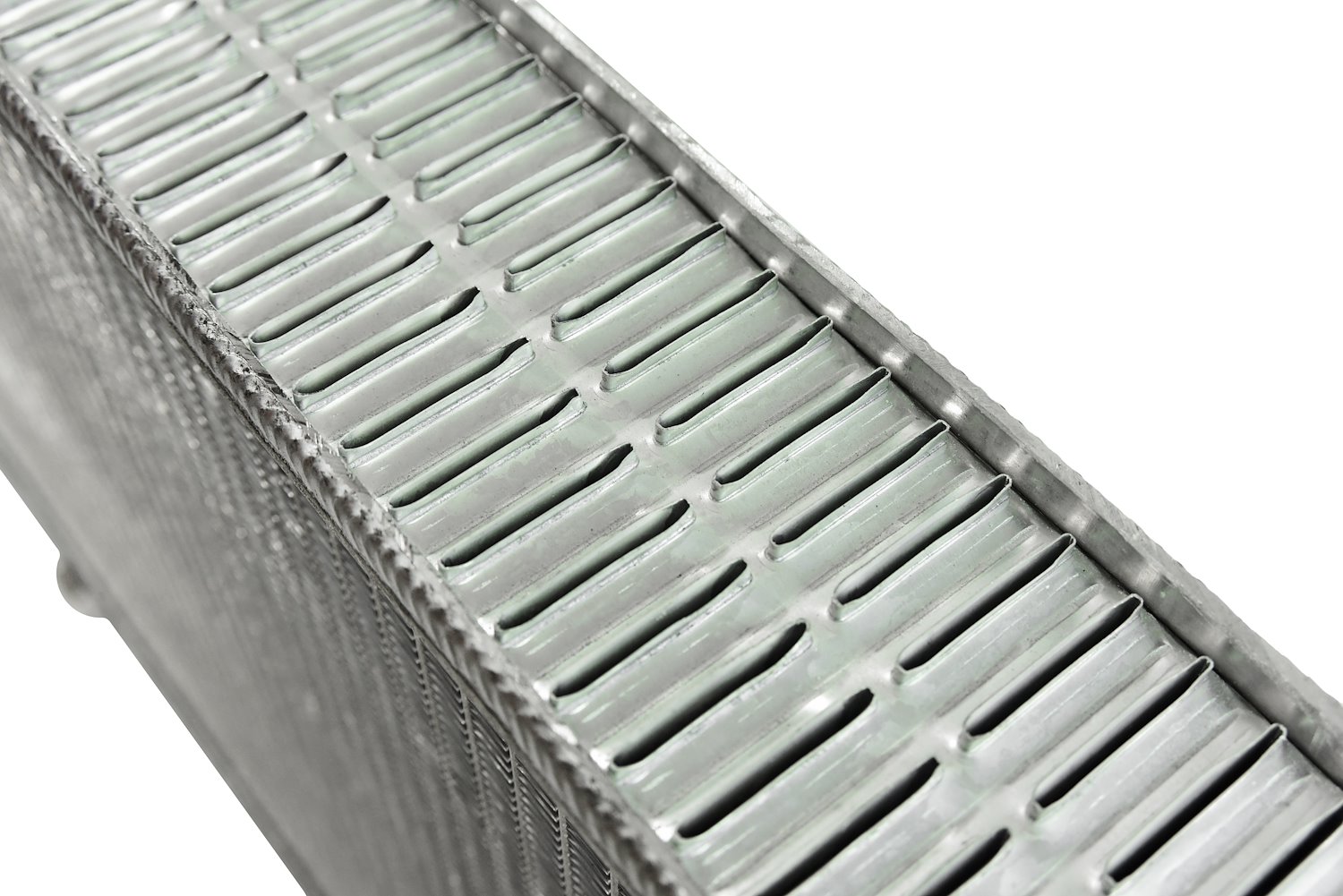

Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
Core: 21 in. Wide x 17 1/4 in. High x 2 1/2 in. Thick
Overall Dimensions at Widest Point
- Overall Height: 23 1/2 in.
- Overall Width: 25 3/4 in.
- Overall Thickness: 3 in.
Inlet: 1 1/2 in. Diameter Center Upper
Outlet: 1 3/4 in. Diameter Right/Passenger Side Lower
Built-in Transmission Cooler
The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference.

JEGS 555-511511 Aluminum Radiator for Ford Engine Conversion Notes:

Will Work with Automatic or Manual Transmission Applications

Efficient Cooling for Your Engine Conversion

JEGS Aluminum Conversion Radiators for Cars, Jeeps, and Trucks are designed to make your engine conversion project a breeze and provide efficient cooling. Each radiator is hand-made from 100-percent aluminum with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific engine conversion application. These units are a direct bolt-in to the factory vehicle location, easy to install, and will provide your ride with a clean look.

JEGS also offers other Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods, and Ready-Fit Radiators for Cars and Trucks. For more information CLICK on the Links Below.

Part TypeRadiator

Product LineJEGS Aluminum Conversion Radiators for Cars, Jeeps and Trucks

BrandJEGS

Package Height8.0

Package Width30.0

Package Length30.0

Weight22.0 PG

Part CategoryPerformance Parts

Overall Height28 in (711.2 mm)

Outlet Size1.75 in (44.5 mm)

Inlet Size1.500 in.

Radiator MaterialAluminum
