Vehicle Info NeededJEGSPART NUMBER: 555-511408

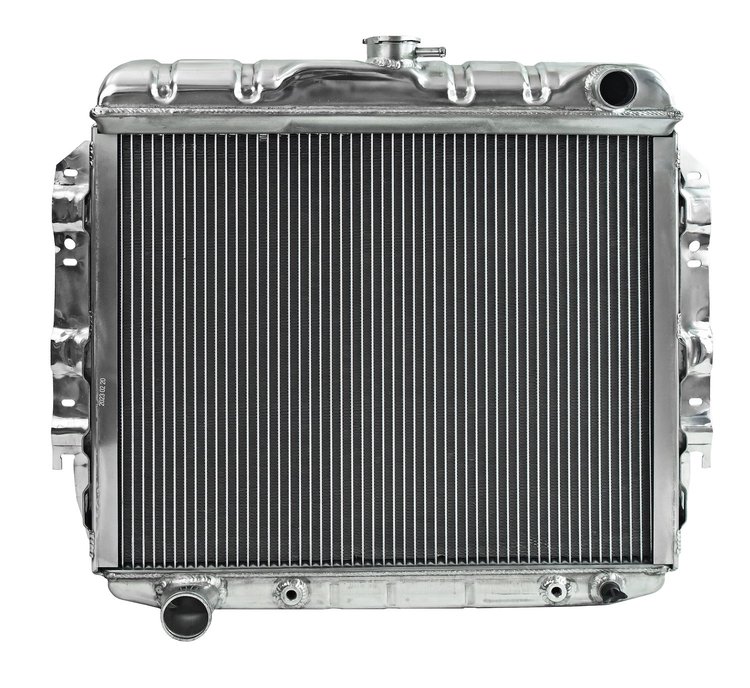

Reproduction Aluminum Radiator for Select 1965-1966 Mopar A Bodies With Upper Right Side Inlet
$33499$368.99You Save$34.00
Ships Tomorrow
Lowest Price GuaranteeMopar A-Body
Reproduction Aluminum Radiator1965-1966 Dodge Dart, Duster 1965-1966 Plymouth Baracuda, Valiant Direct Fitment Improved Cooling Efficency 2-Row 1 1/8 in. Wide High Flow Tubes Aluminum Semi-Polished
JEGS 555-511408 Reproduction Aluminum Radiator Features:
- Direct Replacement Bolt-in Radiator, "Looks Like the Original"
- Original Style Stamped Tanks and Mounting Brackets
- Made with High-Quality 100-percent Aluminum and Fully Tig Welded
- Downflow Design
- Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
- Core: 17 in. Wide x 21 in. High x 2 3/4 in. Thick
- Overall Height: 23 in.
- Overall Width: 25 1/2 in.
- Inlet: 1 1/2 in. Diameter Right/Passenger Side Upper
- Outlet: 1 3/4 in. Diameter Left/Driver Side Lower
- Built-in Transmission Cooler
- Semi-Polished Finish That Can Be Easily Painted
JEGS 555-511408 Reproduction Aluminum Radiator Notes:
- Will Work With Automatic or Manual Transmissions
Performance Cooling for Your Classic Car
JEGS Reproduction Aluminum Radiators for Classic Cars are designed to replace your factory OE copper brass radiator. Each radiator is hand-made from 100-percent aluminum material with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific application. These radiators have a factory OE-Style look and provide increased cooling performance. JEGS Reproduction Aluminum Radiators are available with or without an electric cooling fan and shroud.
JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Reproduction Aluminum Radiators for Classic Cars
BrandJEGS
Package Height7.0
Package Width25.0
Package Length27.0
Weight20.0 PG
Overall Thickness4 in (101.6 mm)
Overall Height23 in (584.2 mm)
Outlet Size1.75 in (44.5 mm)
Inlet Size1.500 in.
Radiator Cap IncludedNo
Radiator MaterialAluminum
Inlet LocationUpper passenger side
2 Row Core Thickness2.75 in (69.85 mm)
Core Height17 in (431.8 mm)
Core Thickness2.75 in (69.85 mm)
Trans Cooler Line Connection1/8-27 NPT
Core Width21 in (533.4 mm)
Row Quantity2
Overall Width25.5 in (647.7 mm)
Radiator TypePerformance Replacement
Radiator FinishSemi-Polished
Fan IncludedNo
Transmission CoolerYes
Radiator StyleDownflow
Package Qty1
Package TypeEA
