JEGSPART NUMBER: 555-511420

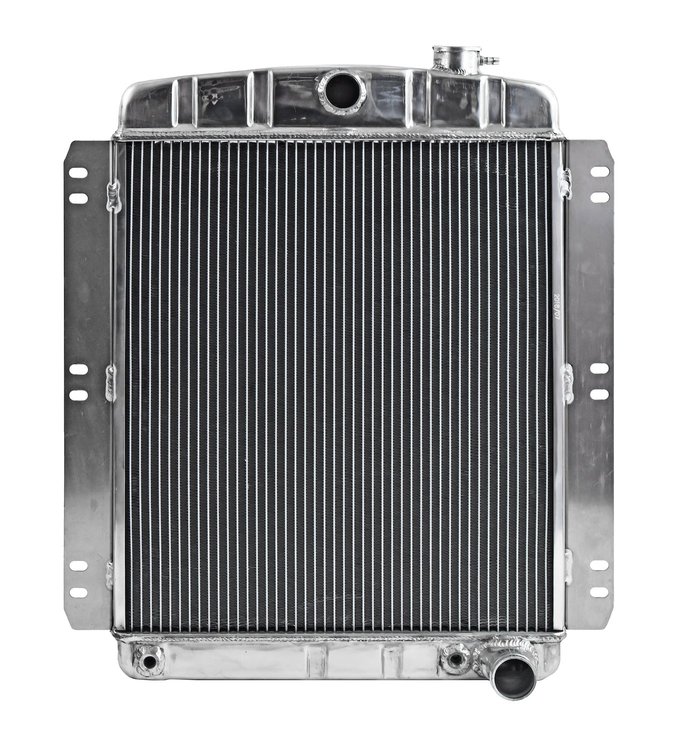

Reproduction Aluminum Radiator for 1948-1954 Chevrolet & GMC Trucks
$28999$318.99You Save$29.00
Items You Need
Chevrolet & GMC Pickup
Reproduction Aluminum Radiator1948-1954 Chevrolet & GMC Trucks Direct Fitment Improved Cooling Efficiency 2-Row 1 1/8 in. Wide High Flow Tubes Aluminum Construction Semi-Polished Finish
JEGS 555-511420 Reproduction Aluminum Radiator Features:
- Designed to Fit 1942-1947 Chevrolet & GMC Trucks
- Direct Replacement Bolt-in Radiator, "Looks Like the Original"
- Original Style Stamped Tanks and Mounting Brackets
- Made with High-Quality 100-percent Aluminum and Fully Tig Welded
- Downflow Design
- Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
- Core Width: 17 3/4 in.
- Core Height: 20 3/4 in.
- Core Thickness: 2 1/2 in.
- Overall Dimensions at Widest Point
- Overall Width: 22 1/2 in.
- Overall Height: 26 3/4 in.
- Overall Thickness: 3 in.

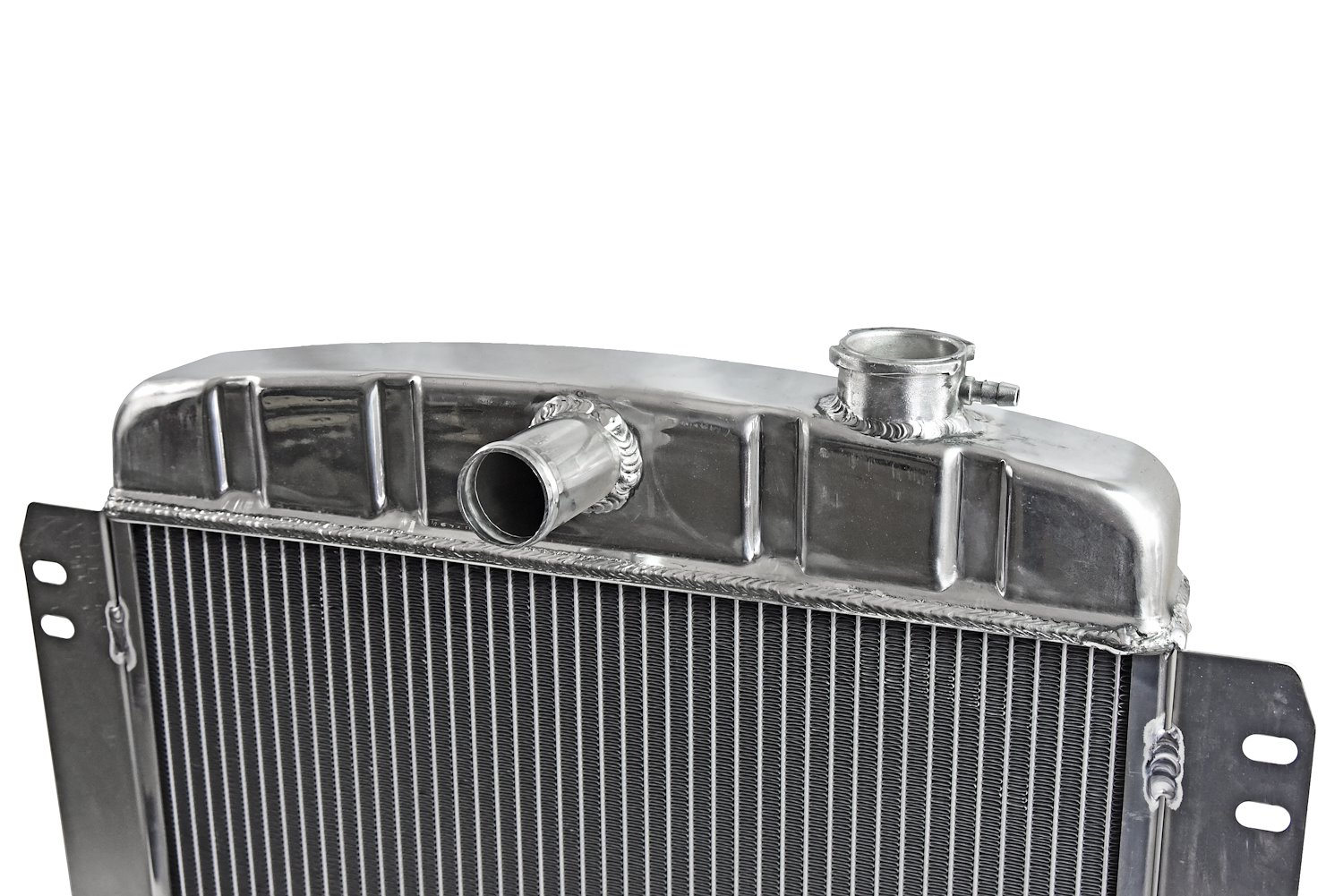

- inlet size: 1 1/2 in. Diameter
- Inlet Location: Center Upper
- Outlet Size: 1 3/4 in. Diameter
- Outlet Location: Right/Passenger Side Lower
- Built-in Transmission Cooler
- The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference
JEGS 555-511420 Reproduction Aluminum Radiator Notes:
- Will Work With Automatic or Manual Transmissions
Improved Cooling for Your Classic Truck
JEGS Reproduction Aluminum Radiators for Classic Trucks are designed to replace your factory OE copper brass radiator and look like the original unit. These radiators provide an OE look with increased cooling efficiency and are available with or without an electric cooling fan and shroud.
JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Reproduction Aluminum Radiators for Classic Trucks
BrandJEGS
Package Height8.0
Package Width25.0
Package Length28.0
Weight20.0 PG
Overall Thickness3 in (76.2 mm)
Overall Height26.75 in (679.5 mm)
Outlet Size1.75 in (44.5 mm)
Inlet Size1.500 in.
Radiator Cap IncludedYes
Drain Valve IncludedYes
QuantitySold Individually
Inlet LocationUpper center
2 Row Core Thickness2.5 in (63.5 mm)
Core Height20.75 in (527.05 mm)
Core Thickness2.5 in (63.5 mm)
Trans Cooler Line Connection1/4-18 NPT
Mounting Brackets IncludedYes
Core Width17.75 in (450.85 mm)
Outlet LocationLower passenger side
Overall Width22.5 in (571.5 mm)
Tube Size1.125 in (28.575 mm)
Transmission CoolerYes
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
