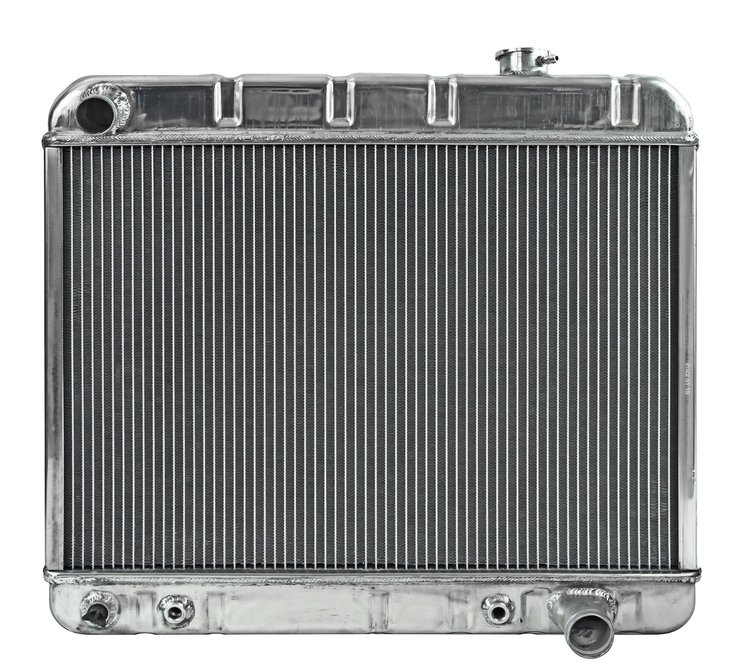

Reproduction Aluminum Radiator for 1963-1966 Chevrolet & GMC Trucks

Name: Reproduction Aluminum Radiator for 1963-1966 Chevrolet & GMC Trucks
Brand: JEGS
SKU: 555-511433
Price: 349.99 USD
Availability: InStock

^$349⁹⁹$384.99You Save$35.00

Ships Tomorrow

Lowest Price Guarantee

Chevrolet & GMC Pickup

Reproduction Aluminum Radiator

1963-1966 Chevrolet & GMC Trucks

Direct Fitment

Improved Cooling Efficiency

2-Row 1 1/8 in. Wide High Flow Tubes

Aluminum Construction

Semi-Polished Finish

JEGS 511433 Reproduction Aluminum Radiator Features:

Designed to Fit 1963-1966 Chevrolet & GMC Trucks
Direct Replacement Bolt-in Radiator, "Looks Like the Original"
Original Style Stamped Tanks
Made with High-Quality 100-percent Aluminum and Fully Tig Welded
Downflow Design
Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
Core Width: 25 in.
Core Height: 17 in.
Core Thickness: 2 1/2 in.
Overall Dimensions at Widest Point
- Overall Width: 25 1/4 in.
- Overall Height: 23 1/4 in.
- Overall Thickness: 3 in.
inlet size: 1 1/2 in. Diameter
Inlet Location: Left/Driver Side Upper
Outlet Size: 1 3/4 in. Diameter
Outlet Location: Right/Passenger Side Lower
Built-in Transmission Cooler
The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference

JEGS 555-511433 Reproduction Aluminum Radiator Notes:

Will Work with Automatic or Manual Transmission Applications

Improved Cooling for Your Classic Truck

JEGS Reproduction Aluminum Radiators for Classic Trucks are designed to replace your factory OE copper brass radiator and look like the original unit. These radiators provide an OE look with increased cooling efficiency and are available with or without an electric cooling fan and shroud.

JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.

Part TypeRadiator

Product LineJEGS Reproduction Aluminum Radiators for Classic Trucks

BrandJEGS

Package Height8.0

Package Width26.0

Package Length30.0

Weight20.0 PG

Overall Thickness3 in (76.2 mm)

Overall Height23.25 in (590.6 mm)

Outlet Size1.75 in (44.5 mm)

Inlet Size1.500 in.

Drain Valve IncludedYes
