Reproduction Aluminum Radiator Fits Select 1982-1991 Chevrolet & GMC Trucks w/7.4L 454 V8 Gas & 6.2L Detroit Diesel Engines
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511457

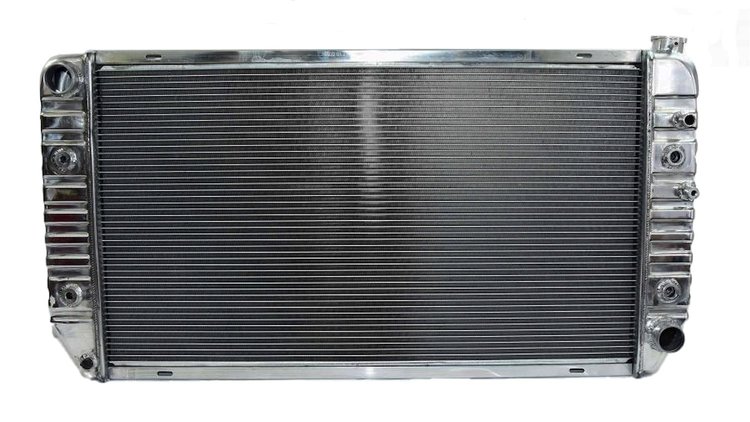

Reproduction Aluminum Radiator Fits Select 1982-1991 Chevrolet & GMC Trucks w/7.4L 454 V8 Gas & 6.2L Detroit Diesel Engines

$31999$351.99You Save$32.00
ShippingShips on 11/11/2026
Lowest PriceLowest Price Guarantee

Items You Need

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

Part Number : 555-51161
$2512$26.99
You Save$1.87
Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

JEGS

Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

Part Number : 555-16056
$414$4.99
You Save$0.85
Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

JEGS

Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

Part Number : 555-511035
$5499$60.99
You Save$6.00
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999

Chevrolet & GMC Pickup
Reproduction Aluminum Radiator
  • 1982-1986 Chevrolet & GMC P-Series Van w/7.4L Gas Eng.
  • 1982-1991 Chevrolet & GMC Truck w/6.2L Detroit Diesel Eng.
  • Direct Fitment
  • Improved Cooling Efficiency
  • 2-Row 1 1/8 in. Wide High Flow Tubes
  • Aluminum C

    JEGS 511457 Reproduction Aluminum Radiator Features:

    • 1982-1986 Chevrolet and GMC P-Series Van w/7.4L (454) Gas Engine
    • 1982-1991 Chevrolet & GMC Trucks w/6.2L (379) V8 Detroit Diesel Engine
    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"
    • Original Style Stamped Tanks and Mounting Brackets
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Crossflow Design
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core Width: 33 3/4 in.
    • Core Height: 18 3/4 in.
    • Core Thickness: 2 1/2 in.
    • Overall Dimensions at Widest Point
      • Overall Width: 41 in.
      • Overall Height: 22 in.
      • Overall Thickness: 3 in.

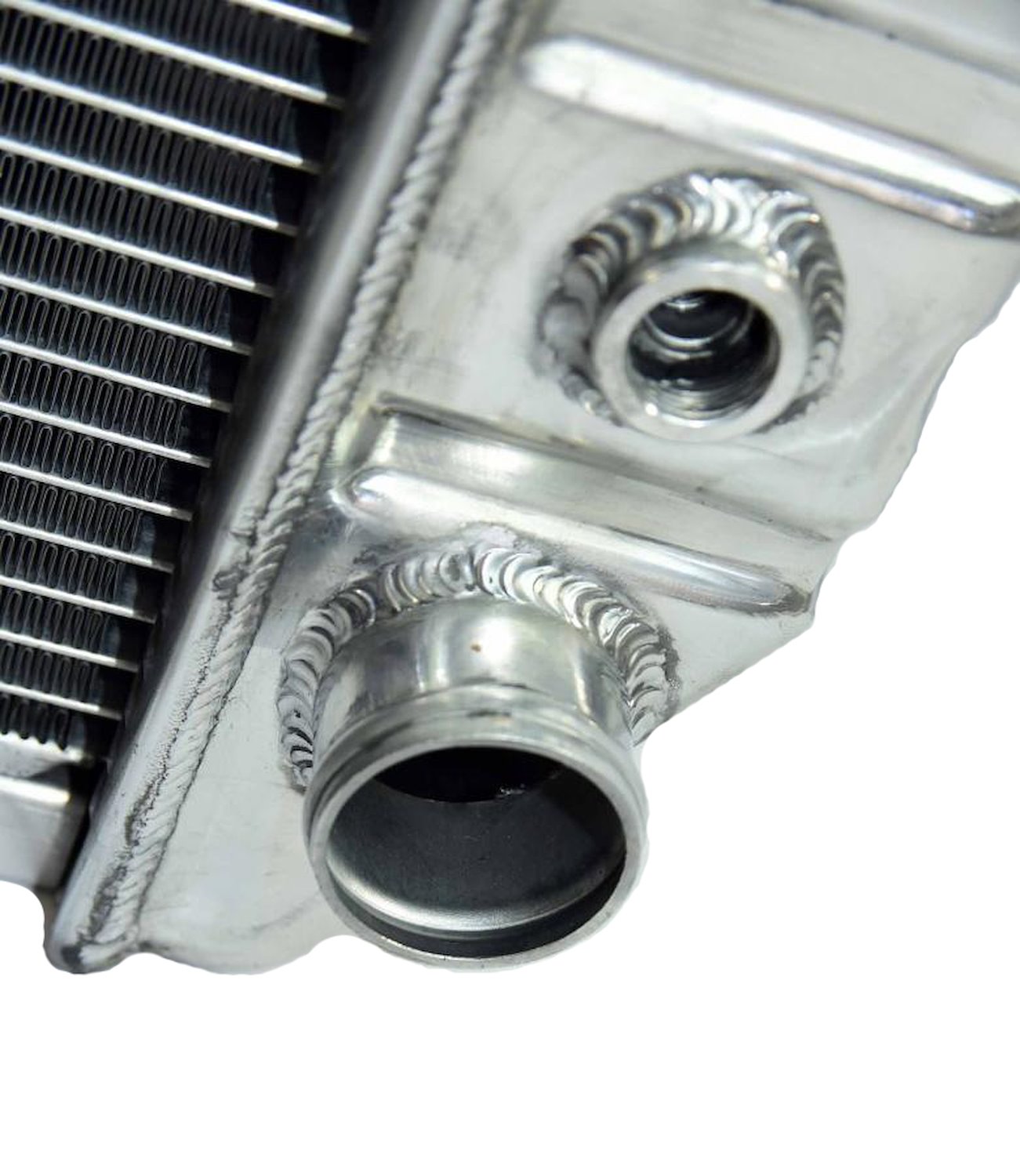

    • Inlet Size: 1 3/4 in. Diameter
    • Inlet Location: Left/Driver Side Upper
    • Outlet Size: 1 3/4 in. Diameter
    • Outlet Location: Right/Passenger Side Lower
    • Built-in Transmission Cooler w/ 1/2-20 Fitting Size
    • Includes Engine Oil Cooler w/ 3/4-18 Inverted Flare Fitting Size, Coolant Sensor Port, and Heater Return Port
    • The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference

    JEGS 555-511457 Reproduction Aluminum Radiator Notes:

    • Will Work with Automatic or Manual Transmission Applications

    • Improved Cooling for Your Classic Truck

    JEGS Reproduction Aluminum Radiators for Classic Trucks are designed to replace your factory OE copper brass radiator and look like the original unit. These radiators provide an OE look with increased cooling efficiency and are available with or without an electric cooling fan and shroud.

    JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Reproduction Aluminum Radiators for Classic Trucks
    BrandJEGS
    Package Height6.0
    Package Width24.0
    Package Length43.0
    Weight29.0 PG
    Part CategoryReplacement Parts
    Overall Thickness3 in (76.2 mm)
    Overall Height22 in (558.8 mm)
    Inlet Size1.75 in (44.5 mm)
    Radiator Cap IncludedNo
    Inlet LocationUpper driver side
    Core Width33.75 in (857.25 mm)
    Row Quantity2
    Overall Width41 in (1041.4 mm)
    Tube Size1.125 in (28.575 mm)
    Radiator FinishSemi-Polished
    Transmission CoolerYes
    Radiator StyleCrossflow
    Outlet Size1.75 in (44.5 mm)
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    QuantitySold individually
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height18.75 in (476.25 mm)
    Core Thickness2.5 in (63.5 mm)
    Trans Cooler Line Connection1/2-20 FINE
    Mounting Brackets IncludedNo
    Outlet LocationLower passenger side
    Radiator TypePerformance Replacement
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
