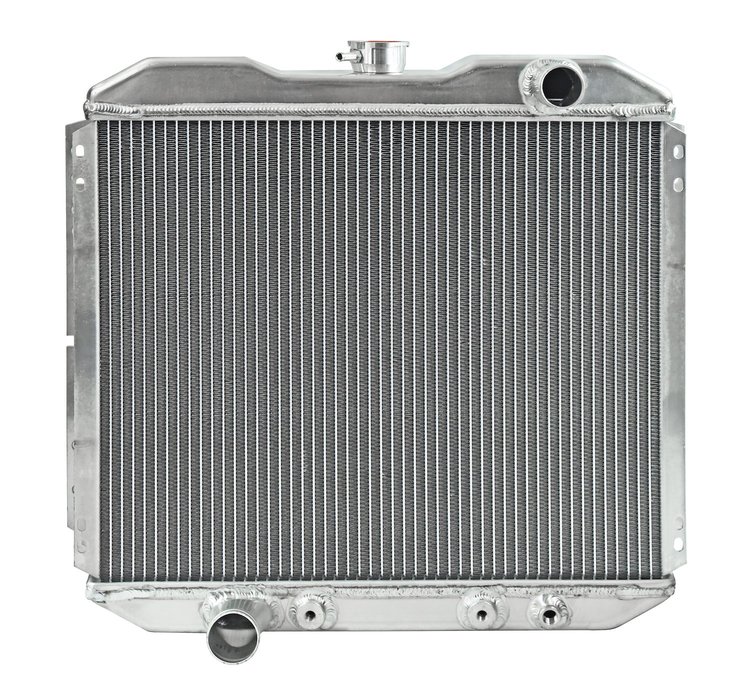

JEGS 555-511458 Reproduction Aluminum Radiator Features:

• Direct Replacement Bolt-in Radiator, "Looks Like the Original"
• Original Style Stamped Tanks and Mounting Brackets
• Made with High-Quality 100-percent Aluminum and Fully Tig Welded
• Downflow Design
• Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
• Core: 19 1/2 in. Wide x 16 1/2 in. High x 2 1/4 in. Thick
• Overall Height: 21 1/4 in.
• Overall Width: 20 1/2 in.
• Inlet: 1 1/2 in. Diameter Right/Passenger Side Upper
• Outlet: 1 3/4 in. Diameter Left/Driver Side Lower
• Built-in Transmission Cooler
• Semi-Polished Finish That Can Be Easily Painted

JEGS 555-511458 Reproduction Aluminum Radiator Notes:

• Will Work With Automatic or Manual Transmissions
