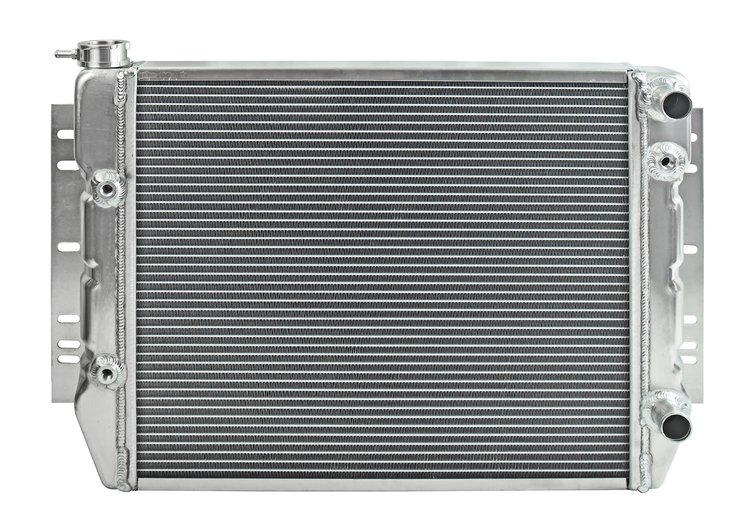

JEGS 555-511464 Aluminum Radiator for GM LS Engine Conversion Features:

• Designed to Fit 1959-1970 Chevy Bel Air, Biscayne, Caprice, Impala & 1964-1967 Chevrolet Chevelle w/GM LS Engine Conversion
• Direct Fit to Factory V8 or 6 Cylinder Core Support for LS Engines, Mounts on the Grill Side of Either Core Support
• Direct Replacement Bolt-in Radiator, "Looks Like the Original"
• Original Style Stamped Tanks and Mounting Brackets
• Inlet and Outlet Attached for Specific Engine Conversion
• Made with High-Quality 100-percent Aluminum and Fully Tig Welded
• Crossflow Design
• Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
• Core: 26 in. Wide x 16 in. High x 2 1/2 in. Thick
• Overall Dimensions at Widest Point
  • Overall Height: 17 in.
  • Overall Width: 30 in.
  • Overall Thickness: 3 in.
• Inlet: 1 1/2 in. Diameter Right/Passenger Side Upper
• Outlet: 1 1/2 in. Diameter Right/Passenger Side Lower
• Built-in Provision on Right/Passenger Side Tank for LS Engine Steam Port
• Built-in Transmission Cooler
• The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference.

JEGS 555-511464 Aluminum Radiator for GM LS Engine Conversion Notes:

• You Will Need to Make Provisions for Your Radiator Hoses on Your Side Panels
• Will Work with Automatic or Manual Transmission Applications
