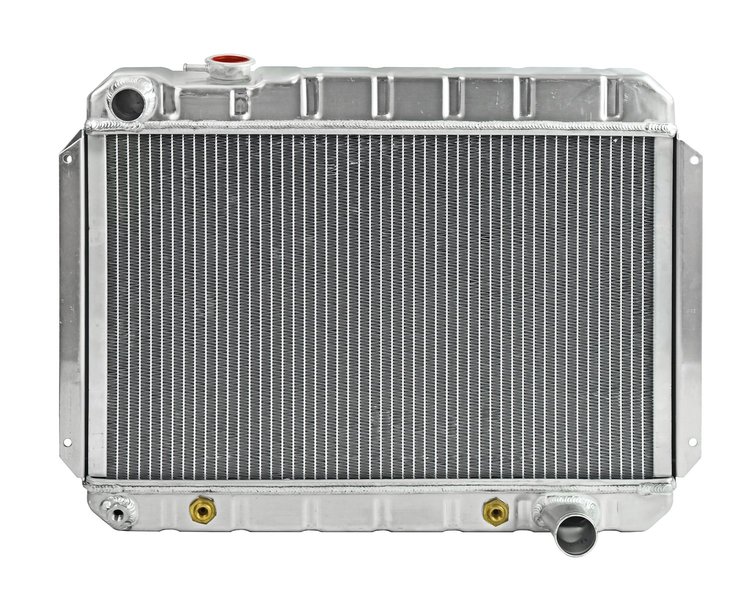

Reproduction Aluminum Radiator for 1966-1967 Chevrolet Chevelle, Malibu, & El-Camino
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511476

Reproduction Aluminum Radiator for 1966-1967 Chevrolet Chevelle, Malibu, & El-Camino

$31999$351.99You Save$32.00
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

Part Number : 555-51161
$2512$26.99
You Save$1.87
Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

JEGS

Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

Part Number : 555-16056
$414$4.99
You Save$0.85
Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

JEGS

Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

Part Number : 555-511035
$5499$60.99
You Save$6.00
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999

Chevrolet
Reproduction Aluminum Radiator
  • 1966-1967 Chevrolet Chevelle, Malibu, & El-Camino
  • Direct Fitment
  • Improved Cooling Efficency
  • 2-Row 1 1/8 in. Wide High Flow Tubes
  • Aluminum
  • Semi-Polished Finish

    JEGS-511476 Reproduction Aluminum Radiator Features:

    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"
    • Original Style Stamped Tanks and Mounting Brackets
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Downflow Design
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core Width: 23.50 in.
    • Core Height: 15.50 in.
    • Core Thickness: 2.5 in.
    • Overall Width: 27.50 in.
    • Overall Height: 20.75 in.
    • Inlet size: 1.500
    • Inlet Location: Left/Driver Side Upper
    • Outlet Size: 1.750
    • Outlet Location: Right/Passenger Side Lower
    • Built-in Transmission Cooler
    • Semi-Polished Finish That Can Be Easily Painted
  • Performance Cooling for Your Classic Car

    JEGS Reproduction Aluminum Radiators for Classic Cars are designed to replace your factory OE copper brass radiator. Each radiator is hand-made from 100-percent aluminum material with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific application. These radiators have a factory OE-Style look and provide increased cooling performance. JEGS Reproduction Aluminum Radiators are available with or without an electric cooling fan and shroud.

    JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Reproduction Aluminum Radiators for Classic Cars
    BrandJEGS
    Package Height7.0
    Package Width24.0
    Package Length29.0
    Weight20.0 PG
    Part CategoryReplacement Parts
    Overall Thickness3 in (76.2 mm)
    Overall Height20.75 in (527.1 mm)
    Outlet Size1.75 in (44.5 mm)
    Inlet Size1.500 in.
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    QuantitySold Individually
    Inlet LocationUpper driver side
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height15.5 in (393.7 mm)
    Core Thickness2.5 in (63.5 mm)
    Trans Cooler Line Connection1/2-20 FINE
    Core Width23.5 in (596.9 mm)
    Row Quantity2
    Outlet LocationLower passenger side
    Overall Width27.5 in (698.5 mm)
    Radiator TypePerformance Replacement
    Radiator FinishSemi-Polished
    Fan IncludedNo
    Transmission CoolerYes
    Part FitmentDirect Fit
    Radiator StyleDownflow
    Package Qty1
    Package TypeEA
