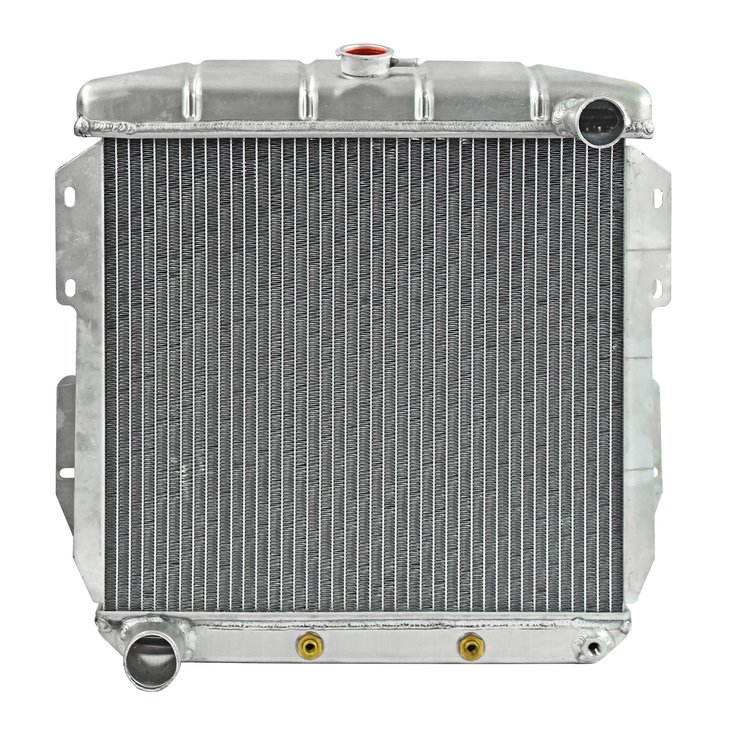

Reproduction Aluminum Radiator for 1955-1957 Ford Thunderbird
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511483

Reproduction Aluminum Radiator for 1955-1957 Ford Thunderbird

$29999$329.99You Save$30.00
ShippingShips on 12/02/2026
Lowest PriceLowest Price Guarantee

Items You Need

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

Part Number : 555-51161
$2512$26.99
You Save$1.87
Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

JEGS

Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

Part Number : 555-16056
$414$4.99
You Save$0.85
Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

JEGS

Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

Part Number : 555-511035
$5499$60.99
You Save$6.00
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999

Ford Thunderbird
Reproduction Aluminum Radiator
  • 1955-1957 Ford Thunderbird
  • Direct Fitment
  • Improved Cooling Efficency
  • 2-Row 1 1/8 in. Wide High Flow Tubes
  • Aluminum Construction
  • Semi-Polished Finish

    JEGS 555-511483 Reproduction Aluminum Radiator Features:

    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"
    • Original Style Stamped Tanks and Mounting Brackets
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Downflow Design
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core: 19 1/4 in. Wide x 18 1/4 in. High x 2 1/2 in. Thick
    • Overall Height: 24 in.
    • Overall Width: 23 3/4 in.
    • Inlet: 1 1/2 in. Diameter Right/Passenger Side Upper
    • Outlet: 2 in. Diameter Left/Driver Side Lower
    • Built-in Transmission Cooler
    • Semi-Polished Finish That Can Be Easily Painted

    JEGS 555-511483 Reproduction Aluminum Radiator Notes:

    • Will Work with Automatic or Manual Transmission Applications
  • Performance Cooling for Your Classic Car

    JEGS Reproduction Aluminum Radiators for Classic Cars are designed to replace your factory OE copper brass radiator. Each radiator is hand-made from 100-percent aluminum material with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific application. These radiators have a factory OE-Style look and provide increased cooling performance. JEGS Reproduction Aluminum Radiators are available with or without an electric cooling fan and shroud.

    JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Reproduction Aluminum Radiators for Classic Cars
    BrandJEGS
    Package Height9.0
    Package Width25.0
    Package Length26.0
    Weight18.0 PG
    Overall Thickness4 in (101.6 mm)
    Overall Height24 in (609.6 mm)
    Outlet Size2 in (50.8 mm)
    Inlet Size1.500 in.
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    QuantitySold Individually
    Inlet LocationUpper passenger side
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height18.25 in (463.55 mm)
    Core Thickness2.5 in (63.5 mm)
    Trans Cooler Line Connection1/8-27 NPT
    Core Width19.25 in (488.95 mm)
    Row Quantity2
    Overall Width23.75 in (603.3 mm)
    Radiator TypePerformance Replacement
    Radiator FinishSemi-Polished
    Fan IncludedNo
    Transmission CoolerYes
    Radiator StyleDownflow
    Package Qty1
    Package TypeEA
