![Reproduction Aluminum Radiator for 1967-1970 Ford Mustang w/ Small Block [With Air Conditioning]](https://www.jegs.com/images/mini_750/500/555/555-511490.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-511490

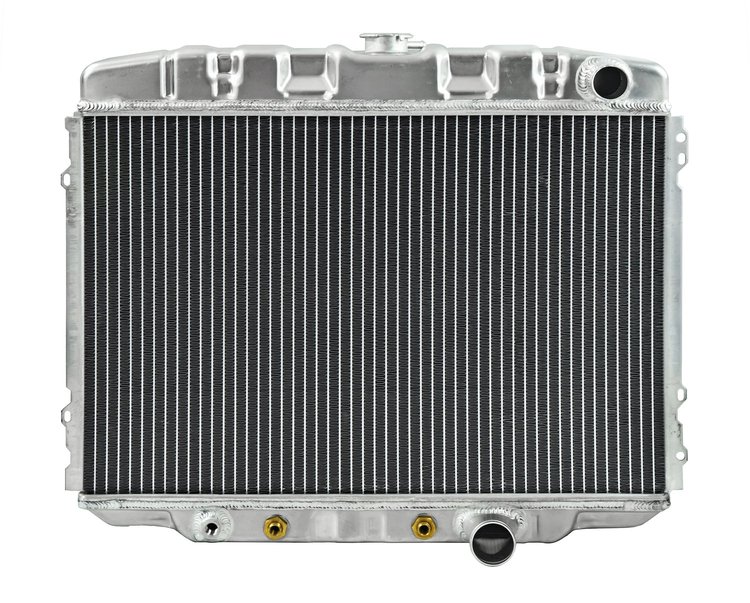

Reproduction Aluminum Radiator for 1967-1970 Ford Mustang w/ Small Block [With Air Conditioning]
$30999$340.99You Save$31.00
Ships on 09/15/2026
Lowest Price GuaranteeFord Mustang
Reproduction Aluminum Radiator1967-1970 Ford Mustang With AC Small Block 289, 302, & 351W Direct Fitment Improved Cooling Efficency 2-Row 1 1/8 in. Wide High Flow Tubes Aluminum Construction Semi-Polished Finish
JEGS 555-511490 Reproduction Aluminum Radiator Features:
- Direct Replacement Bolt-in Radiator, "Looks Like the Original"
- Original Style Stamped Tanks and Mounting Brackets
- Made with High-Quality 100-percent Aluminum and Fully Tig Welded
- Downflow Design
- Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
- Core Width: 24.00 in.
- Core Height: 16.00 in.
- Core Thickness: 2.5 in.
- Overall Width: 25.50 in.
- Overall Height: 21.75 in.
- Inlet size: 1.500 in.
- Inlet Location: Right/Passenger Side Upper
- Outlet Size: 1.500 in.
- Outlet Location: Right/Passenger Side Lower
- Built-in Transmission Cooler
- Semi-Polished Finish That Can Be Easily Painted
Performance Cooling for Your Classic Car
JEGS Reproduction Aluminum Radiators for Classic Cars are designed to replace your factory OE copper brass radiator. Each radiator is hand-made from 100-percent aluminum material with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific application. These radiators have a factory OE-Style look and provide increased cooling performance. JEGS Reproduction Aluminum Radiators are available with or without an electric cooling fan and shroud.
JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Reproduction Aluminum Radiators for Classic Cars
BrandJEGS
Package Height7.0
Package Width26.0
Package Length27.0
Weight16.0 PG
Part CategoryReplacement Parts
Overall Thickness3 in (76.2 mm)
Overall Height21.75 in (552.5 mm)
Outlet Size1.500 in.
Inlet Size1.500 in.
Radiator Cap IncludedNo
Radiator MaterialAluminum
Mounting Hardware IncludedNo
Inlet LocationUpper passenger side
2 Row Core Thickness2.5 in (63.5 mm)
Core Height16 in (406.4 mm)
Core Thickness2.5 in (63.5 mm)
Trans Cooler Line Connection1/8-27 NPT
Core Width24 in (609.6 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width25.5 in (647.7 mm)
Radiator TypePerformance Replacement
Radiator FinishSemi-Polished
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
Radiator StyleDownflow
Package Qty1
Package TypeEA
