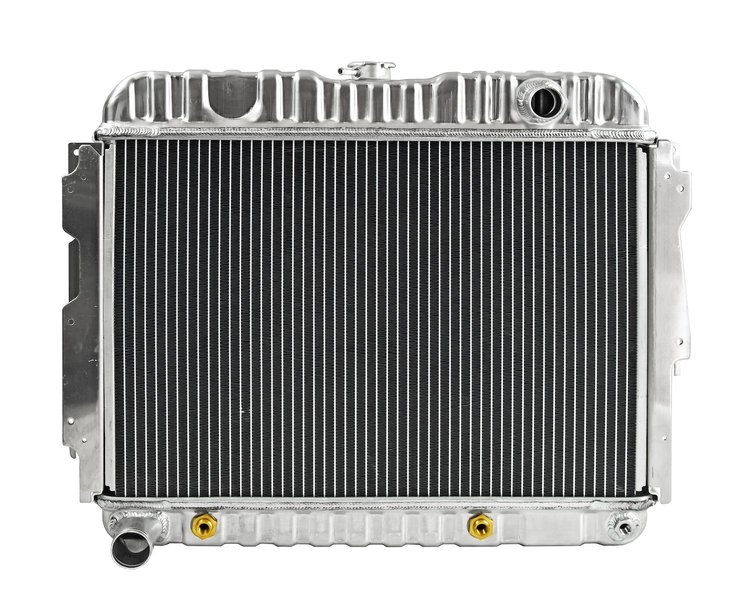

Reproduction Aluminum Radiator for Select 1966-1972 Mopar B & E Bodies With Big Block Engine
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511507

Reproduction Aluminum Radiator for Select 1966-1972 Mopar B & E Bodies With Big Block Engine

$32999$362.99You Save$33.00
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

Part Number : 555-51161
$2512$26.99
You Save$1.87
Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

JEGS

Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

Part Number : 555-16056
$414$4.99
You Save$0.85
Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

JEGS

Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

Part Number : 555-511035
$5499$60.99
You Save$6.00
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999

Mopar B & E-Body
Reproduction Aluminum Radiator
  • 1966-1972 Mopar B & E Bodies
  • 361, 383, 426, 440 Big Block
  • See Fitment Tab For All Models
  • Direct Fitment
  • Improved Cooling Efficiency
  • 2-Row 1 1/8 in. Wide High Flow Tubes
  • Aluminum
  • Semi-Polished Finish

    JEGS 555-511507 Reproduction Aluminum Radiator Features:

    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"
    • Original Style Stamped Tanks and Mounting Brackets
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Downflow Design
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core: 24 in. Wide x 17 in. High x 2 1/2 in. Thick
    • Overall Height: 23 in.
    • Overall Width: 29 in.
    • Inlet: 1 1/2 in. Diameter Right/Passenger Side Upper
    • Outlet: 1 3/4 in. Diameter Left/Driver Side Lower
    • Built-in Transmission Cooler
    • Semi-Polished Finish That Can Be Easily Painted

    JEGS 555-511507 Reproduction Aluminum Radiator Notes:

    • Will Work With Automatic or Manual Transmissions
  • Performance Cooling for Your Classic Car

    JEGS Reproduction Aluminum Radiators for Classic Cars are designed to replace your factory OE copper brass radiator. Each radiator is hand-made from 100-percent aluminum material with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific application. These radiators have a factory OE-Style look and provide increased cooling performance. JEGS Reproduction Aluminum Radiators are available with or without an electric cooling fan and shroud.

    JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Reproduction Aluminum Radiators for Classic Cars
    BrandJEGS
    Package Height7.0
    Package Width26.0
    Package Length31.0
    Weight22.0 PG
    Overall Thickness3 in (76.2 mm)
    Overall Height23 in (584.2 mm)
    Outlet Size1.75 in (44.5 mm)
    Inlet Size1.500 in.
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    QuantitySold Individually
    Inlet LocationUpper passenger side
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height17 in (431.8 mm)
    Core Thickness2.5 in (63.5 mm)
    Trans Cooler Line Connection1/4-18 NPT
    Core Width24 in (609.6 mm)
    Row Quantity2
    Outlet LocationLower driver side
    Overall Width29 in (736.6 mm)
    Radiator TypePerformance Replacement
    Radiator FinishSemi-Polished
    Fan IncludedNo
    Transmission CoolerYes
    Radiator StyleDownflow
    Package Qty1
    Package TypeEA
