Vehicle Info NeededJEGSPART NUMBER: 555-511509

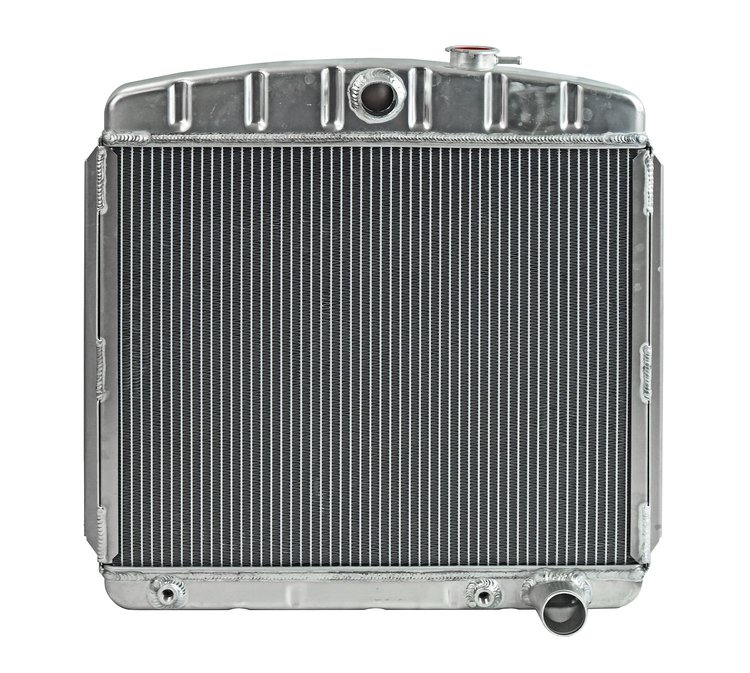

Reproduction Aluminum Radiator for 1955-1957 Chevrolet with V8 Engine
$28999$318.99You Save$29.00
Ships on 09/15/2026
Lowest Price GuaranteeChevrolet
Reproduction Aluminum Radiator1955-1957 Chevrolet with V8 Engine Direct Fitment Improved Cooling Efficency 2-Row 1 1/8 in. Wide High Flow Tubes Aluminum Construction Semi-Polished Finish
JEGS 555-511509 Reproduction Aluminum Radiator Features:
- Direct Replacement Bolt-in Radiator, "Looks Like the Original"
- Original Style Stamped Tanks and Mounting Brackets
- Made with High-Quality 100-percent Aluminum and Fully Tig Welded
- Double The Capacity of Stock 2-Row
- Downflow Design
- Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
- Core: 21 in. Wide x 17 1/4 in. High x 2 1/2 in. Thick
- Overall Height: 23 1/2 in.
- Overall Width: 23 1/4 in.
- Inlet: 1 1/2 in. Diameter Upper/Center
- Outlet: 1 3/4 in. Diameter Right/Passenger Side Lower
- Built-in Transmission Cooler
- Semi-Polished Finish That Can Be Easily Painted
Performance Cooling for Your Classic Car
JEGS Reproduction Aluminum Radiators for Classic Cars are designed to replace your factory OE copper brass radiator. Each radiator is hand-made from 100-percent aluminum material with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific application. These radiators have a factory OE-Style look and provide increased cooling performance. JEGS Reproduction Aluminum Radiators are available with or without an electric cooling fan and shroud.
JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Reproduction Aluminum Radiators for Classic Cars
BrandJEGS
Package Height7.0
Package Width26.0
Package Length26.0
Weight20.0 PG
Overall Thickness3 in (76.2 mm)
Overall Height23.5 in (596.9 mm)
Outlet Size1.75 in (44.5 mm)
Inlet Size1.500 in.
Radiator Cap IncludedNo
Radiator MaterialAluminum
Inlet LocationUpper center
2 Row Core Thickness2.5 in (63.5 mm)
Core Height17.25 in (438.15 mm)
Core Thickness2.5 in (63.5 mm)
Trans Cooler Line Connection1/4-18 NPT
Core Width21 in (533.4 mm)
Row Quantity2
Outlet LocationLower passenger side
Radiator TypePerformance Replacement
Radiator FinishSemi-Polished
Fan IncludedNo
Transmission CoolerYes
Radiator StyleDownflow
Package Qty1
Package TypeEA
