Aluminum Radiator for Select 1949-1954 Chevrolet Models w/ Chevy V8 Engine Conversion
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511511

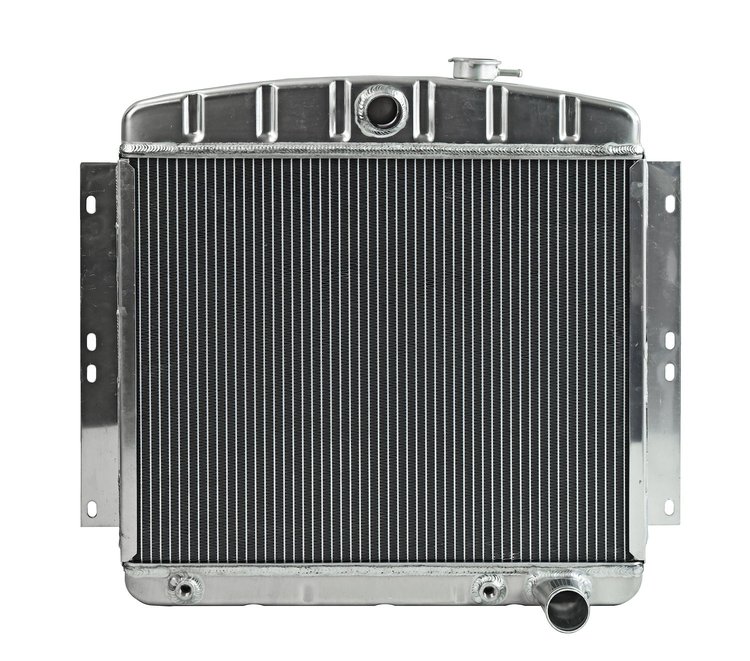

Aluminum Radiator for Select 1949-1954 Chevrolet Models w/ Chevy V8 Engine Conversion

$29999$329.99You Save$30.00
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

Part Number : 555-51161
$2512$26.99
You Save$1.87
Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

JEGS

Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

Part Number : 555-16056
$414$4.99
You Save$0.85
Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

JEGS

Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

Part Number : 555-511035
$5499$60.99
You Save$6.00
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999

GM Cars w/Chevy V8 Engine
Aluminum Radiator
  • 1949-1954 Chevy Bel Air, Fleetline, Styleline Deluxe, Styleline Special
  • w/Chevy V8 Engine Conversion
  • Direct Fitment
  • 2-Row 1 1/8 in. W. High Flow Tubes
  • Aluminum
  • Semi-Polished Finish

    JEGS 555-511511 Aluminum Radiator for Chevy Engine Conversion Features:

    • Designed to Fit 1949-1954 Chevy Bel Air, Fleetline, Styleline Deluxe, Styleline Special w/Chevrolet V8 Engine Conversion
    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"
    • Original Style Stamped Tanks and Mounting Brackets
    • Inlet and Outlet Attached for Specific Engine Conversion
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Downflow Design
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core: 21 in. Wide x 17 1/4 in. Tall x 2 1/2 in. Thick
    • Overall Dimensions at Widest Point
      • Overall Height: 23 1/2 in.
      • Overall Width: 25 31/4 in.
      • Overall Thickness: 3 in.
    • Inlet: 1 1/2 in. Diameter Center Upper
    • Outlet: 1 3/4 in. Diameter Right/Passenger Side Lower
    • Built-in Transmission Cooler
    • The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference.

    JEGS 555-511511 Aluminum Radiator for Chevy Engine Conversion Notes:

    • Will Work with Automatic or Manual Transmission Applications
  • Efficient Cooling for Your Engine Conversion

    JEGS Aluminum Conversion Radiators for Cars, Jeeps, and Trucks are designed to make your engine conversion project a breeze and provide efficient cooling. Each radiator is hand-made from 100-percent aluminum with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific engine conversion application. These units are a direct bolt-in to the factory vehicle location, easy to install, and will provide your ride with a clean look.

    JEGS also offers other Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods, and Ready-Fit Radiators for Cars and Trucks. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Aluminum Conversion Radiators for Cars, Jeeps and Trucks
    BrandJEGS
    Package Height7.0
    Package Width27.0
    Package Length27.0
    Weight20.0 PG
    Part CategoryPerformance Parts
    Overall Thickness3 in (76.2 mm)
    Outlet Size1.75 in (44.5 mm)
    Inlet Size1.500 in.
    Radiator Cap IncludedYes
    Drain Valve IncludedYes
    Trans CoolerYES
    QuantitySold Individually
    Inlet LocationCenter upper
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height17.25 in (438.15 mm)
    Core Thickness2.5 in (63.5 mm)
    Mounting Brackets IncludedYes
    Core Width21 in (533.4 mm)
    Outlet LocationLower passenger side
    Overall Width25.75 in (654.1 mm)
    Radiator TypeEngine Conversion
    Part FitmentDirect Fit
    Package Qty1
    Package TypeEA
