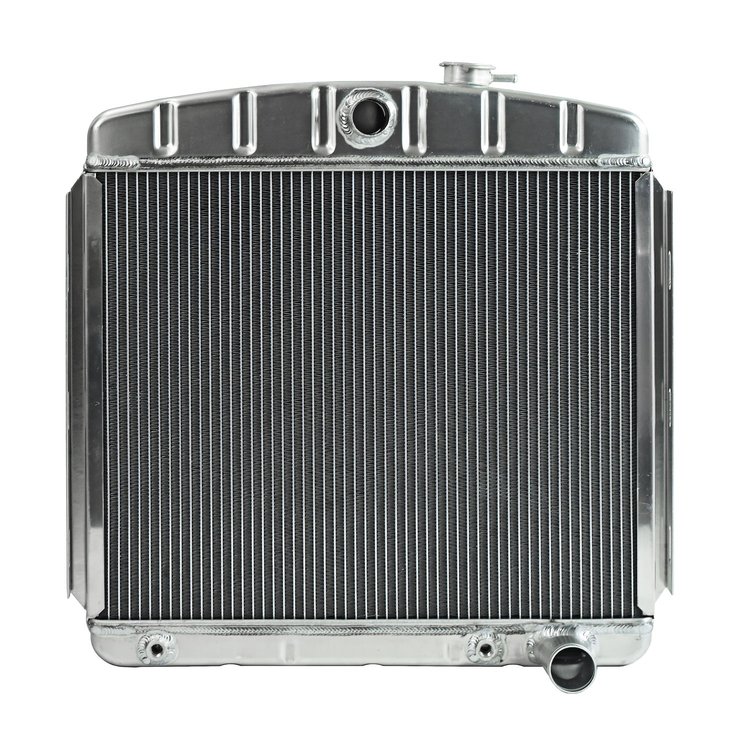

Aluminum Radiator for 1955-1956 Chevrolet 150, 210, Bel Air & Nomad 6 cyl. Models w/Chevy Big Block V8 Engine Conversion
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511516

Aluminum Radiator for 1955-1956 Chevrolet 150, 210, Bel Air & Nomad 6 cyl. Models w/Chevy Big Block V8 Engine Conversion

$28999$318.99You Save$29.00
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

Part Number : 555-51161
$2512$26.99
You Save$1.87
Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

JEGS

Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

Part Number : 555-16056
$414$4.99
You Save$0.85
Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

JEGS

Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

Part Number : 555-511035
$5499$60.99
You Save$6.00
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999

GM Cars w/Chevy V8 Engine
Aluminum Radiator
  • 1955-1956 Chevy 150, 210, Bel Air, Nomad 6 Cylinder Models
  • w/Chevy Big Block V8 Eng. Conversion
  • Mounts in Front of Core Support
  • Direct Fitment
  • 2-Row 1 1/8 in. W. High Flow Tubes
  • Aluminum
  • Semi-Polished Finish

    JEGS 555-511516 Aluminum Radiator for Chevy Engine Conversion Features:

    • Designed to Fit 1955-1956 Chevy 150, 210, Bel Air, and Nomad 6-cylinder Models w/Chevrolet Big Block V8 Engine Conversion
    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"
    • Original Style Stamped Tanks and Mounting Brackets
    • Inlet and Outlet Attached for Specific Engine Conversion
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Downflow Design
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core: 21 in. Wide x 17 1/4 in. Tall x 2 1/2 in. Thick
    • Overall Dimensions at Widest Point
      • Overall Height: 23 1/2 in.
      • Overall Width: 23 1/4 in.
      • Overall Thickness: 3 in.
    • Inlet: 1 1/2 in. Diameter Center Upper
    • Outlet: 1 3/4 in. Diameter Right/Passenger Side Lower
    • Built-in Transmission Cooler
    • The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference.

    JEGS 555-511516 Aluminum Radiator for Chevy Engine Conversion Notes:

    • This Radiator is Designed for 1955-1956 Chevrolet Models, but can also used on 1957 Models. If using on a 1957 Chevy you must notch the center of the hood support to make room for the hose to come out in the center.
    • Will Work with Automatic or Manual Transmission Applications
  • Efficient Cooling for Your Engine Conversion

    JEGS Aluminum Conversion Radiators for Cars, Jeeps, and Trucks are designed to make your engine conversion project a breeze and provide efficient cooling. Each radiator is hand-made from 100-percent aluminum with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific engine conversion application. These units are a direct bolt-in to the factory vehicle location, easy to install, and will provide your ride with a clean look.

    JEGS also offers other Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods, and Ready-Fit Radiators for Cars and Trucks. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Aluminum Conversion Radiators for Cars, Jeeps and Trucks
    BrandJEGS
    Package Height7.0
    Package Width26.0
    Package Length26.0
    Weight20.0 PG
    Part CategoryPerformance Parts
    Overall Thickness3 in (76.2 mm)
    Overall Height23.5 in (596.9 mm)
    Outlet Size1.75 in (44.5 mm)
    Inlet Size1.500 in.
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    Trans CoolerYES
    QuantitySold Individually
    Inlet LocationCenter upper
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height17.25 in (438.15 mm)
    Core Thickness2.5 in (63.5 mm)
    Mounting Brackets IncludedNo
    Core Width21 in (533.4 mm)
    Row Quantity2
    Outlet LocationLower passenger side
    Overall Width23.25 in (590.6 mm)
    Radiator FinishSemi-Polished
    Part FitmentDirect Fit
    Radiator StyleDownflow
    Package Qty1
    Package TypeEA
