Vehicle Info NeededJEGSPART NUMBER: 555-511529

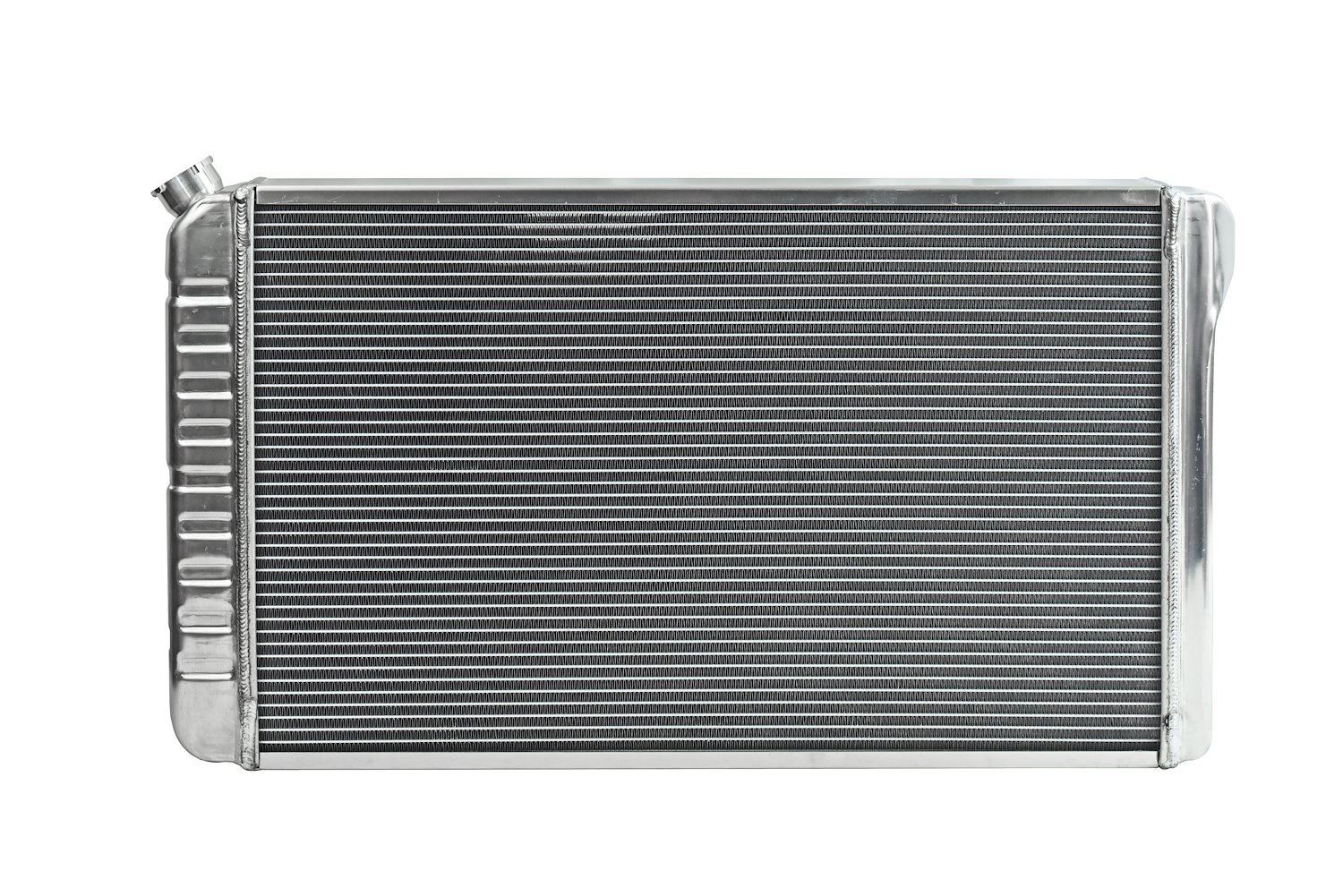

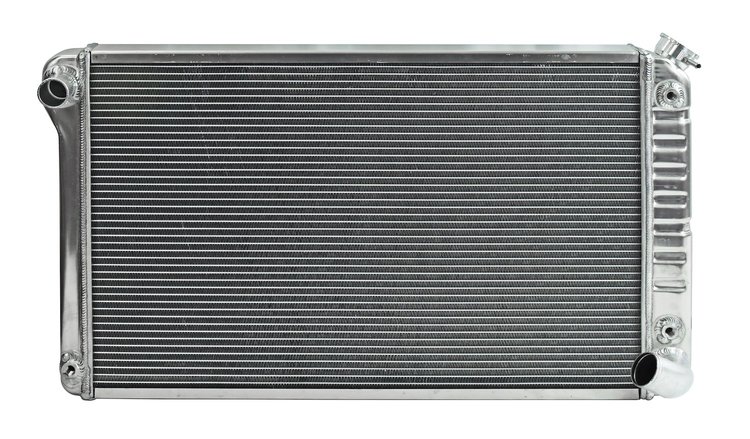

Reproduction Aluminum Radiator for 1977-1979 Chevrolet Corvette, 1965-67 Pontiac Full-Size Car
$34999$384.99You Save$35.00
Ships on 09/15/2026
Lowest Price GuaranteeChevrolet Corvette
Reproduction Aluminum Radiator1977-1979 Chevrolet Corvette 1965-1967 Pontiac Full-Size Car Direct Fitment Improved Cooling Efficiency 2-Row 1 1/8 in. Wide High Flow Tubes Aluminum Construction Semi-Polished Finish
JEGS 555-511529 Reproduction Aluminum Radiator Features:
- Direct Replacement Bolt-in Radiator, "Looks Like the Original"
- Original Style Stamped Tanks
- Made with High-Quality 100-percent Aluminum and Fully Tig Welded
- Crossflow Design
- Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
- Core: 26 in. Wide x 17 5/8 in. High x 2 1/2 in. Thick
- Overall Height: 18 3/4 in.
- Overall Width: 32 in.
- Inlet: 1 1/2 in. Diameter Left/Driver Side Upper
- Outlet: 1 3/4 in. Diameter Right/Passenger Side Lower
- Built-in Transmission Cooler
- Semi-Polished Finish that can be easily painted
JEGS 555-511529 Reproduction Aluminum Radiator Notes:
- Will Work With Automatic or Manual Transmissions
Part TypeRadiator
BrandJEGS
Package Height7.0
Package Width22.0
Package Length35.0
Weight22.0 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height18.75 in (476.3 mm)
Outlet Size1.75 in (44.5 mm)
Inlet Size1.500 in.
Radiator Cap IncludedNo
Radiator MaterialAluminum
Inlet LocationUpper driver side
2 Row Core Thickness2.5 in (63.5 mm)
Core Height17.625 in.
Core Thickness2.5 in (63.5 mm)
Trans Cooler Line Connection1/4-18 NPT
Core Width26 in (660.4 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width32 in (812.8 mm)
Radiator TypePerformance Replacement
Radiator FinishSemi-Polished
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
Radiator StyleCrossflow
Package Qty1
Package TypeEA
No Questions
No Reviews
