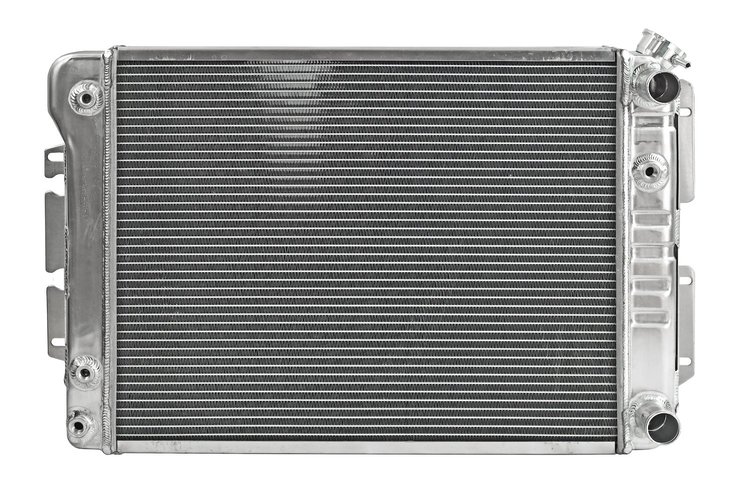

JEGS 555-511532 Aluminum Radiator for GM LS Engine Conversion Features:

• Designed to Fit 1967-1969 Chevy Camaro & Pontiac Firebird, 1968-1974 Chevy Nova w/GM LS Engine Conversion
• Direct Replacement Bolt-in Radiator, "Looks Like the Original"
• Original Ribbbed Style Stamped Tanks
• Does Not Use Mounting Brackets
• Inlet and Outlet Attached for Specific Engine Conversion
• Made with High-Quality 100-percent Aluminum and Fully Tig Welded
• Crossflow Design
• Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
• Core: 23 in. Wide x 18 3/4 in. High x 2 1/2 in. Thick
• Overall Dimensions at Widest Point
  • Overall Height: 18 3/4 in.
  • Overall Width: 28 1/2 in.
  • Overall Thickness: 3 in.
• Inlet: 1 1/2 in. Diameter Right/Passenger Side Upper
• Outlet: 1 1/2 in. Diameter Right/Passenger Side Lower

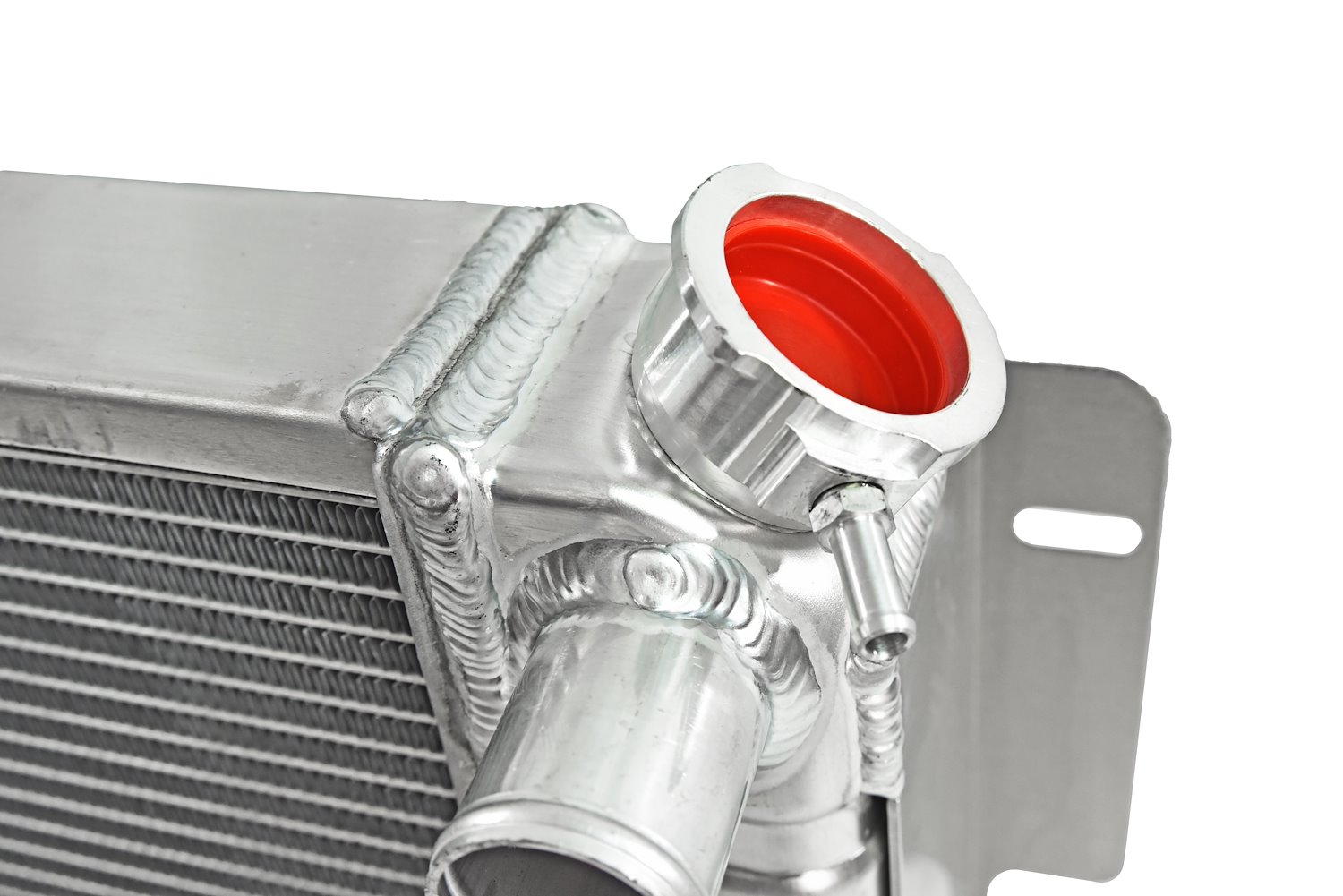

• Built-in Provision on Right/Passenger Side Tank for LS Engine Steam Port
• Built-in Transmission Cooler
• The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference.

JEGS 555-511532 Aluminum Radiator for GM LS Engine Conversion Notes:

• Will Work with Automatic or Manual Transmission Applications
