Vehicle Info NeededJEGSPART NUMBER: 555-511536

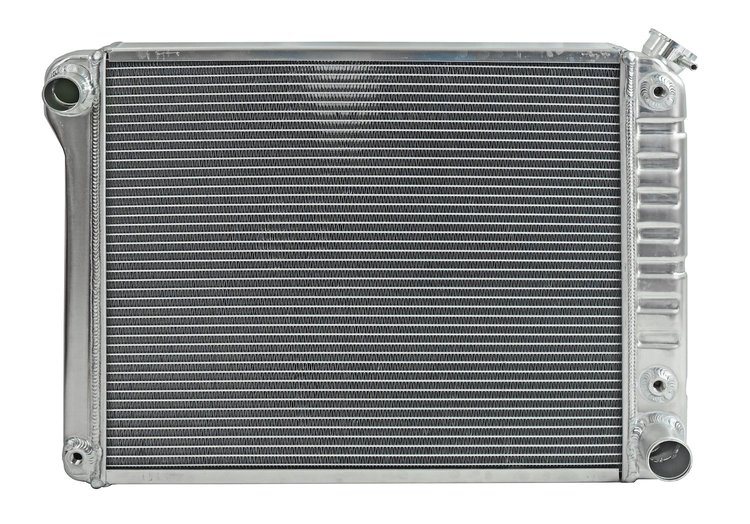

Reproduction Aluminum Radiator for Select 1964-1976 GM Models
$30999$340.99You Save$31.00
Ships Tomorrow
Lowest Price GuaranteeGM
Reproduction Aluminum RadiatorFits Select 1964-1976 Buick, Chevy & Pontiac Models See Fitment Tab for All Models Direct Fitment Improved Cooling Efficency 2-Row 1 1/8 in. Wide High Flow Tubes Alum. Construction Semi-Polished Finish
JEGS 555-511536 Reproduction Aluminum Radiator Features:
- Direct Replacement Bolt-in Radiator, "Looks Like the Original"
- Original Style Stamped Tanks

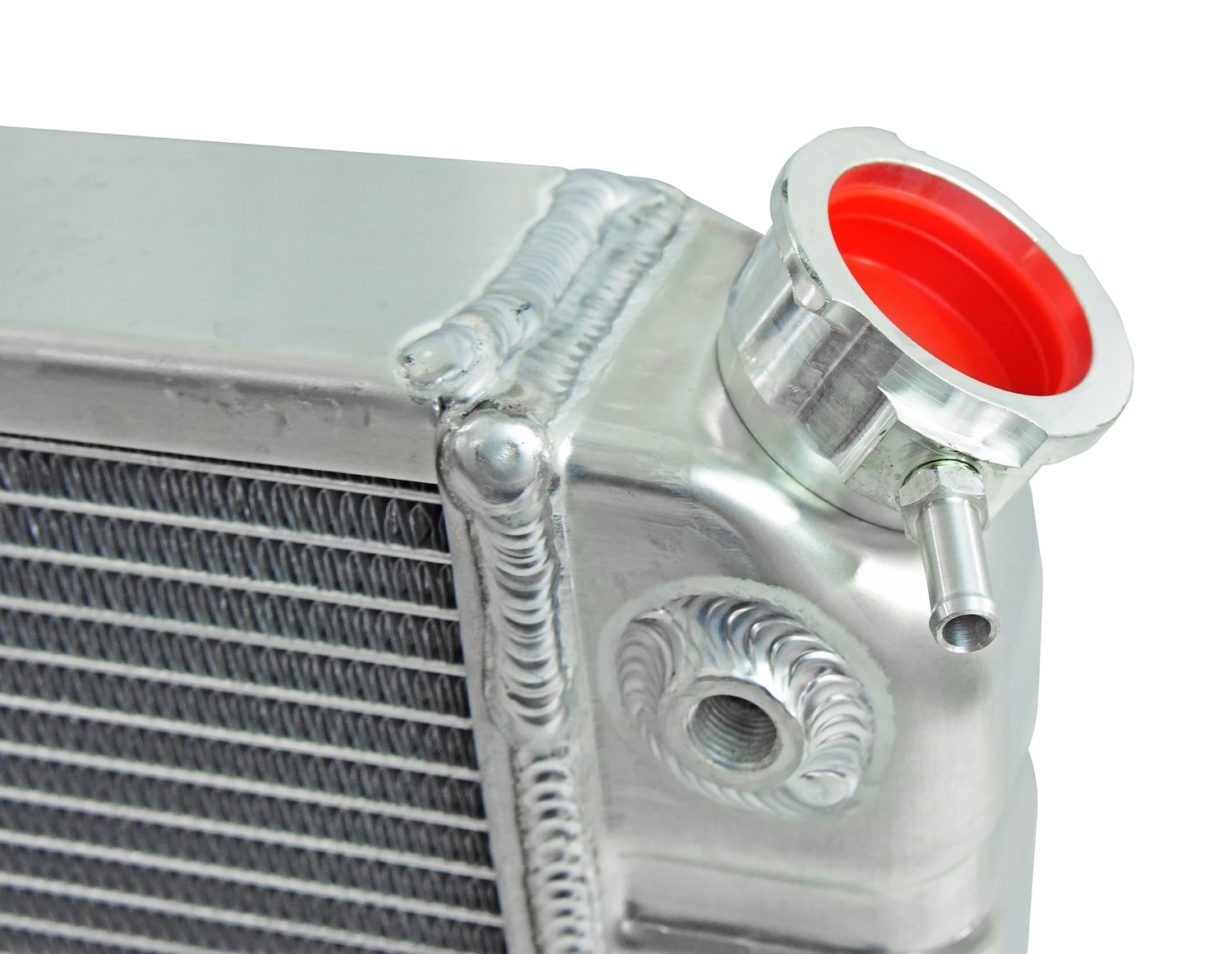

- Made with High-Quality 100-percent Aluminum and Fully Tig Welded
- Crossflow Design
- Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
- Core: 20 3/4 in. Wide x 18 in. High x 2 1/2 in. Thick
- Overall Height: 18 1/2 in.
- Overall Width: 26 3/4 in.
- Inlet: 1 1/2 in. Diameter Left/Driver Side Upper
- Outlet: 1 3/4 in. Diameter Right/Passenger Side Lower
- Built-in Transmission Cooler
- Semi-Polished Finish That Can Be Easily Painted
Part TypeRadiator
BrandJEGS
Package Height8.0
Package Width22.0
Package Length33.0
Weight20.0 PG
Outlet Size1.75 in (44.5 mm)
Inlet Size1.500 in.
Radiator Cap IncludedNo
Radiator MaterialAluminum
Inlet LocationUpper driver side
2 Row Core Thickness2.5 in (63.5 mm)
Core Height18 in (457.2 mm)
Core Thickness2.5 in (63.5 mm)
Trans Cooler Line Connection1/4-18 NPT
Core Width20.75 in (527.05 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width26.75 in (679.5 mm)
Radiator TypePerformance Replacement
Radiator FinishSemi-Polished
Fan IncludedNo
Transmission CoolerYes
Radiator StyleCrossflow
Package Qty1
Package TypeEA
