Reproduction Aluminum Radiator for 1955-1959 Chevrolet Truck
InfoVehicle Info Needed
JEGSPART NUMBER: 555-511542

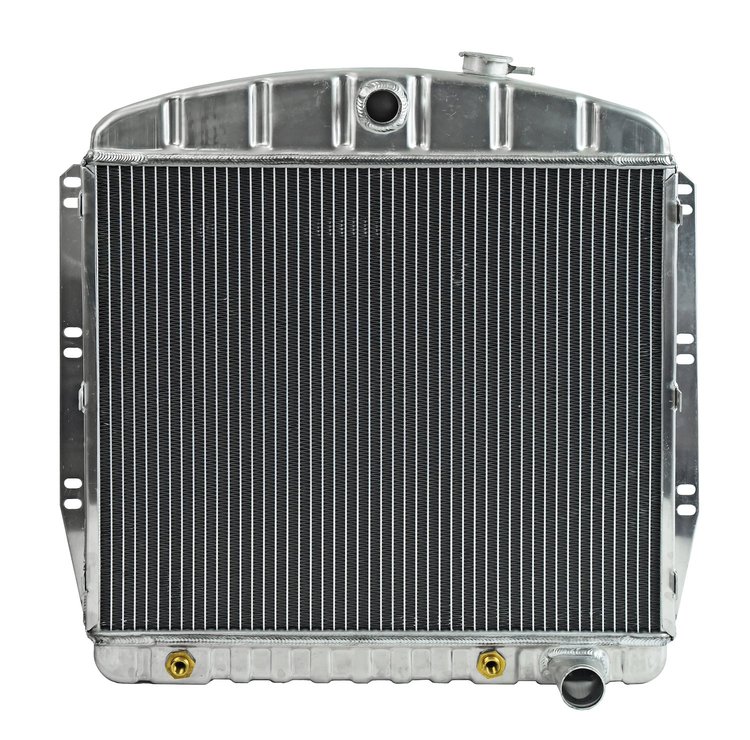

Reproduction Aluminum Radiator for 1955-1959 Chevrolet Truck

$28999$318.99You Save$29.00
ShippingShips on 11/17/2026
Lowest PriceLowest Price Guarantee

Items You Need

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

JEGS

16 lb Radiator Cap With JEGS Logo [Clear Anodized Billet Aluminum]

Part Number : 555-51161
$2512$26.99
You Save$1.87
Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

JEGS

Stainless Steel Hose Clamps 1-5/8 in. to 2 3/8 in. OD

Part Number : 555-16056
$414$4.99
You Save$0.85
Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

JEGS

Coolant Overflow Tank, 34 oz. Capacity [Polished Stainless Steel]

Part Number : 555-511035
$5499$60.99
You Save$6.00
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999

Chevrolet & GMC Pickup
Reproduction Aluminum Radiator
  • 1955-1959 Chevrolet Truck
  • 1955 2nd Series
  • Direct Fitment
  • Improved Cooling Efficiency
  • 2-Row 1 1/8 in. Wide High Flow Tubes
  • Aluminum Construction
  • Semi-Polished Finish

    JEGS 555-511542 Reproduction Aluminum Radiator Features:

    • Designed to Fit 1955-1959 Chevrolet Truck (1955 2nd Series)
    • Direct Replacement Bolt-in Radiator, "Looks Like the Original"
    • Original Style Stamped Tanks and Mounting Brackets
    • Made with High-Quality 100-percent Aluminum and Fully Tig Welded
    • Downflow Design
    • Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
    • Core Width: 22 1/2 in.
    • Core Height: 19 1/4 in.
    • Core Thickness: 2 1/2 in.
    • Overall Dimensions at Widest Point
      • Overall Width: 26 1/2 in.
      • Overall Height: 26 1/4 in.
      • Overall Thickness: 3 in.
    • inlet size: 1 1/2 in. Diameter
    • Inlet Location: Center Upper
    • Outlet Size: 1 3/4 in. Diameter
    • Outlet Location: Right/Passenger Side Lower
    • Built-in Transmission Cooler
    • The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference

    JEGS 555-511542 Reproduction Aluminum Radiator Notes:

    • Will Work with Automatic or Manual Transmission Applications

    • Improved Cooling for Your Classic Truck

    JEGS Reproduction Aluminum Radiators for Classic Trucks are designed to replace your factory OE copper brass radiator and look like the original unit. These radiators provide an OE look with increased cooling efficiency and are available with or without an electric cooling fan and shroud.

    JEGS also offers other Reproduction Style Aluminum Radiators for Engine Conversions, Classic Trucks, and Street Rods. For more information CLICK on the Links Below.

    Part TypeRadiator
    Product LineJEGS Reproduction Aluminum Radiators for Classic Trucks
    BrandJEGS
    Package Height7.0
    Package Width28.0
    Package Length29.0
    Weight23.0 PG
    Overall Thickness3 in (76.2 mm)
    Overall Height26.25 in (666.8 mm)
    Outlet Size1.75 in (44.5 mm)
    Inlet Size1.500 in.
    Radiator Cap IncludedNo
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    QuantitySold individually
    Mounting Hardware IncludedNo
    Inlet LocationUpper center
    2 Row Core Thickness2.5 in (63.5 mm)
    Core Height19.25 in (488.95 mm)
    Core Thickness2.5 in (63.5 mm)
    Trans Cooler Line Connection1/4-18 NPT
    Mounting Brackets IncludedYes
    Core Width22.5 in (571.5 mm)
    Row Quantity2
    Outlet LocationLower passenger side
    Overall Width26.5 in (673.1 mm)
    Tube Size1.125 in (28.575 mm)
    Radiator TypePerformance Replacement
    Radiator FinishSemi-Polished
    Transmission CoolerYes
    Radiator StyleDownflow
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
