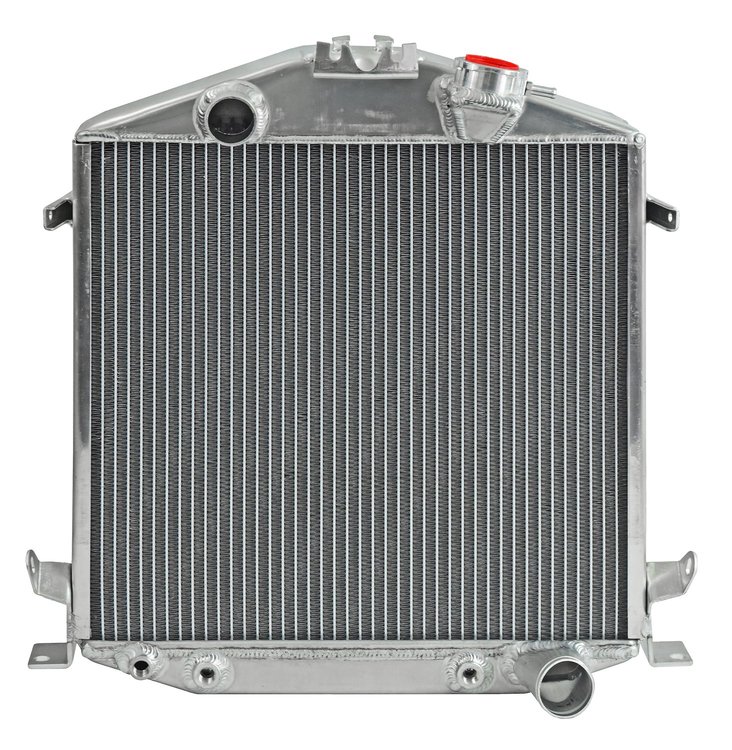

Aluminum Radiator for 1928-1931 Ford Model A with Chevy V8 Engine & Chopped Grill

Name: Aluminum Radiator for 1928-1931 Ford Model A with Chevy V8 Engine & Chopped Grill
Brand: JEGS
SKU: 555-511548
Price: 289.99 USD
Availability: InStock

^$289⁹⁹$318.99You Save$29.00

Ships on Sep 03, 2026

Lowest Price Guarantee

1928-1931 Ford Model A w/Chevy Engine

Aluminum Radiator

1928-1931 Ford Model A w/Chevy V8 Engine

Fits w/Chopped Grill

Direct Fitment

Improved Cooling Efficiency

2-Row 1 1/8 in. Wide High Flow Tubes

Aluminum Construction

Semi-Polished Finish

JEGS 511548 Aluminum Radiator Features:

Designed to Fit 1928-1931 Ford Model A with Chevrolet V8 Engine Conversion and chopped grill shell
Direct Replacement Bolt-in Radiator, "Looks Like the Original"
Original Style Stamped Tanks and Mounting Brackets
Made with High-Quality 100-percent Aluminum and Fully Tig Welded
Downflow Design
Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
Core Width: 16 1/2 in.
Core Height: 16 in.
Core Thickness: 2 1/2 in.
Overall Dimensions at Widest Point
- Overall Width: 20 in.
- Overall Height: 21 1/4 in.
- Overall Thickness: 4 in.
Inlet Size: 1 1/2 in. Diameter
Inlet Location: Left/Driver Side Upper
Outlet Size: 1 3/4 in. Diameter
Outlet Location: Right/Passenger Side Lower
Built-in Transmission Cooler
The Semi-Polished Finish Allows for Easy Painting to Match the Factory Radiator Color or Your Personal Color Preference

JEGS 555-511548 Aluminum Radiator Notes:

Will Work with Automatic or Manual Transmission Applications

Efficient Cooling for your Street Rod

JEGS Aluminum Street Rod Radiators are designed to make your engine conversion project a breeze and provide efficient cooling. Each radiator is hand-made from 100-percent aluminum with factory-style tanks and brackets, fully tig welded, and assembled using the inlets and outlets to match each specific engine conversion application. These units are a direct bolt-in to the factory vehicle location, easy to install, and will provide your Street Rod with a clean look. These radiators are available with or without an electric fan.

JEGS also offers other Reproduction Style Aluminum Radiators for Classic Cars, Classic Trucks, and Engine Conversions. For more information CLICK on the Links Below.

Part TypeRadiator

Product LineJEGS Aluminum Radiators for Street Rods

BrandJEGS

Package Height10.0

Package Width23.0

Package Length25.0

Weight20.0 PG

Part CategoryPerformance Parts

Overall Thickness4 in (101.6 mm)

Overall Height21.25 in (539.8 mm)

Outlet Size1.75 in (44.5 mm)

Inlet Size1.500 in.
