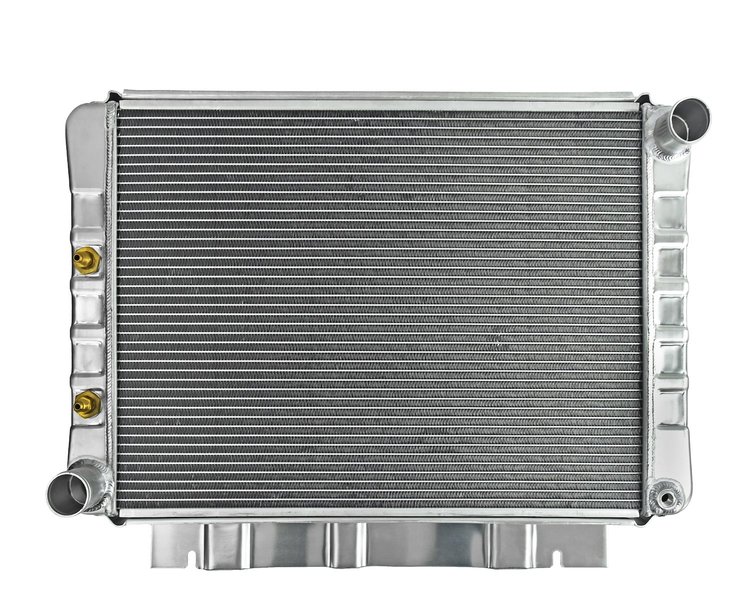

JEGS 555-511561 Reproduction Aluminum Radiator Features:

• Direct Replacement Bolt-in Radiator, "Looks Like the Original"
• Original Style Stamped Tanks
• Made with High-Quality 100-percent Aluminum and Fully Tig Welded
• Downflow Design
• Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
• Core: 22 1/2 in. Wide x 17 in. High x 2 1/2 in. Thick
• Overall Height: 21 1/8 in.
• Overall Width: 27 1/2 in.
• Inlet: 1 3/4 in. Diameter Right/Passenger Side Upper
• Outlet: 1 3/4 in. Diameter Left/Driver Side Lower
• Built-in Transmission Cooler
• Semi-Polished Finish That Can Be Easily Painted

JEGS 555-511561 Reproduction Aluminum Radiator Notes:

• Will Work with Automatic or Manual Transmission Applications
