Vehicle Info NeededJEGSPART NUMBER: 555-511564

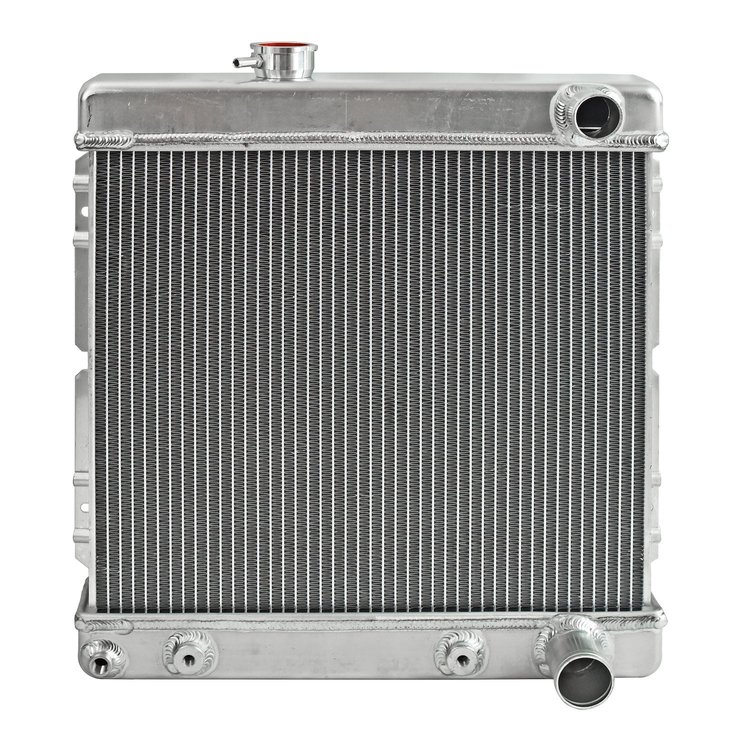

Reproduction Aluminum Radiator for Select 1963-1966 Ford & Mercury Models
$25999$285.99You Save$26.00
Ships on 09/15/2026
Lowest Price GuaranteeFord & Mercury
Reproduction Aluminum RadiatorSelect 1963-1966 Ford Models Select 1963-1965 Mercury Models See Fitment Tab for All Models Direct Fitment Improved Cooling Efficency 2-Row 1 1/8 in. Wide High Flow Tubes Aluminum Semi-Polished
JEGS 555-511564 Reproduction Aluminum Radiator Features:
- Direct Replacement Bolt-in Radiator, "Looks Like the Original"
- Original Style Stamped Tanks and Mounting Brackets
- Made with High-Quality 100-percent Aluminum and Fully Tig Welded
- Downflow Design
- Dual 1 1/8 in. High Flow Tubes for Maximum Cooling
- Core Width: 17.75 in.
- Core Height: 16.00 in.
- Core Thickness: 2.25 in.
- Overall Width: 19.50 in.
- Overall Height: 21.25 in.
- Inlet size: 1.500 in.
- Inlet Location: Right/Passenger Side Upper
- Outlet Size: 1.75
- Outlet Location: Right/Passenger Side Lower
- Built-in Transmission Cooler
- Semi-Polished Finish That Can Be Easily Painted
Part TypeRadiator
BrandJEGS
Package Height7.0
Package Width22.0
Package Length24.0
Weight15.0 PG
Part CategoryReplacement Parts
Overall Thickness3 in (76.2 mm)
Overall Height21.25 in (539.8 mm)
Outlet Size1.75 in (44.5 mm)
Inlet Size1.500 in.
Radiator Cap IncludedNo
Radiator MaterialAluminum
Inlet LocationUpper passenger side
2 Row Core Thickness2.25 in (57.15 mm)
Core Height16 in (406.4 mm)
Core Thickness2.25 in (57.15 mm)
Trans Cooler Line Connection1/8-27 NPT
Core Width17.75 in (450.85 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width19.5 in (495.3 mm)
Radiator TypePerformance Replacement
Radiator FinishSemi-Polished
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
Radiator StyleDownflow
Package Qty1
Package TypeEA
