Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

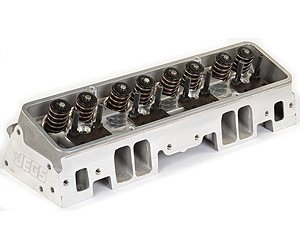

180cc Intake Runner
- Cylinder Head
- Small Block Chevy
- 180cc Intake Ports

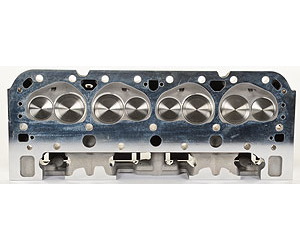

- 72cc Combustion Chambers
- 2.020" Int./1.600" Exh. Valves
- 1.250" Valve Springs, .525" Max Lift
- 3/8" Rocker Studs
- Angle Plug
- Assembled, Sold Individually
Material Casting A356-A Virgin Grade, Heat Treated to T-6 Valve Guides Manganese Bronze Valve Seats Alloy, For use with Unleaded Gasoline Valve Train Rocker Stud Size 3/8"-24 Guide Plates 5/16" Flat Pushrods 5/16" Hardened, Must Check Length Spring Retainers Chrome Moly Steel (7 Degree) Valve Locks 7 Degree (HD) Spring Locator I.D. Locator - 1.490" x 0.060" Valve Springs Specifications Pressure Spring O.D. Type Max Lift Coil Bind Seat Load Open Load 1.250" Single 0.525" 1.160" 100# @ 1.775" 320# @ 1.200" Accessories Spark Plugs 14mm x 3/4" Reach - Gasket Seat - 5/8" Hex Head Bolts JEGS 555-83400 or equivalent Head Studs Standard SB-Chevy Stud Girdle JEGS 555-20510 or equivalent Rocker Arms Standard SB-Chevy for 3/8"-24 Stud Head Gasket JEGS 555-210041 or equivalent Accessory Bolt Locations Stock Placement Flow Specifications
2.020"
(Stainless Steel)1.600"
(Stainless Steel)Valve Length 4.910" 4.910" Valve Stem Diameter 11/32" 11/32" Valve Stem Seal Diameter 0.530" (PTFE) 0.530" (PTFE) Port Dimension 2.200"H x 1.300"W 1.530"H x 1.545"W (D-Shape) Flow Rate 263 CFM @ 0.600" Lift (28" H20) 213 CFM @ 0.600" Lift (28" H20) Gasket JEGS 555-210000
or equivalentJEGS 555-210052
or equivalentTorque Specification Rocker Studs 45 ft/lbs. Manifold Bolts 35 ft/lbs. Head Bolts or Studs Per Manufacturers Specifications
BrandJEGS
Package Height8.0
Package Width9.2
Package Length21.1
Weight28.88 PG
Part CategoryPerformance Parts
Vendor Part Number514004
Package Qty1
Package TypeEA
No Questions
No Reviews
ITEM YOU MAY ALSO CONSIDER
Some parts are not legal for use in California or other states with similar laws / regulations
