Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
5.7L V8
Vortec Heads Install Kit170cc 64cc

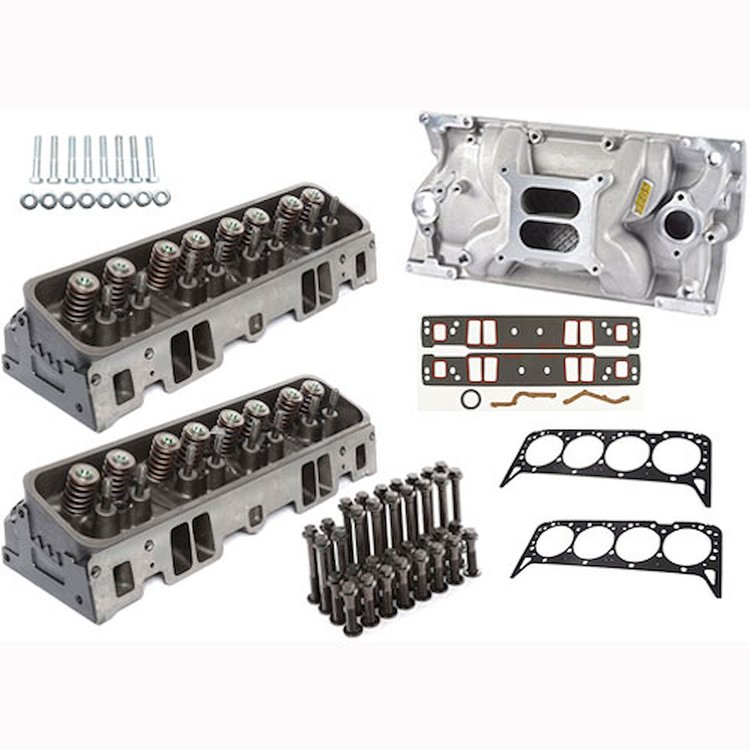

Includes: (2) Reman Cylinder Heads (1) Intake Manifold (1) Head Bolt Kit (1) Intake Manifold Bolt Kit (1) Intake Manifold Gasket Kit (2) Cylinder Head Gaskets
Includes:
Kit Includes:
- Cylinder Head 555-514080
- Intake Manifold 555-513002
- Head Bolt Kit 555-83400

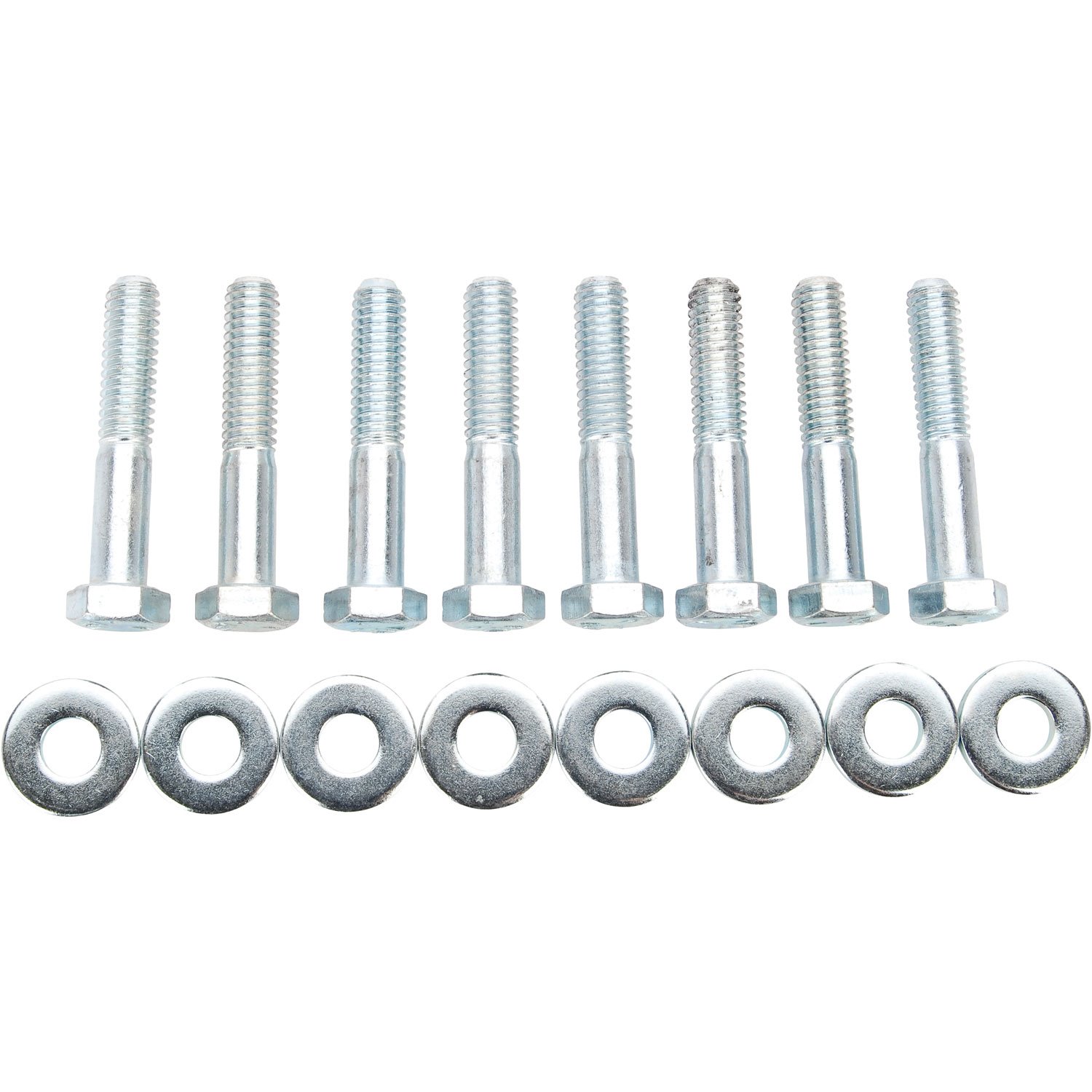

- Intake Manifold Bolts 555-83201
- Intake Manifold Gaskets 555-210003
- Cylinder Head Gasket 555-210041
Part TypeCylinder Head
BrandJEGS
Part CategoryPerformance Parts
Intake StyleDual plane
EmissionWithout EGR
Port StyleRectangular
Carburetor QuantityOne
Engine Make/SizeChevy Small Block
Port Height2 in (50.8 mm)
Basic Operating Rpm RangeIdle-5,500
Washers IncludedYes
Thread Size (In.)5/16-18
Fastener Yield Strength (Psi)170,000
Rpm RangeIdle-5500
Fastener StyleBolt
Bore (Mm)104.775
Engine Block StyleStock/OEM standard deck
Water Crossover StyleOpen
UsageStreet/Hi-Performance
Lock WireNo
PositionN/A
Underhead Length3.125 in (79.4 mm)
QuantitySold as a set
Port Width1.08 in (27.4 mm)
Fastener FinishZinc
Cylinder Head TypeGM Vortec/Edelbrock E-TEC
MaterialComposite
Fastener MaterialSteel
Undercut StudYes
Compressed Volume (Cc)8.59
Thickness0.12 in (3 mm)
EgrWithout EGR
Gasket MaterialGraphite
Cut To FitNo
Head StyleHex
Compressed Thickness0.039 in (0.991 mm)
Intake Manifold Height4.67 in (118.618 mm)
Bore4.125 in (104.775 mm)
Package Qty1
Package TypeEA
