Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

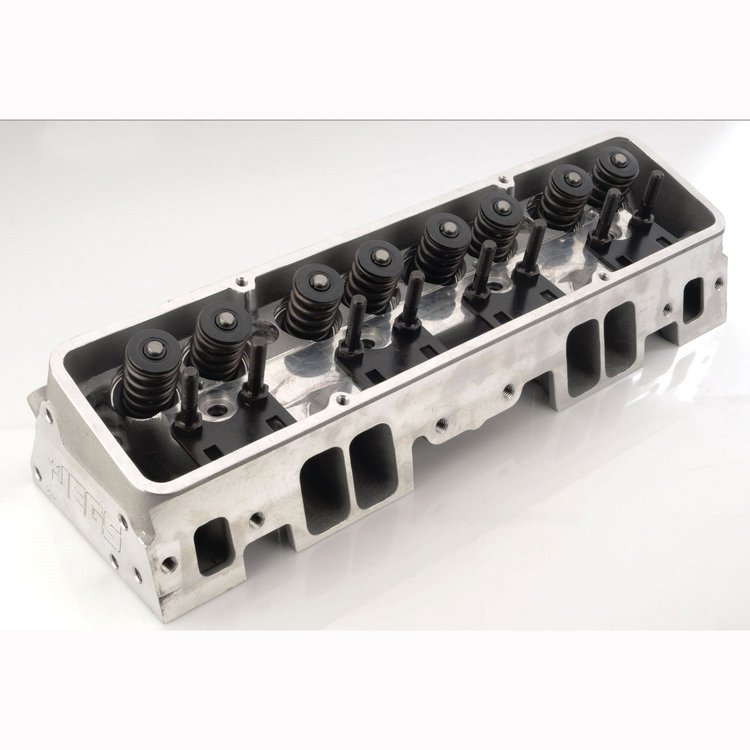

195cc Intake Runner
- Cylinder Head
- Small Block Chevy
- 195cc Intake Ports
- 64cc Combustion Chambers
- 2.020" Int./1.600" Exh. Valves

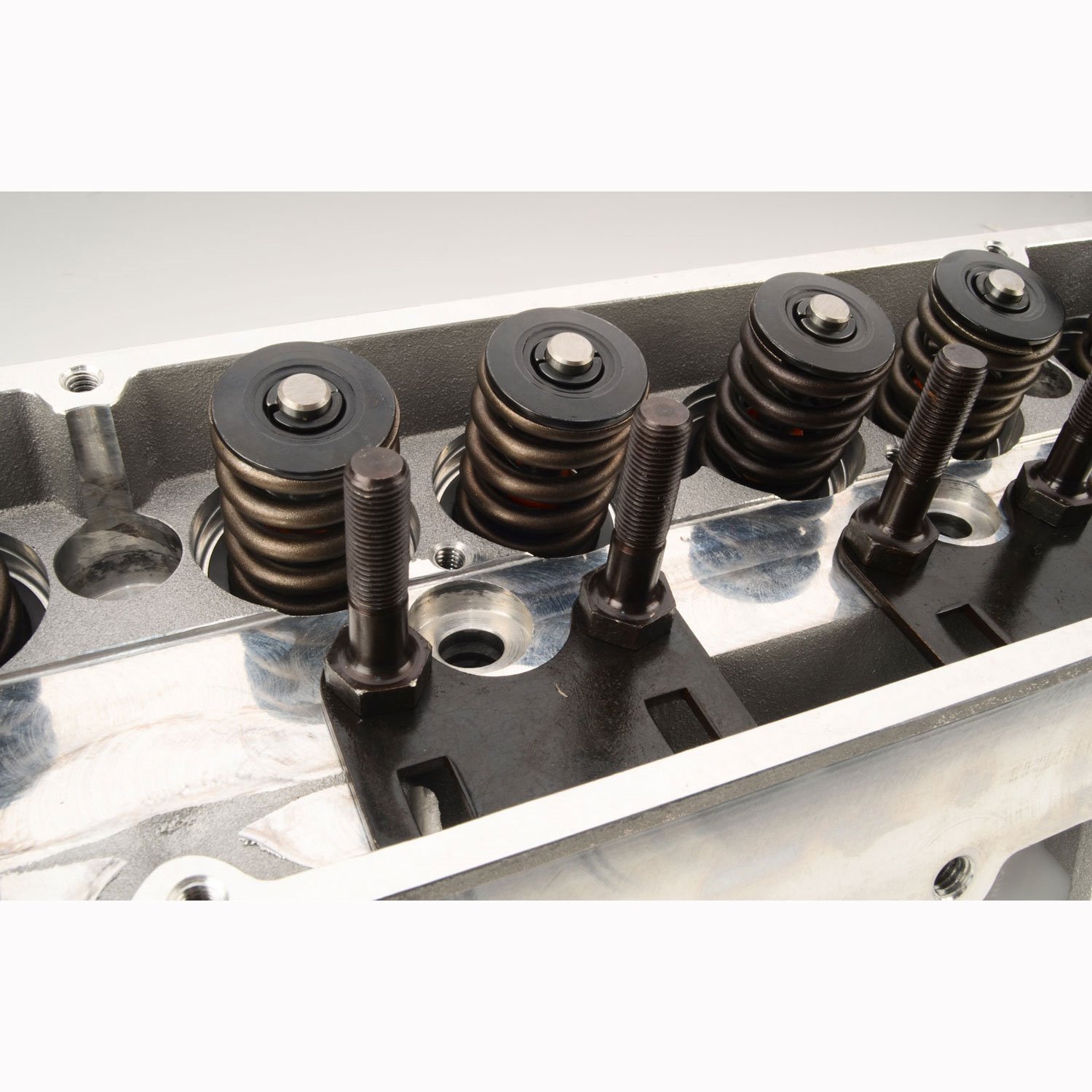

- 1.440" Valve Springs, .600" Max Lift
- Hydraulic Roller/Mechanical Flat Tappet Cams
- Straight Plug
- Sold 1/pkg
Material Casting A356-A Virgin Grade, Heat Treated to T-6 Valve Guides Manganese Bronze Valve Seats Alloy, For use with Unleaded Gasoline Valve Train Rocker Stud Size 3/8"-24 Guide Plates 5/16" Flat Pushrods 5/16" Hardened, Must Check Length Spring Retainers Chrome Moly Steel (7 Degree) Single / Dual Valve Locks 7 Degree (HD) Spring Locator I.D. Locator - 1.490" x 0.060" Valve Springs Specifications Pressure Spring O.D. Type Max Lift Coil Bind Seat Load Open Load 1.250" Single 0.525" 1.160" 100# @ 1.775" 320# @ 1.200" 1.440" Dual 0.600" 1.125" 135# @ 1.800" 340# @ 1.200" Accessories Spark Plugs 14mm x 3/4" Reach - Gasket Seat - 5/8" Hex Head Bolts JEGS 555-83400 or equivalent Head Studs Standard SB-Chevy Stud Girdle JEGS 555-20510 or equivalent Rocker Arms Standard SB-Chevy for 3/8"-24 Stud Head Gasket JEGS 555-210041 or equivalent Accessory Bolt Locations Stock Placement Flow Specifications Flow Intake Exhaust Port Volume 195cc 85cc Valve Diameter 2.020"
(Stainless Steel)1.600"
(Stainless Steel)Valve Length 4.910" 4.910" Valve Stem Diameter 11/32" 11/32" Valve Stem Seal Diameter 0.530" (PTFE) 0.530" (PTFE) Port Dimension 2.150"H x 1.300"W 1.530"H x 1.545"W (D-Shape) Flow Rate 274 CFM @ 0.600" Lift (28" H20) 213 CFM @ 0.600" Lift (28" H20) Gasket JEGS 555-210000
or equivalentJEGS 555-210052
or equivalentTorque Specification Rocker Studs 45 ft/lbs. Manifold Bolts 35 ft/lbs. Head Bolts or Studs Per Manufacturers Specifications
Part TypeCylinder Head
BrandJEGS
Package Height8.1
Package Width9.3
Package Length21.1
Weight28.8 PG
Part CategoryPerformance Parts
Spark Plug StyleStraight
Guideplate Pushrod Size0.313 in (7.95 mm)
Rocker Arm Nut Thread Size (In.)3/8"-24
MaterialAluminum
Intake Valve Diameter2.02 in (51.308 mm)
Exhaust Runner Volume (Cc)85
Engine Make/SizeChevy Small Block (262-400)
Guideplates IncludedYes
Outside Diameter Of Outer Spring1.44 in (36.6 mm)
Combustion Chamber Volume (Cc)64
Rocker Arm Studs IncludedYes
Cylinder Head StyleAssembled
Maximum Valve Lift0.6 in (15.24 mm)
Intake Runner Volume (Cc)195
Number Of Springs Per ValveDual
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number514032
Package Qty1
Package TypeEA
