Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

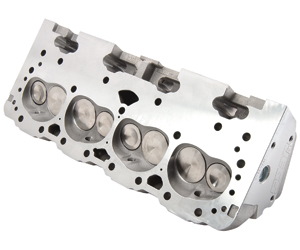

High-Flow 197 Aluminum Cylinder Heads - 197cc Intake Runners, 64cc Combustion Chambers
- SB-Chevy High-Flow 197 Head
- 2.055'' Int/1.60'' Exh Valves
- 1.440'' Springs, .680'' Max Lift Soild/Flat Tappet, Hydraulic Roller Cams
- Straight Plug
- Sold as Each
- Factory Remanufactured
- 1 Available at This Price, Please Call Before Ordering
JEGS Cylinder Head SpecificationsPart # 51441 23 degree valve angle, straight plug design, SB-Chevrolet
Materials
- Casting: A356-A Virgin Grade, Heat Treated to T-6
- Valve Guides: Manganese Bronze
- Valve Seats: Alloy, For use with Unleaded Gasoline
- Combustion Chamber: 64cc
Intake
- Port Volume: 197cc
- Valve Diameter: 2.055' Stainless Steel #555-20561
- Valve Length: 4.910'
- Valve Stem Diameter: 11/32'
- Valve Stem Seal Diameter: 531' PTFE
- Port Dimension: 1.300' x 2.050'
- Flow: 259 cfm @ .700' lift 28' of water
- Gasket: JEGS # 555-210001
Exhaust
- Valve Diameter: 1.600' Stainless Steel, #555-20566
- Valve Length: 4.910'
- Valve Stem Diameter: 11/32'
- Valve Stem Seal Diameter: .531', PTFE
- Port Dimension: 1.490' x 1.340'
- Flow: 203cfm @ .700' lift 28' of water
- Gasket: JEGS # 555-210050
Valve Train
- Stud Size: 7/16', 7/16' 14 x .875'(bottom)) 3/8' 24 x 1.950' (top), #555-20525
- Guide Plates: JEG?S # 555-20521 (5/16' pushrods)
- Retainers: Chrome Moly Steel 10 degree, #555-20530
- Valve Locks: 10 degree
- Pushrods: 5/16' Heat Treated, Must Check Length
- Springs: 1.440' .680' Maximum Lift, Solid/Flat Tappet & Hydraulic Roller, #555-20540
- Spring Cups: .570' Inside Diameter Locater, .060' thick #555-20555
Accessories
- Head Bolts: Stock Dimensions Recommend 12-Point Head
- Head Studs: Stock Dimensions Recommend 12-Point Head
- Spark Plug: 14mm, .460' reach 5/8' Hex with Tapered Seat
- Stud Girdle: Stud Location Custom JEG'S #555-20500
- Head Fastener Washers: Use Quality Hardened Washers
- Accessory Bolt Locations: Stock Placement
Torque Specifications
- Rocker Studs: 45 ft/lbs.
- Manifold Bolts: 35 ft/lbs.
- Head Fasteners: See Manufacturers Specifications
BrandJEGS
Package Height6.3
Package Width9.9
Package Length22.2
Weight29.8 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
