Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

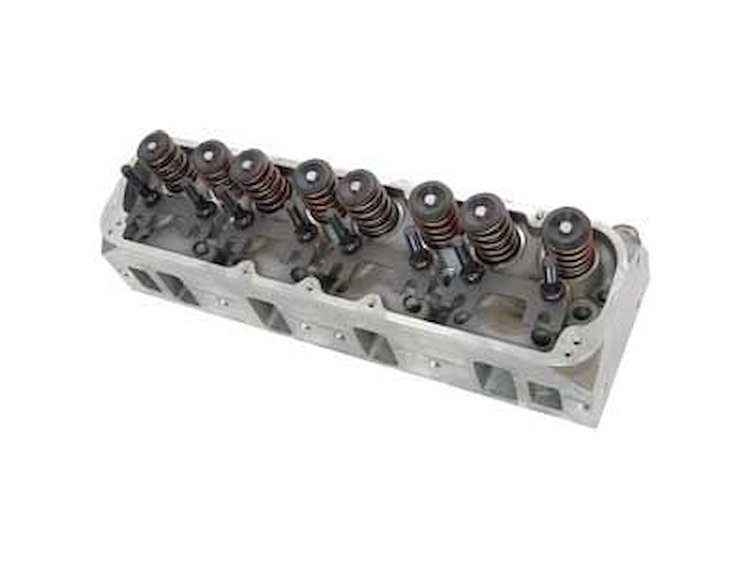

Jeg's/Kaase Aluminum Heads
302/351W Aluminum Cylinder Head2.10'' Int/1.60'' Exh Valves 1.460'' Springs .610'' Max Lift, Hydraulic Roller Cams Complete Assembly, Sold as Each 1 available at this price, please call before ordering
JEGS/Jon Kaase Cylinder Head Specifications
Part # 51500, SB-Ford Casting: A356-A Virgin Grade, Heat Treated to T-6 Valve Guides: AMCO 45 Valve Seats: Alloy, For use with Unleaded Gasoline Combustion Chamber: 60cc Port Volume: 247cc Valve Diameter: 2.100' Stainless Steel # 555-20572 Valve Length: 5.350' Valve Stem Diameter: 11/32' Valve Stem Seal Diameter: .531' PTFE Port Dimension: 2.125' x 1.300' Flow Rate: 331 cfm @ .800' lift 28' of water Gasket Fel-Pro # 375-1262 or Mr.Gasket # 720-5832 Valve Diameter: 1.600' Stainless Steel, # 555-20576 Valve Length: 5.350' Valve Stem Diameter: 11/32' Valve Stem Seal Diameter: .531' PTFE Port Dimension: 1.375' x 1.375' Flow Rate: 210 cfm @ .800' lift 28' of water, Gasket Fel-Pro # 375-1486 or Mr. Gasket # 720-5929 Guide Plates: Custom Jeg?s # 555-20522 (3/8' pushrods) Pushrods: 3/8' Heat Treated, Must Check Length Retainers: Chrome Moly Steel 7 degree, Hydraulic Roller, # 270-99969-16 Spring Locator: .640' Inside Diameter locater, .060' thick, # 249-4785-16 Springs: 1.460' .610' Maximum Lift, Hydraulic Roller # 270-99893-16 Rocker Arm Studs, 7/16'-14 x 7/16'-20, ARP 070-200-7201 Valve Locks: 7 degree, Hydraulic Roller with # 270-99094-1 retainer. Accessory Bolt Locations: Stock Placement Head Bolts 302: Stock Dimensions, 070-154-3605 Head Bolts 351-W: Stock Dimensions, 070-154-3603 Head Fastener Washers: Quality Hardened Washers Head Gasket: Fel-Pro # 375-1011-2 or Mr. Gasket # 720-5751 Spark Plug: 14mm 3/4' reach 5/8' Hex with Washer Seat Stud Girdle: Stud Location Custom, Not Available Rocker Arms (7/16'): Small Block Ford, JEG'S #555-20133, Harland Sharp #851-4003-7, Crane #270-86757-16. Comp Cams rockers are too wide for this canted valve head. Spark Plug: 14mm 3/4' reach 5/8' Hex with Washer Seat Valve Cover: Custom Jeg?s # 555-50115 Valve Cover Gasket: Mr. Gasket # 720-596G Pistons: Custom pistons available through JE Pistons. Please contact Steve Davis @ 714-373-5530 ex. 308 or [email protected] for more info Head Fasteners: See Manufacturers Specifications, 302-70 ft lbs, 351-100 ft lbs Manifold Bolts: 25 ft/lbs. Rocker Studs: 60 ft/lbs.
JEGS/Jon Kaase Cylinder Head Specifications
Part # 51500, SB-Ford
Materials
Intake
Exhaust
Valve Train
- 302 Hydraulic Roller 7.100', # 555-20200
- 302 Solid Roller 7.750', # 555-20202
- 351 Hydraulic Roller 8.400',# 555-20204
- 351 Solid Roller 9.050', # 555-20206
Accessories
Torque Specifications
BrandJEGS
Package Height7.4
Package Width7.8
Package Length20.7
Weight33.8 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
