Harmonic Balancer/Damper for 1999-2006 GM Trucks [GM LS Engines 4.8L/5.3L/6.0L]
InfoVehicle Info Needed
JEGSPART NUMBER: 555-51614

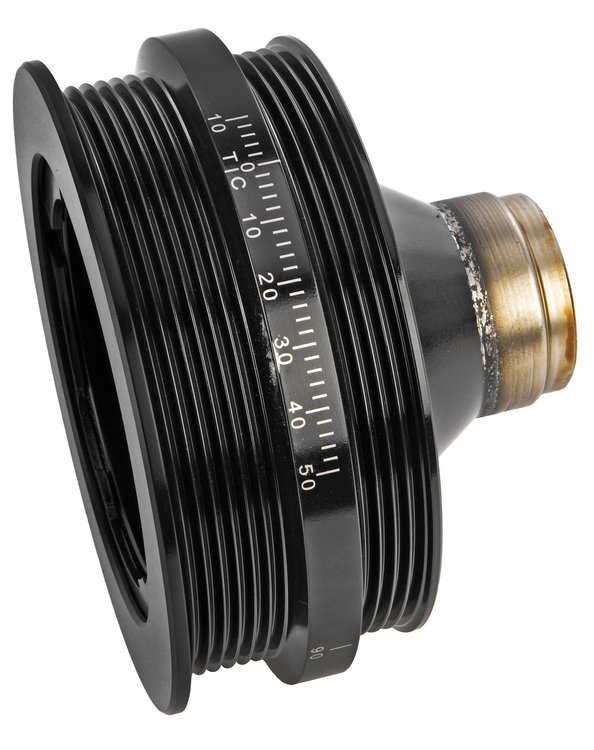

Harmonic Balancer/Damper for 1999-2006 GM Trucks [GM LS Engines 4.8L/5.3L/6.0L]

$22899$247.29You Save$18.30
More than 10 available
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

LS1 Harmonic Balancers/Dampers
Harmonic Balancer/Damper
  • 1999-2006 GM Trucks
  • GM LS Engines 4.8L/5.3L/6.0L
  • 25 Percent Underdrive Pulley
  • 5.630 in. Diameter
  • Sold Individually

    JEGS 555-51614 Harmonic Balancer/Damper Features:

    • Permanently etched timing marks every 2 degrees with additional marks at 90 degree increments
    • This pulley is machined for 3/16 in. woodruff key
    • This unit will require a special length belt and must be measured after all bracketry and accessories have been installed for proper fitment

    • Part TypeHarmonic Balancer
    BrandJEGS
    Package Height6.1
    Package Width9.7
    Package Length10.4
    Weight12.54 PG
    Part CategoryPerformance Parts
    Degree MarkingsYes
    Nose Od (In)2.13
    Harmonic Balancer ConstructionSteel
    Bolt Hole Count3
    Pulley Diameter5.63 in (143 mm)
    Engine BalanceInternal
    Overall Width4.53 in (115.1 mm)
    Degree Marking Range50 BTDC to 10 ATDC
    Harmonic Balancer MaterialSteel
    Crank Trigger/Exciter PlateNo
    Crank Bore1.48 in (37.592 mm)
    Part FitmentSemi Universal
    Ring Width (In)2.52
    Outside Diameter6.22 in (158 mm)
    Safety RatingSFI 18.1
    FinishBlack Painted
    Package Qty1
    Package TypeEA
