Harmonic Balancer Dodge Diesel 5.9L
InfoVehicle Info Needed
JEGSPART NUMBER: 555-51692

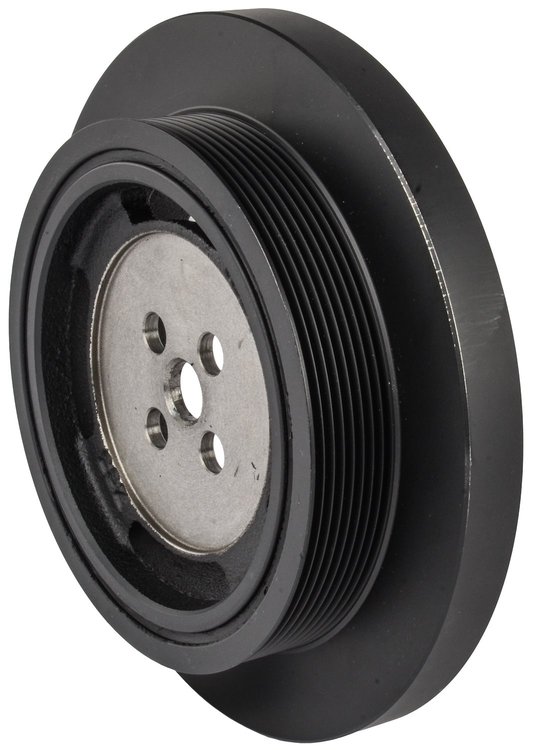

Harmonic Balancer Dodge Diesel 5.9L

$18399$202.99You Save$19.00
6 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Heavy-Duty Nitrile Gloves [7 mils Thick, X-Large]

JEGS

Heavy-Duty Nitrile Gloves [7 mils Thick, X-Large]

Part Number : 555-1125
$1999$21.99
You Save$2.00
Adjustable Timing Pointer Small Block Chevy for 6-1/4 in. Balancer

JEGS

Adjustable Timing Pointer Small Block Chevy for 6-1/4 in. Balancer

Part Number : 555-51282
$2899$33.99
You Save$5.00

Dodge Harmonic Balancers
Harmonic Balancer
  • Dodge Diesel 5.9L
  • 9.25"
  • Internal Balance
  • Exceeds OE Specifications

    Fits: Ram 2500 & 3500 - 1998 to 2002


    Features:

    • Perform Up to 6500 RPM
    • Hubs are Made from Spherical Graphite
    • Pressure Bonded Inner Hub and Outer Ring
    • Easy-to-See Top Dead Center Mark
      Specifications:
    • Overall OD (In): 9.25
    • Nose OD (In): 0
    • Overall Width (In): 2.10
    • Crank Bore (In): 0
    • Ring Width (In): 2.10
    • Bolt Holes: 4
    • Counterweight Balance: Neutral, no counterweight
    • Crank Trigger/Exciter Plate: No
    • Timing Marks: No
    • Number of Integrated Pulleys: 1 Serpentine
    • Pulley Grooves: 8
    • Pulley OD 1 (In): 6.81
    • Note: No crank sensor provisions
  • Far from just a replacement balancer!

    JEGS Performance Harmonic Balancers are designed for the high heat and high load of everyday driving applications. They far exceed OE specifications and perform up to 6500 RPM. Ideal for street rods, Pro Touring, daily drivers, marine engines, and other applications that require an OE-type balancer. Hubs are made from spherical graphite (also known as "near steel") and feature a pressure bonded inner hub and outer ring for superior strength with an easy-to-see top dead center mark.

    Show More

    Features:

    • Perform Up to 6500 RPM
    • Hubs are Made from Spherical Graphite
    • Pressure Bonded Inner Hub and Outer Ring
    • Easy-to-See Top Dead Center Mark
    Part TypeHarmonic Balancer
    Product LineJEGS Performance Harmonic Balancers
    BrandJEGS
    Package Height5.7
    Package Width9.9
    Package Length10.4
    Weight15.05 PG
    Part CategoryReplacement Parts
    Package Qty1
    Package TypeEA
