![Ready Fit Aluminum Radiator Fits Select 1968-1981 GM Passenger Cars [Small Block Chevy, Automatic Transmission]](https://www.jegs.com/images/mini_750/500/555/555-51901.jpg)
Vehicle Info NeededJEGSPART NUMBER: 555-51901

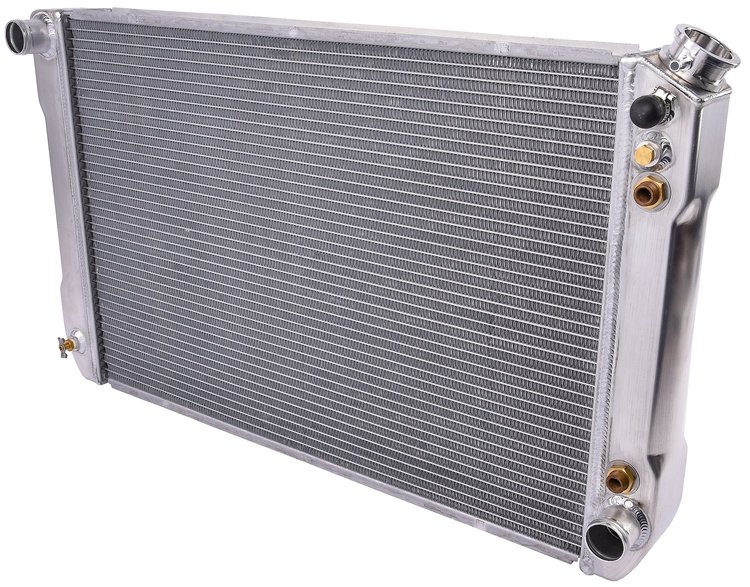

Ready Fit Aluminum Radiator Fits Select 1968-1981 GM Passenger Cars [Small Block Chevy, Automatic Transmission]
$35999$427.99You Save$68.00
5 left in stock
Ships Tomorrow
Lowest Price GuaranteeGM
Ready Fit Aluminum Radiator1968-1977 Chevy Chevelle 1970-1981 Chevy Camaro & Pontiac Firebird 1970-1974 Chevy Nova Small Block Chevy Automatic Transmission 25.375 in. x 18.625 in. Overall 19.375 in. x 17.125 in. Core
JEGS 555-51901 Ready-Fit Aluminum Radiator Features:

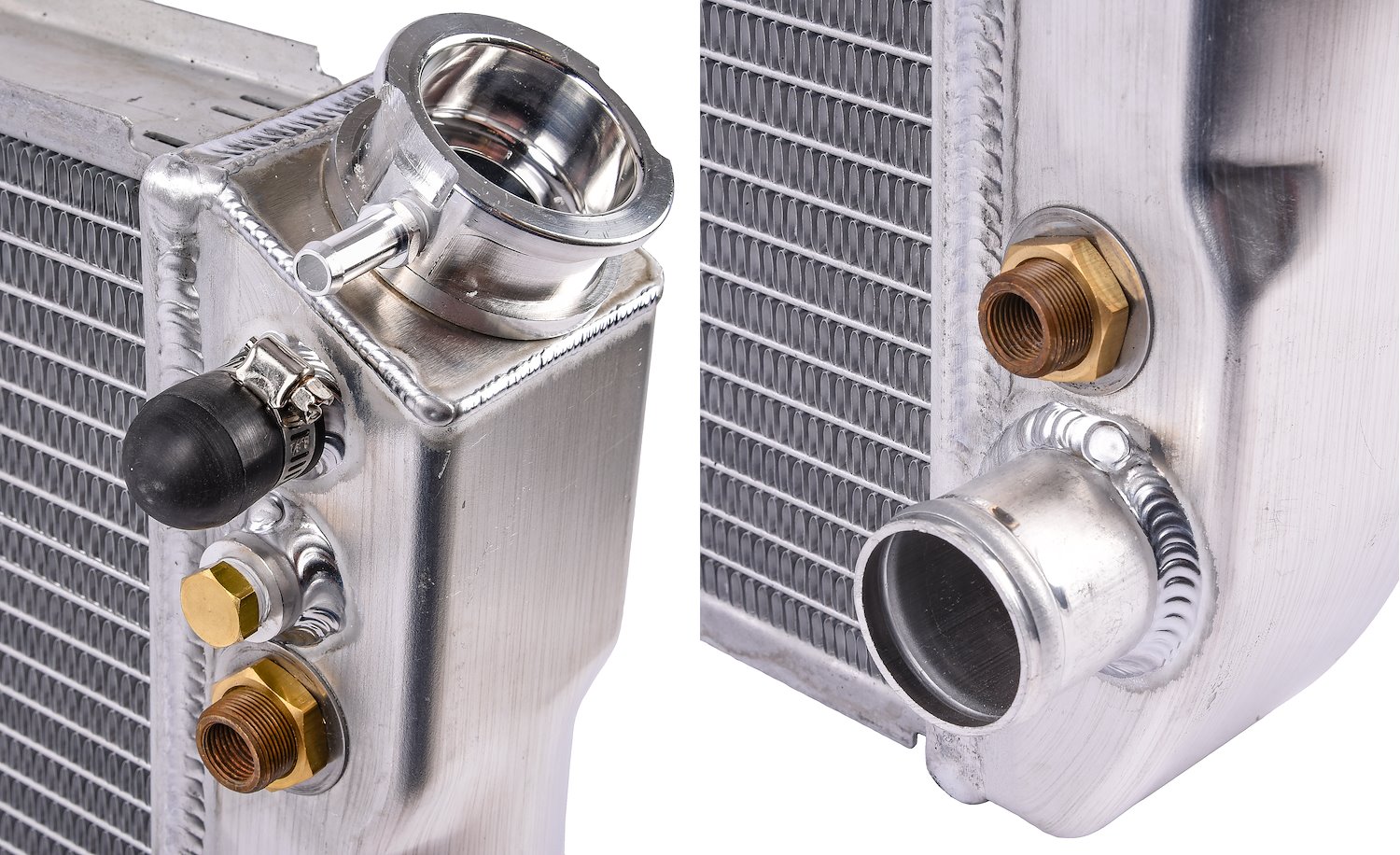

- Top driver's side = 1 1/2 in. Inlet
- Bottom passenger's side = 1 1/2 in. Outlet
- Uses 5/16 in. inverted flare tube OE fittings for transmission cooler (1/2 in.-20 flare cone)
- Replaces Northern Part Number 205028
Aluminum Leak-Free Radiators that Provide Peak Efficiency and Performance
JEGS Ready Fit Performance Aluminum Radiators are manufactured from light-weight all-aluminum construction for strength and durability. These Radiators are assembled with fully TIG-welded billet filler necks and mechanically formed tanks, along with two rows of 1-inch noculoc-brazed tubes and maximized fin counts that provide a leak-free cooling system with peak efficiency and performance.
JEGS also offers other Reproduction Style Aluminum Radiators for Classic Cars, Classic Trucks, Street Rods. and Engine Conversions, For more information, CLICK on the Links Below.
Part TypeRadiator
Product LineJEGS Ready Fit Aluminum Radiators
BrandJEGS
Package Height8.75
Package Width21.5
Package Length30.0
Weight16.6 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height18.625 in (473.1 mm)
Outlet Size1.5 in (38.1 mm)
Inlet LocationUpper driver side
MaterialAluminum
Inlet Size (In.)1.5
Core Height19.375 in (492.125 mm)
Core Thickness2 in (50.8 mm)
Core Width17.125 in (434.975 mm)
Row Quantity2
Outlet LocationLower passenger side
Overall Width25.375 in (644.5 mm)
Tube Size1 in (25.4 mm)
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
FinishPolished
Radiator StyleCrossflow
Vendor Part Number205028
Package Qty1
Package TypeEA
